Installation [03/2019 - ]: Procedure

  1. INSTALL ACTUATOR WITH BRACKET ASSEMBLY
    1. Install the actuator with bracket assembly.
    2. Tighten the bolts.

      Torque: 8.5 N.m (87 kgf/cm, 75 in.lbf)

    3. Connect connectors and lock.

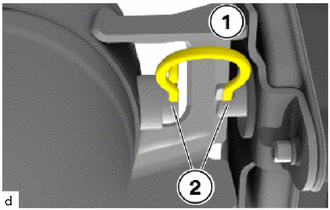

    4. Make sure that the wire spring clip (1) is correctly positioned in the guides (2).
      GTY946424Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL REAR UNDERBODY PROTECTOR RH

    See step  3

  3. INSPECT FOR EXHAUST GAS LEAK

    See step  7
