Components [03/2019 - ]

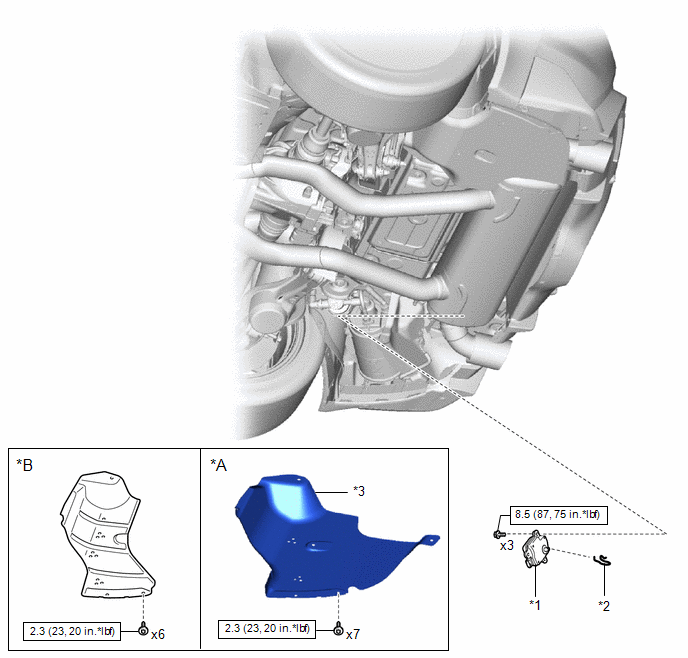

Fig 1: Exhaust Pipe Gas Control Actuator Sub-Assembly Replacement Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	for Type A	*B	for Type B
*1	ACTUATOR WITH BRACKET ASSEMBLY	*2	WIRE SPRING CLIP
*3	REAR UNDERBODY PROTECTOR RH	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-
