Removal [03/2020 - ]: Procedure

  1. REMOVE AIR CLEANER ASSEMBLY

    Refer to REMOVAL [03/2019 - ]

  2. REMOVE NO. 1 EXHAUST MANIFOLD HEAT INSULATOR
    1. Loosen screws (1).
      GTY976877Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Loosen screw (2).
    3. Feed out and remove the No. 1 exhaust manifold heat Insulator (3).

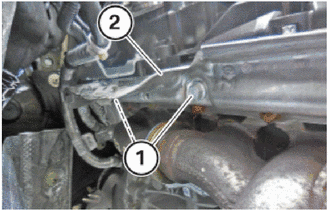

    4. Loosen screws (1).
      GTY976875Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Feed out and remove the No. 1 exhaust manifold heat Insulator (2).
