Removal [03/2019 - 03/2020]: Procedure

  1. REMOVE AIR CLEANER ASSEMBLY

    Refer to REMOVAL [03/2019 - ]

  2. REMOVE NO. 1 EXHAUST MANIFOLD HEAT INSULATOR
    WARNING:
    • Hot surfaces.

      Risk of burning!

      • Perform all work only on components that have cooled down.

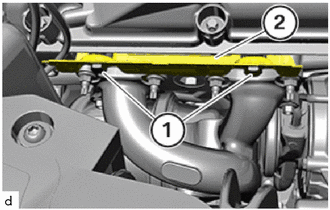

    1. Loosen the bolts (1).
      GTY945877Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the No. 1 exhaust manifold heat Insulator (2).
