Components [03/2019 - 03/2020]

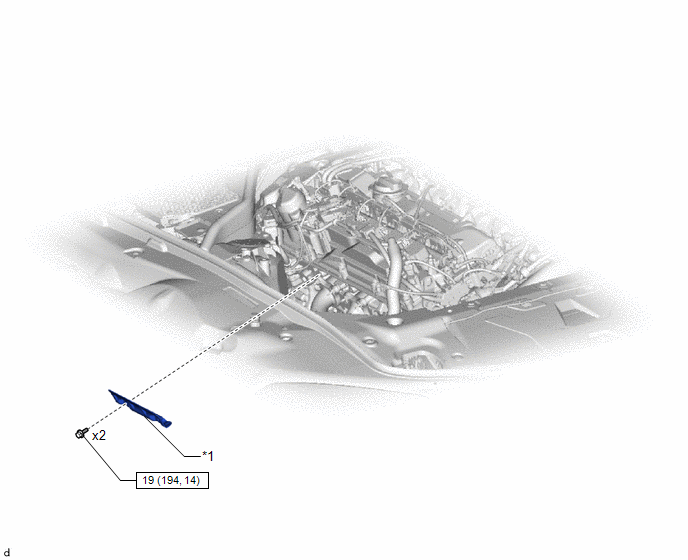

Fig 1: Exhaust Manifold Heat Insulator Replacement Components With Torque Specifications [03/2019 - 03/2020]
GTY878371Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 NO. 1 EXHAUST MANIFOLD HEAT INSULATOR - -
N.m (kgf/cm, ft.lbf): Specified torque - -
