Parts Location [08/2019 - ]: Illustration

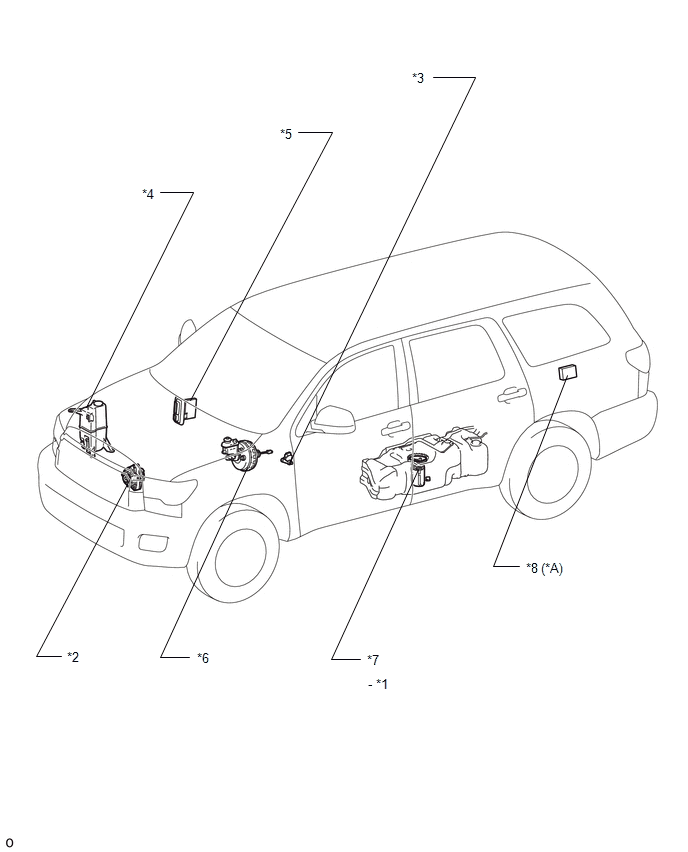

| *A | w/ Air Suspension | - | - |
| *1 | FUEL SENDER GAUGE ASSEMBLY | *2 | GENERATOR ASSEMBLY |
| *3 | PARK/NEUTRAL POSITION SWITCH ASSEMBLY | *4 | WINDSHIELD WASHER JAR AND TANK - WASHER FLUID LEVEL WARNING SWITCH |
| *5 | ECM | *6 | BRAKE MASTER CYLINDER SUB-ASSEMBLY - BRAKE FLUID LEVEL WARNING SWITCH |
| *7 | FUEL SECTION WITH PUMP AND GAUGE TUBE | *8 | SUSPENSION CONTROL ECU |

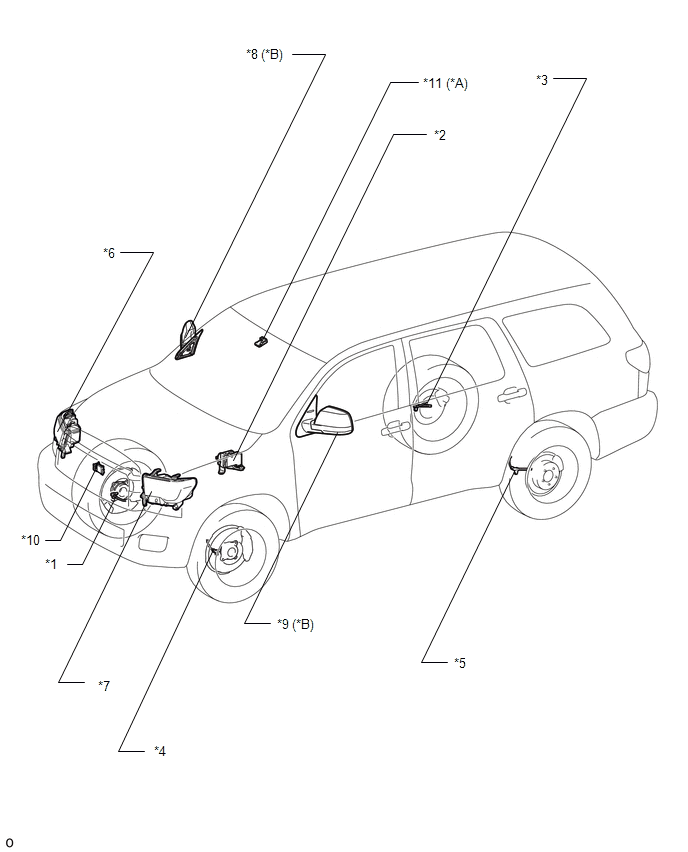

| *A | w/ Dynamic Radar Cruise Control System | *B | w/ Side Turn Signal Light |
| *1 | FRONT SPEED SENSOR RH | *2 | VSC ACTUATOR ASSEMBLY - SKID CONTROL ECU |
| *3 | REAR SPEED SENSOR RH | *4 | FRONT SPEED SENSOR LH |
| *5 | REAR SPEED SENSOR LH | *6 | HEADLIGHT ASSEMBLY RH |
| *7 | HEADLIGHT ASSEMBLY LH | *8 | OUTER REAR VIEW MIRROR ASSEMBLY RH - OUTER REAR VIEW MIRROR SUB-ASSEMBLY RH |
| *9 | OUTER REAR VIEW MIRROR ASSEMBLY LH - OUTER REAR VIEW MIRROR SUB-ASSEMBLY LH |
*10 | MILLIMETER WAVE RADAR SENSOR ASSEMBLY |
| *11 | FORWARD RECOGNITION CAMERA | - | - |
| *A | w/ Power Back Door System | *B | w/o Power Back Door System |
| *C | w/ Blind Spot Monitor System | - | - |
| *1 | BACK DOOR LOCK ASSEMBLY | *2 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY LH |
| *3 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY RH | *4 | REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY LH |
| *5 | REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY RH | *6 | BLIND SPOT MONITOR SENSOR LH |
| *7 | BLIND SPOT MONITOR SENSOR RH | *8 | BACK DOOR COURTESY SWITCH |
| *9 | REAR COMBINATION LIGHT ASSEMBLY RH - REAR TURN SIGNAL LIGHT SOCKET |
*10 | REAR COMBINATION LIGHT ASSEMBLY LH - REAR TURN SIGNAL LIGHT SOCKET |
| *A | for 4WD | *B | w/ Audio and Visual System |
| *1 | PARKING BRAKE SWITCH ASSEMBLY | *2 | 4WD CONTROL ECU |
| *3 | TIRE PRESSURE WARNING ECU | *4 | RADIO AND DISPLAY RECEIVER ASSEMBLY |
| *5 | TURN SIGNAL FLASHER ASSEMBLY | *6 | COMBINATION METER ASSEMBLY |
| *7 | POWER STEERING ECU ASSEMBLY | *8 | TRANSMISSION FLOOR SHIFT ASSEMBLY - TRANSMISSION CONTROL SWITCH |

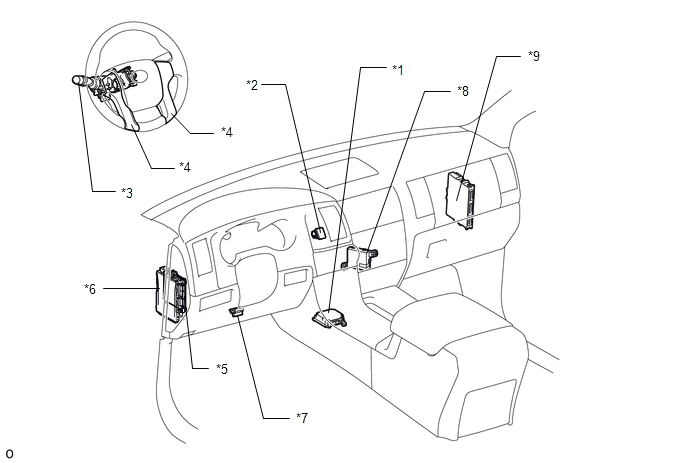

| *1 | AIRBAG SENSOR ASSEMBLY | *2 | HAZARD WARNING SWITCH ASSEMBLY |
| *3 | HEADLIGHT DIMMER SWITCH ASSEMBLY | *4 | STEERING PAD SWITCH ASSEMBLY |
| *5 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *6 | COWL SIDE JUNCTION BLOCK - ECU-DCC NO. 2 FUSE - METER-IG2 FUSE |
| *7 | DLC3 | *8 | AIR CONDITIONING AMPLIFIER ASSEMBLY |
| *9 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) | - | - |

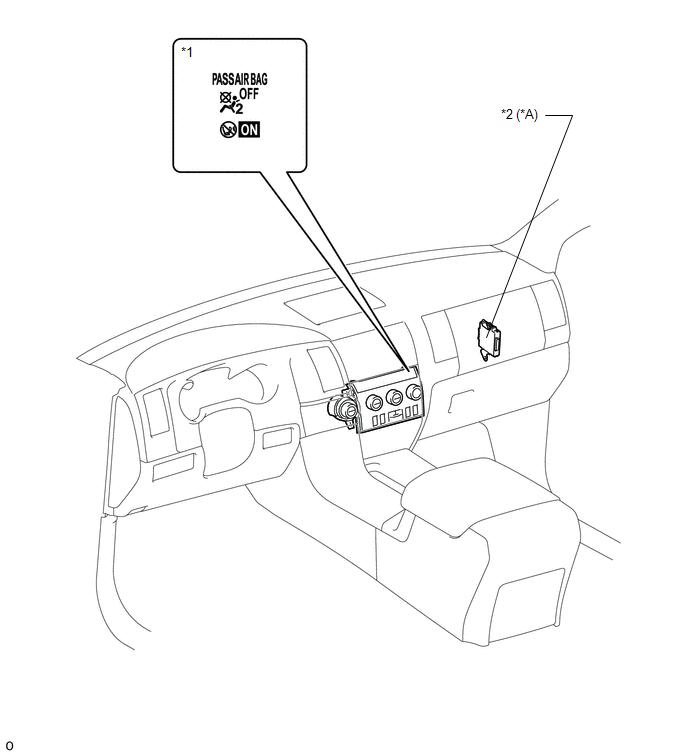

| *A | w/ Intuitive Parking Assist System | - | - |
| *1 | PASSENGER AIRBAG ON/OFF INDICATOR | *2 | CLEARANCE WARNING ECU ASSEMBLY |
