Parts Location [08/2015 - 08/2017]: Illustration

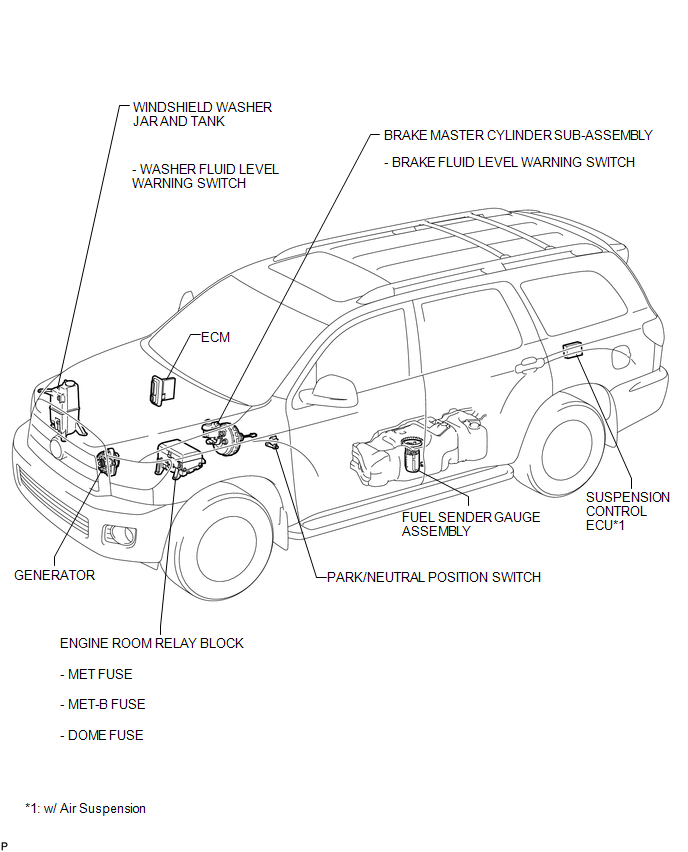

GTY569413Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

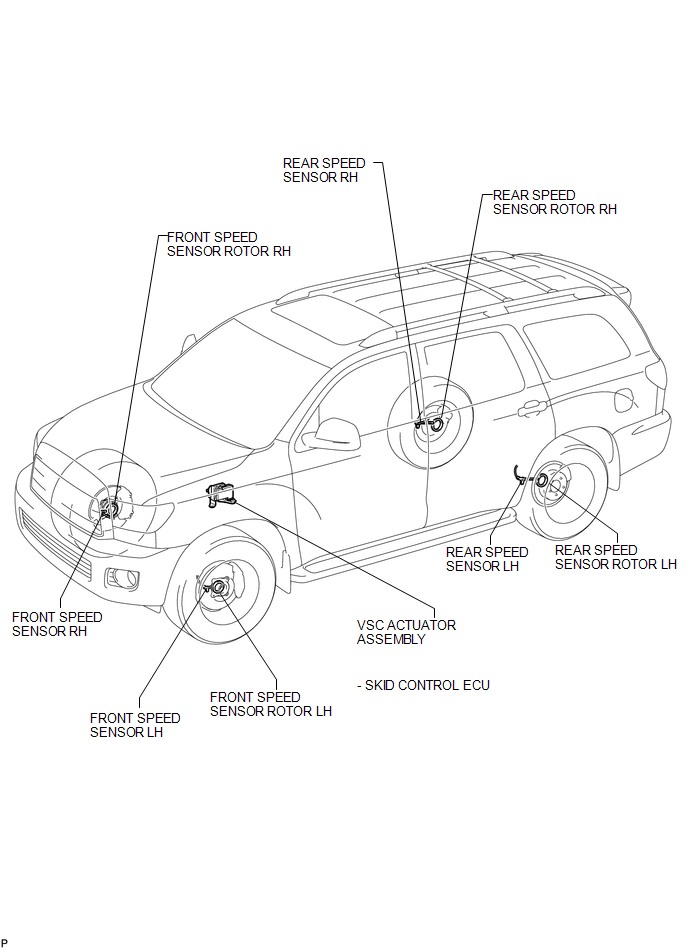

GTY224843Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

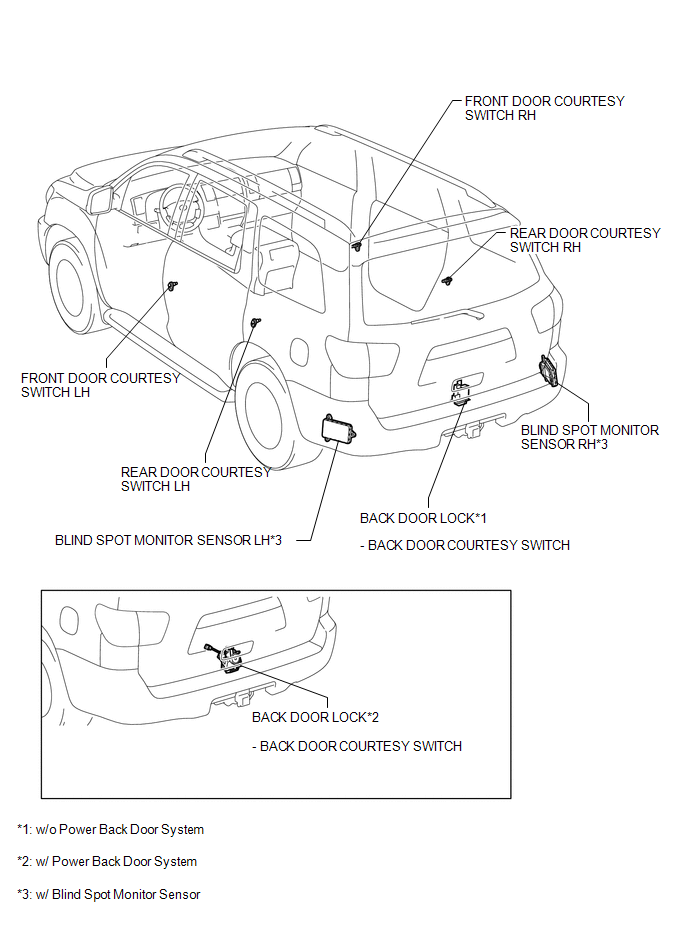

GTY593665Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

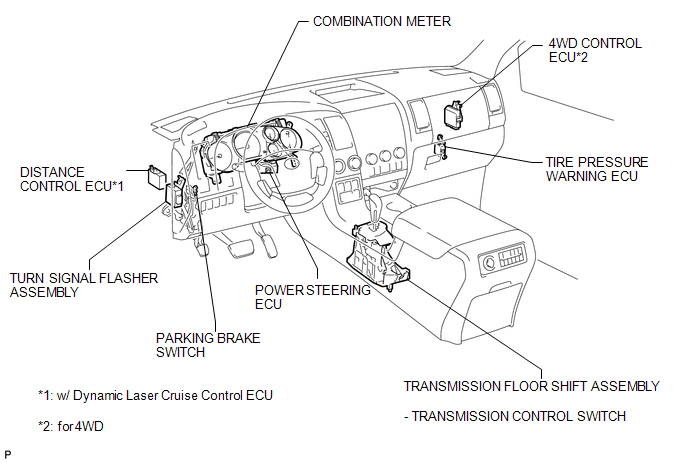

GTY551269Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

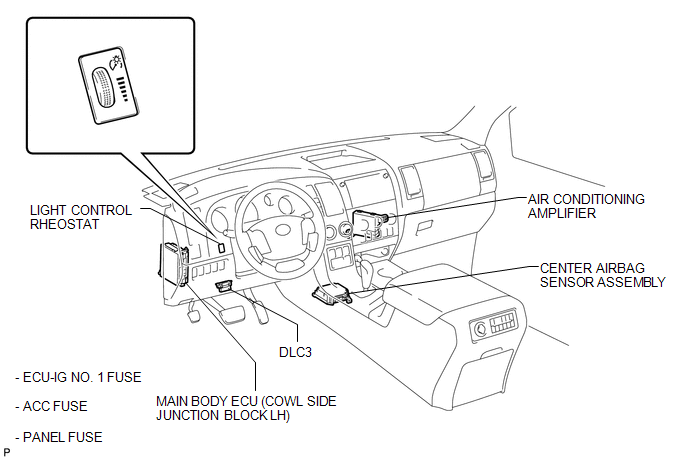

GTY541654Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

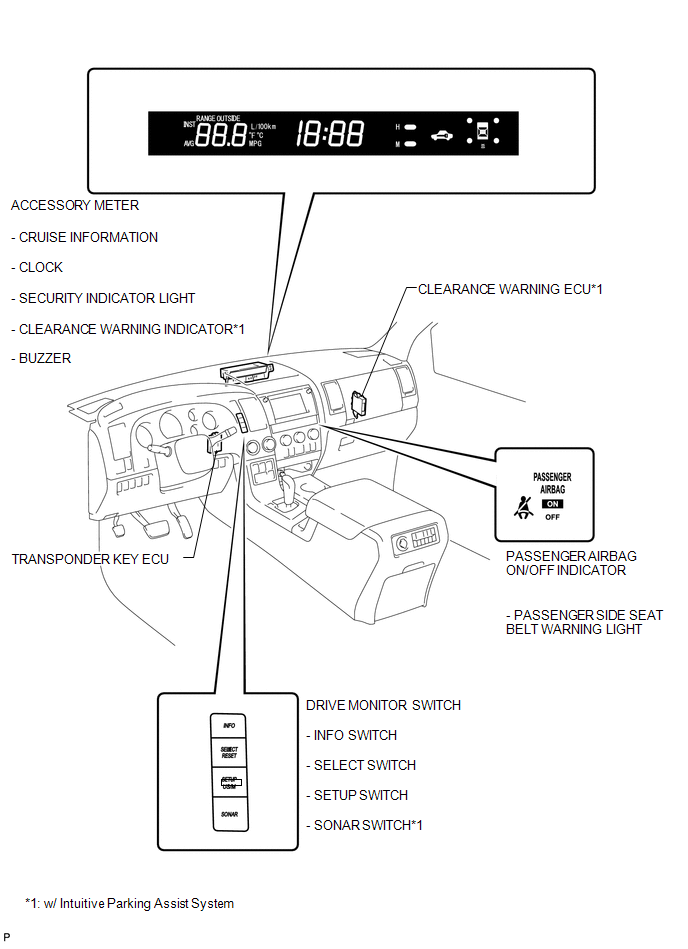

GTY565318Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

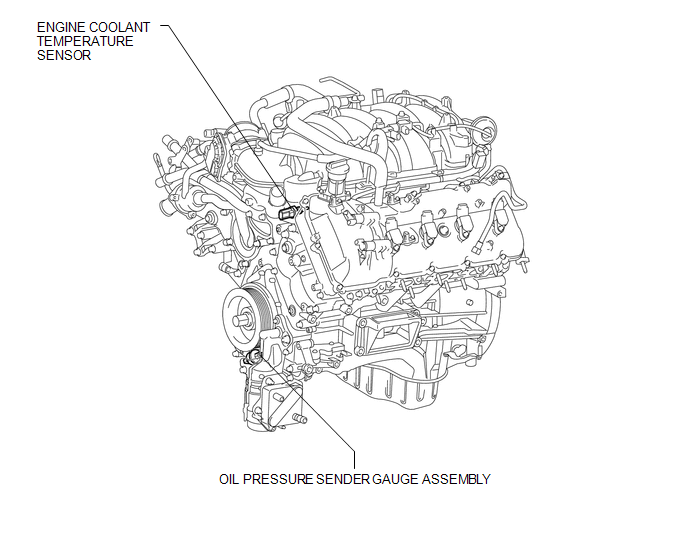

GTY575015Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
