Customize Parameters [08/2015 - 08/2017]: Procedure

CUSTOMIZE METER / GAUGE SYSTEM

Customizing with Techstream

NOTE:

When the customer requests a change in a function, first make sure that the function can be customized.
Be sure to make a note of the current settings before customizing.
When troubleshooting a function, first make sure that the function is set to the default setting.

Connect the Techstream to the DLC3.
Turn the ignition switch to ON.
Turn the Techstream ON.
Enter the following menus: Customize Setting / Warning

Select the setting by referring to the table below.

WARNING

Display (Item)	Default	Content	Setting
Key Remind Volume	Large	To change volume of key reminder buzzer	Large/Small/Medium
Key Remind Sound	Slow	To change frequency of key reminder buzzer	Normal/Slow/Fast
Driver Side Seatbelt Warning Buzzer	ON	To change setting of driver side seat belt warning buzzer	ON/OFF
Front Passenger Side Seatbelt Warning Buzzer	ON	To change setting of passenger side seat belt warning buzzer	ON/OFF

Customizing with multi-information display (w/ Multi-information Display)

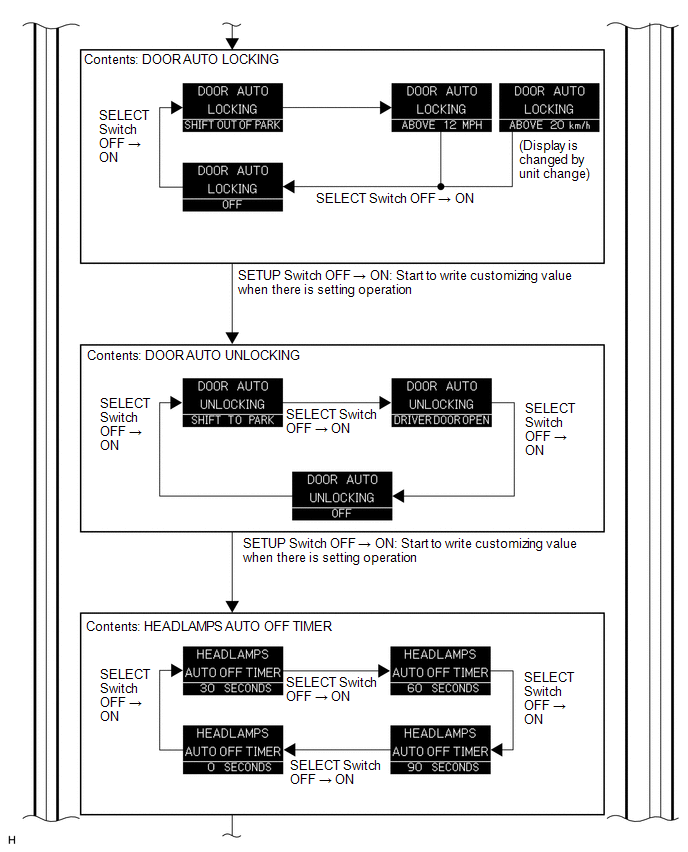

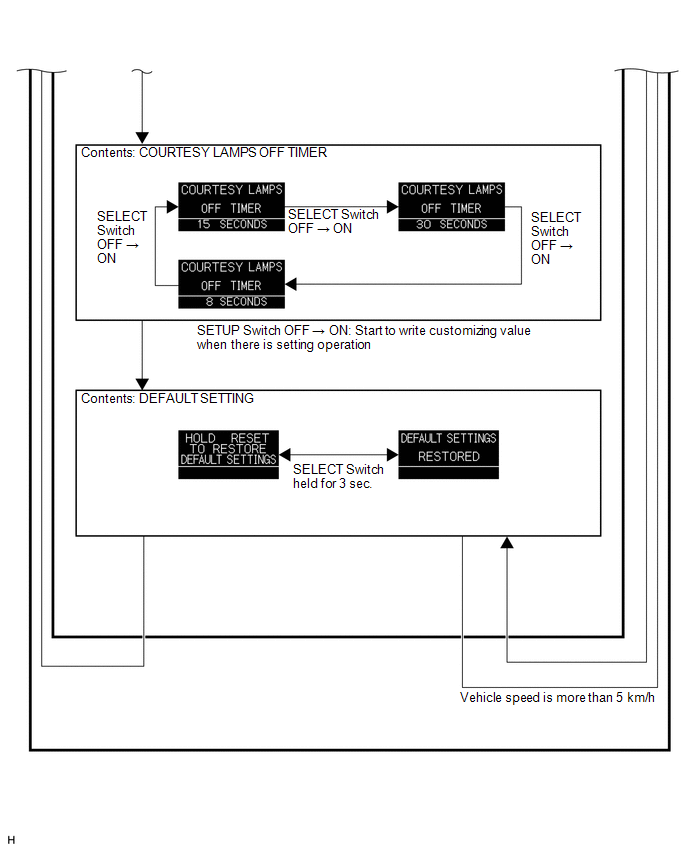

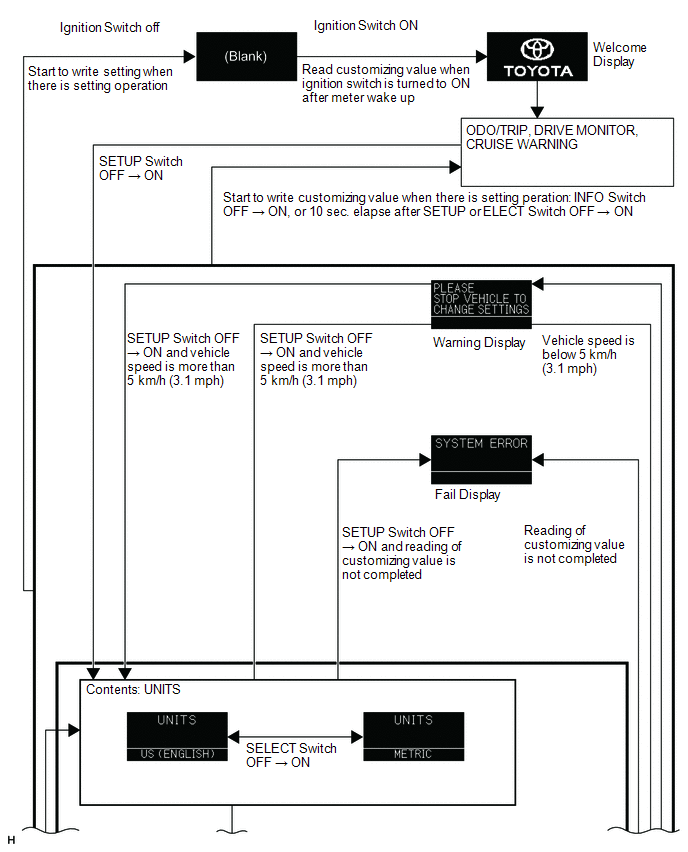

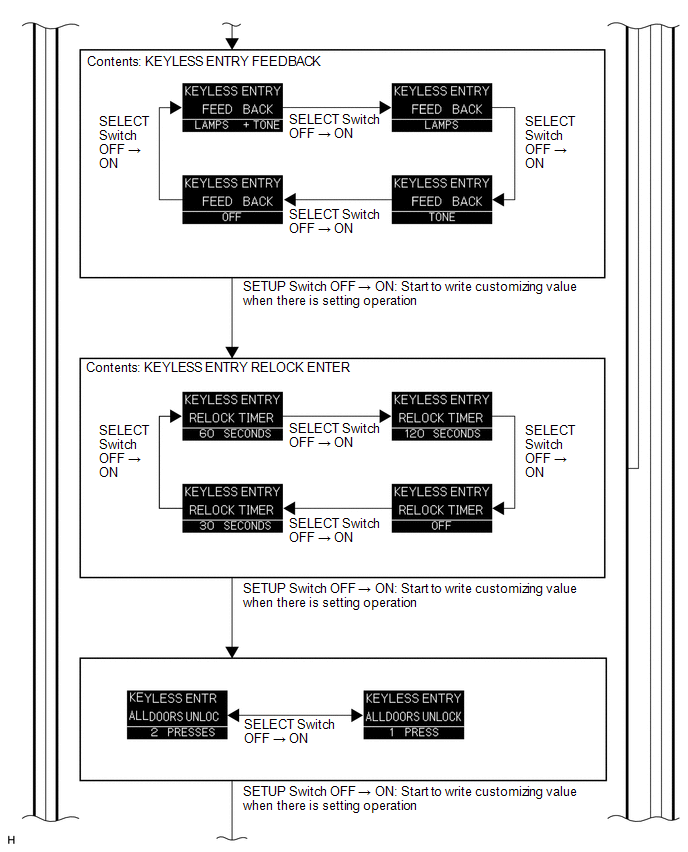

Using the SETUP switch and SELECT switch, the following functions can be customized through the multi-information display. Refer to the illustration below.

Unit setting
Wireless door lock control system (answer-back function, automatic lock function, 2-step unlock function)
Power door lock control system (automatic door lock function, automatic door unlock function)
Lighting system (auto light turn off function)
Default setting (customize setting cancel function)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

*: When setting change operation is performed by SELECT switch, writing of customized value must be performed.
