Removal [08/2015 - 08/2017]: Procedure

  1. REMOVE FRONT DOOR SCUFF PLATE LH

    Refer to PROCEDURE - Step 12

  2. REMOVE COWL SIDE TRIM BOARD LH

    Refer to PROCEDURE - Step 14

  3. REMOVE INSTRUMENT SIDE PANEL LH

    Refer to PROCEDURE - Step 15

  4. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 17

  5. REMOVE INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY

    Refer to PROCEDURE - Step 26

  6. REMOVE DRIVE MONITOR SWITCH

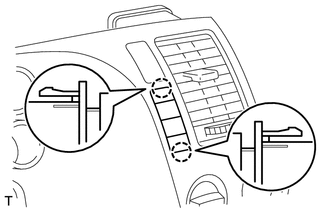

    1. Detach the 2 claws and remove the monitor switch.
      GTY583080Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
