Components [08/2019 - ]

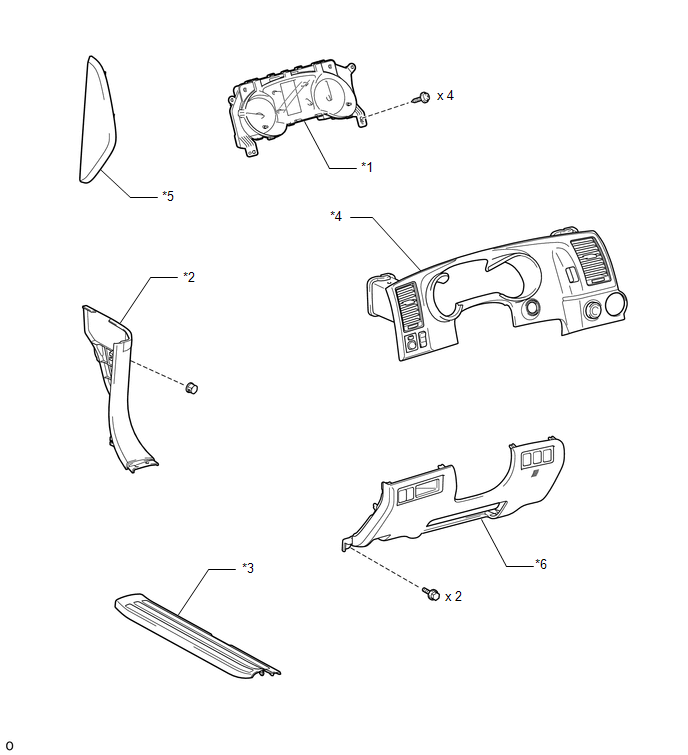

Fig 1: Combination Meter Replacement Components [08/2019 - ]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
COMBINATION METER ASSEMBLY
*2
COWL SIDE TRIM BOARD LH
*3
FRONT DOOR SCUFF PLATE LH
*4
INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY
*5
INSTRUMENT SIDE PANEL LH
*6
LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY LH
