Components [08/2017 - 08/2019]

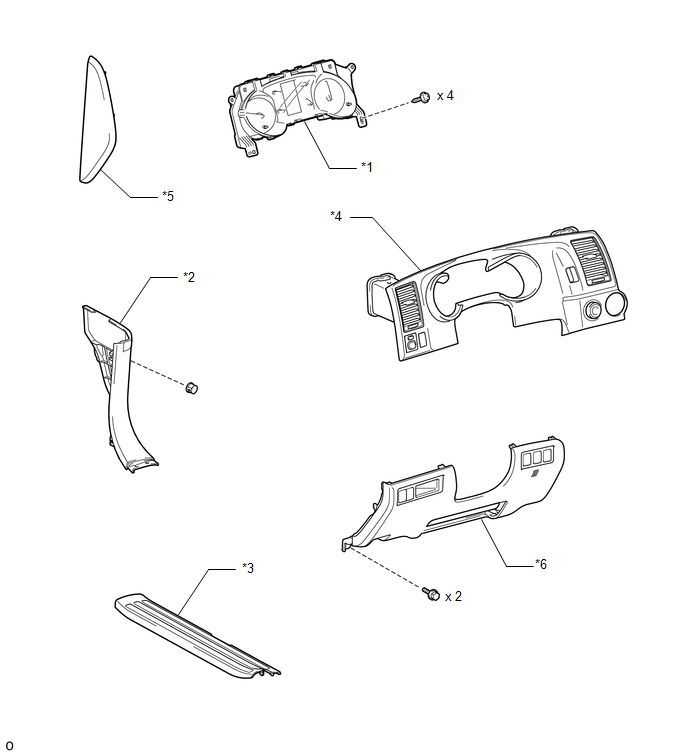

Fig 1: Combination Meter Replacement Components [08/2017 - 08/2019]
GTY745567Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 COMBINATION METER ASSEMBLY *2 COWL SIDE TRIM BOARD LH
*3 FRONT DOOR SCUFF PLATE LH *4 INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY
*5 INSTRUMENT SIDE PANEL LH *6 LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY LH
