Components [08/2015 - 08/2017]

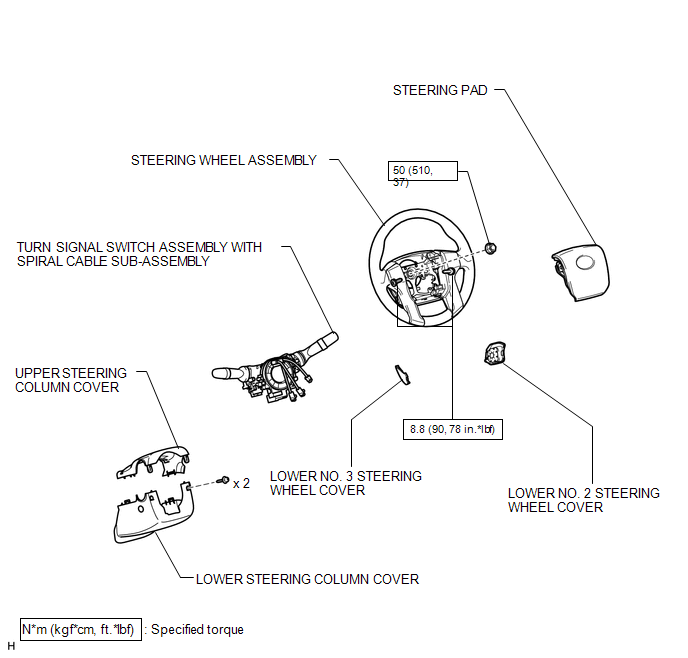

Fig 1: Accessory Meter Replacement Components With Torque Specifications [08/2015 - 08/2017] (1 Of 9)
GTY604388Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

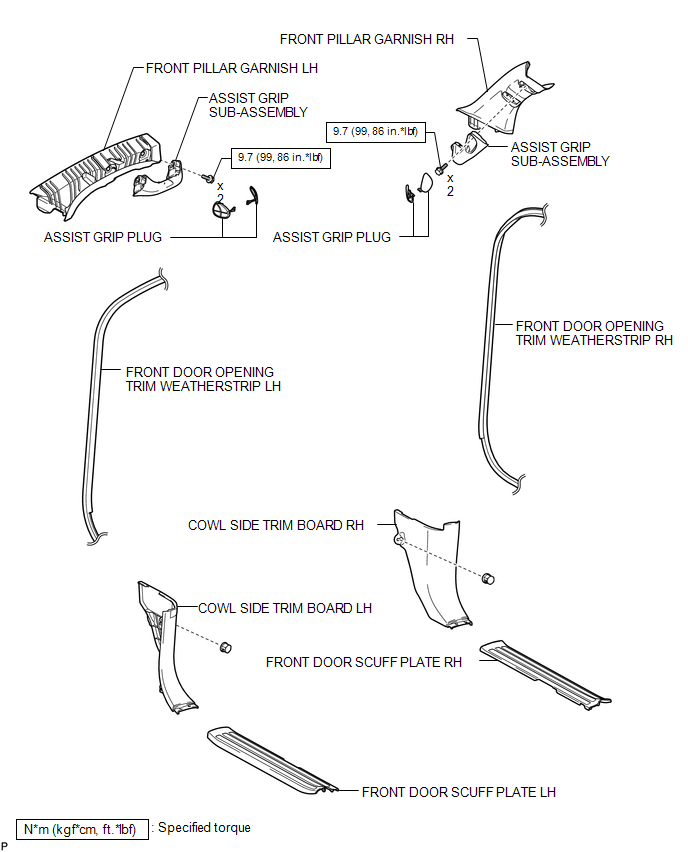

Fig 2: Accessory Meter Replacement Components With Torque Specifications [08/2015 - 08/2017] (2 Of 9)
GTY586871Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

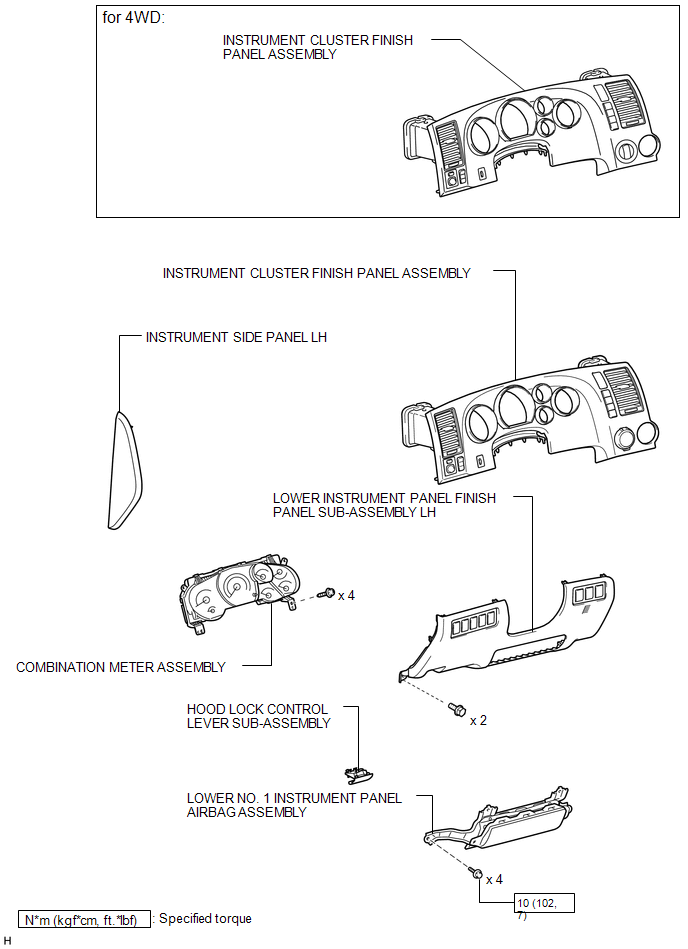

Fig 3: Accessory Meter Replacement Components With Torque Specifications [08/2015 - 08/2017] (3 Of 9)
GTY225082Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

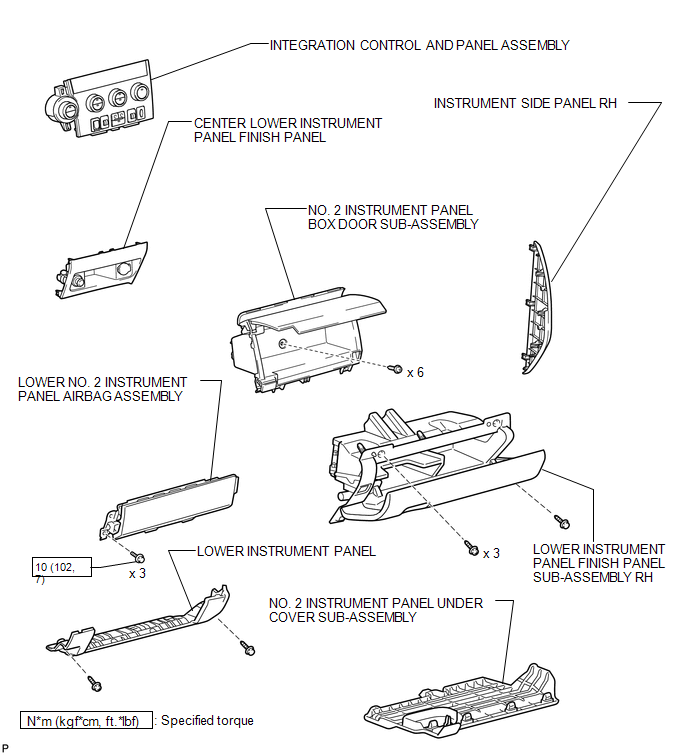

Fig 4: Accessory Meter Replacement Components With Torque Specifications [08/2015 - 08/2017] (4 Of 9)
GTY333862Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

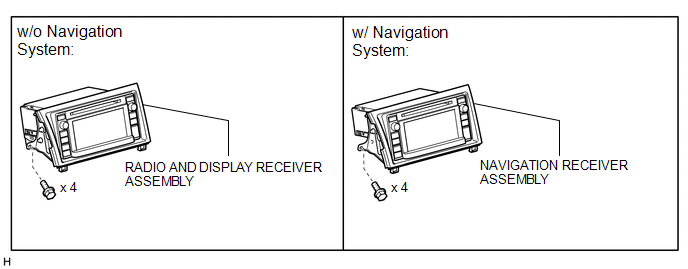

Fig 5: Accessory Meter Replacement Components [08/2015 - 08/2017] (5 Of 9)
GTY592112Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

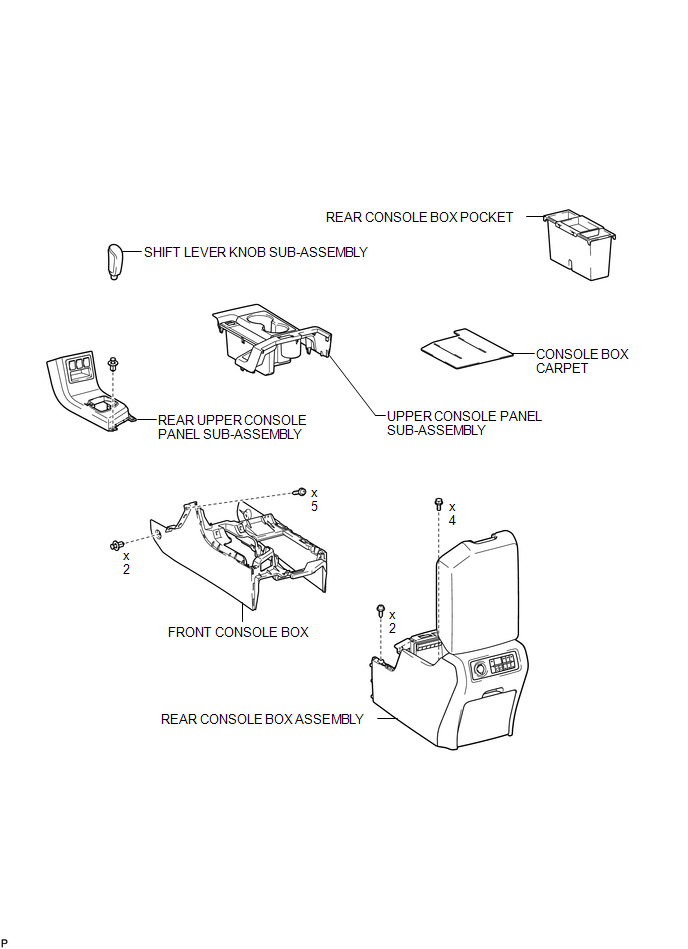

Fig 6: Accessory Meter Replacement Components [08/2015 - 08/2017] (6 Of 9)
GTY565802Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

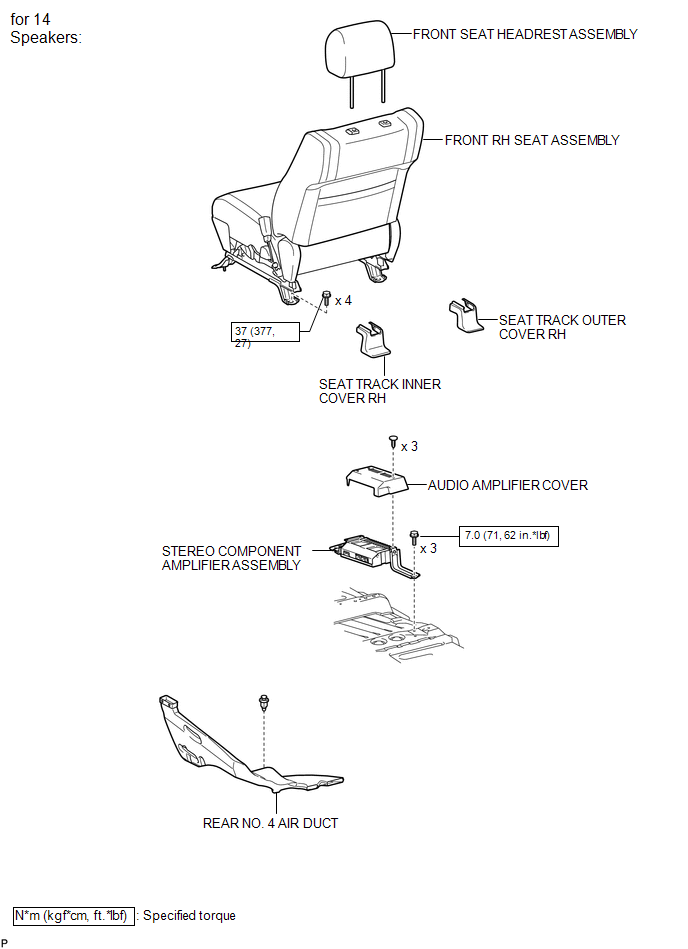

Fig 7: Accessory Meter Replacement Components With Torque Specifications [08/2015 - 08/2017] (7 Of 9)
GTY582576Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

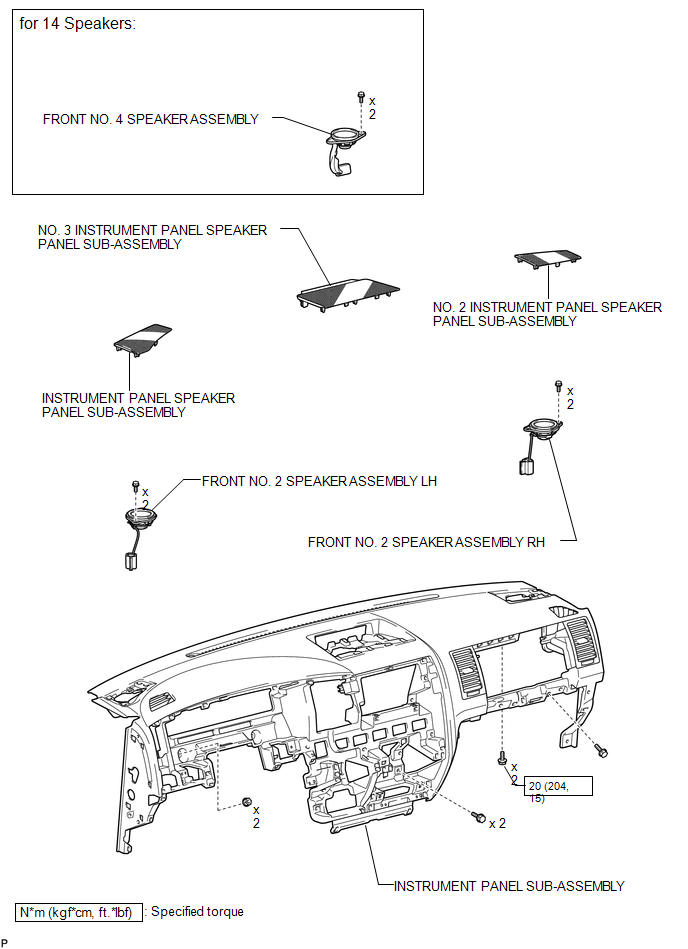

Fig 8: Accessory Meter Replacement Components With Torque Specifications [08/2015 - 08/2017] (8 Of 9)
GTY382243Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

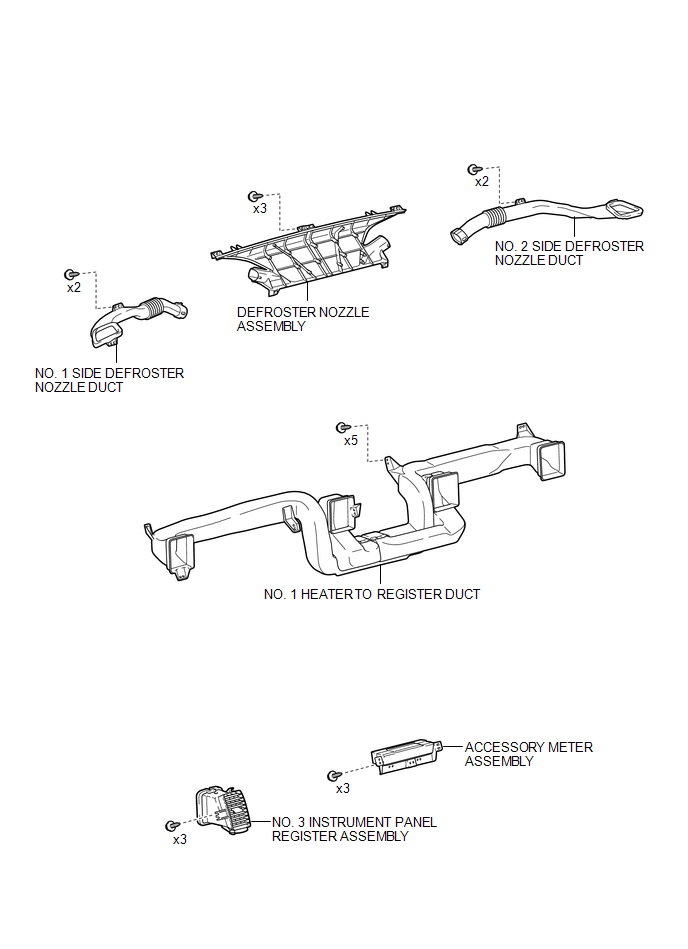

Fig 9: Accessory Meter Replacement Components [08/2015 - 08/2017] (9 Of 9)
GTY242123Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
