Parts Location [12/2021 - ]: Illustration

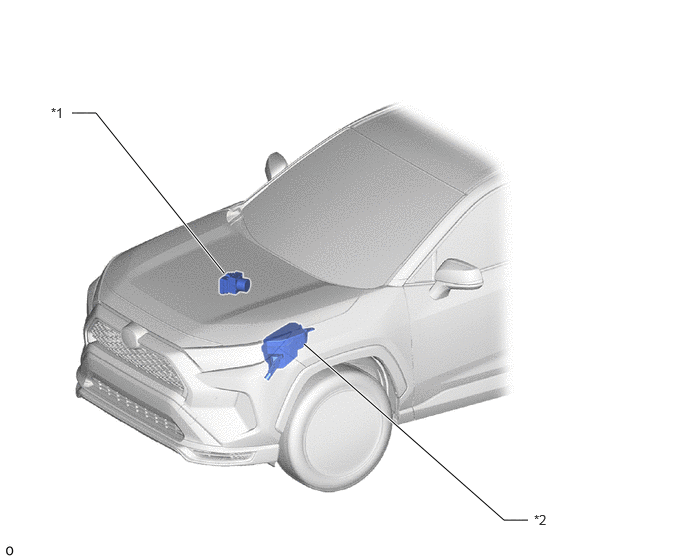

Fig 1: Electric Parking Brake System (W/O Vacuum Brake Booster) Replacement Components (1 Of 2) [12/2021 - ]
| *1 | NO. 2 SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY) | *2 | NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - ABS NO. 2 FUSE |

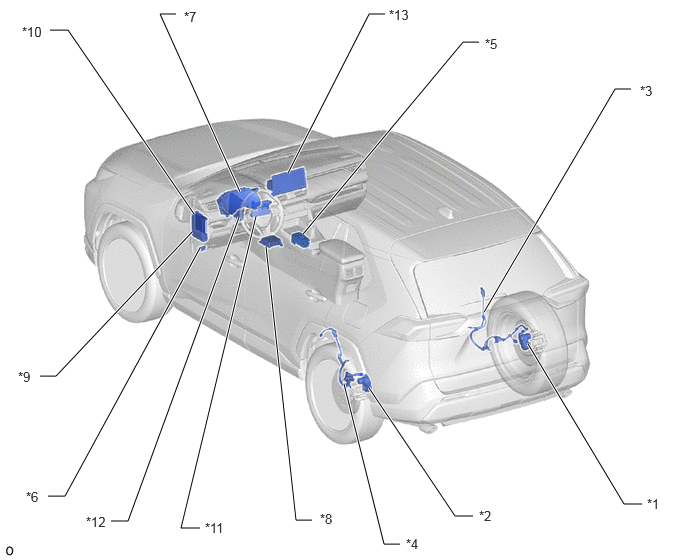

Fig 1: Electric Parking Brake System (W/O Vacuum Brake Booster) Replacement Components (2 Of 2) [12/2021 - ]
| *1 | PARKING BRAKE ACTUATOR ASSEMBLY RH | *2 | PARKING BRAKE ACTUATOR ASSEMBLY LH |
| *3 | NO. 1 PARKING BRAKE WIRE ASSEMBLY | *4 | NO. 2 PARKING BRAKE WIRE ASSEMBLY |
| *5 | INTEGRATION CONTROL AND PANEL ASSEMBLY - ELECTRIC PARKING BRAKE SWITCH |
*6 | DLC3 |
| *7 | COMBINATION METER ASSEMBLY | *8 | DECELERATION SENSOR (AIRBAG ECU ASSEMBLY) |
| *9 | POWER DISTRIBUTION BOX ASSEMBLY - ECU-IG1 NO. 2 FUSE - ECU-B NO. 2 FUSE |
*10 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *11 | AIR CONDITIONING AMPLIFIER ASSEMBLY | *12 | HYBRID VEHICLE CONTROL ECU |
| *13 | RADIO AND DISPLAY RECEIVER ASSEMBLY | - | - |
