Removal [11/2018 - ]: Procedure

  1. REMOVE BACK DOOR CENTER GARNISH

    Refer to PROCEDURE - Step 1 [11/2018 - 10/2023] , or refer to PROCEDURE - Step 1 [10/2023 - ]

  2. REMOVE BACK DOOR SIDE GARNISH LH

    Refer to PROCEDURE - Step 2 [11/2018 - 10/2023] , or refer to PROCEDURE - Step 2 [10/2023 - ]

  3. REMOVE BACK DOOR SIDE GARNISH RH

    HINT:

    Use the same procedure described for the LH side.

  4. REMOVE REAR SPOILER SUB-ASSEMBLY

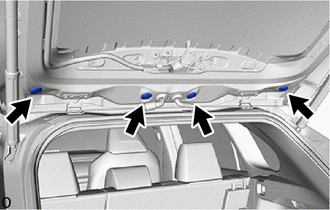

    1. Remove the 4 hole plugs.
      GTY900080Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

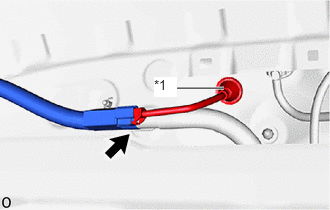

    2. Disconnect the connector.
      GTY938983Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Grommet
    3. Detach the grommet.

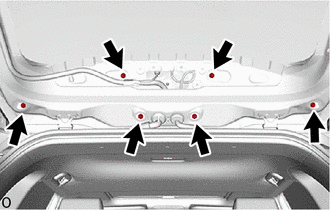

    4. Remove the 6 nuts.
      GTY900409Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

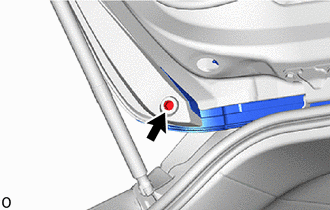

    5. Remove the bolt.

      HINT:

      Use the same procedure for the RH and LH side.

      GTY939721Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

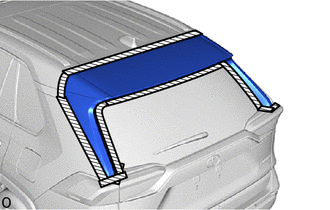

    6. Put protective tape around the rear spoiler sub-assembly.
      GTY906666Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape

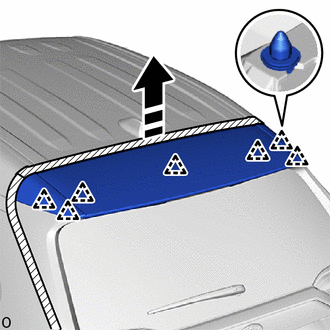

    7. Detach the clip as shown in the illustration to remove the rear spoiler sub-assembly as shown in the illustration.
      GTY853783Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  5. REMOVE REAR SIDE SPOILER SUB-ASSEMBLY LH

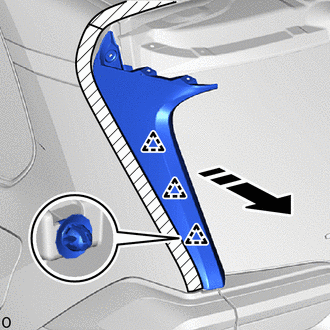

    1. Detach the clip and rear side spoiler sub-assembly LH as shown in the illustration.
      GTY857006Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  6. REMOVE REAR SIDE SPOILER SUB-ASSEMBLY RH

    HINT:

    Use the same procedure described for the LH side.
