Components [02/2019 - 01/2020]
| *A | w/ Tonneau Cover | - | - |
| *1 | DECK BOARD ASSEMBLY | *2 | REAR FLOOR FINISH PLATE |
| *3 | REAR NO. 1 FLOOR MAT SUPPORT SIDE PLATE | *4 | REAR NO. 2 FLOOR BOARD |
| *5 | REAR NO. 3 FLOOR BOARD | *6 | SPARE WHEEL COVER STOPPER |
| *7 | TONNEAU COVER ASSEMBLY | - | - |
Fig 2: Roof Headlining Replacement Components With Torque Specifications [02/2019 - 01/2020] (2 Of 15)
| Callout | Description | Callout | Description |
| *A | for Gasoline Model | *B | for HV Model |
| *1 | BATTERY SERVICE COVER BOARD | *2 | BENCH TYPE REAR SEAT CUSHION ASSEMBLY |
| *3 | CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY LH | *4 | CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY RH |
| *5 | NO. 2 BATTERY SERVICE COVER BOARD | *6 | NO. 3 BATTERY SERVICE COVER BOARD |
| *7 | REAR CENTER SEAT OUTER BELT ASSEMBLY (FLOOR ANCHOR) | *8 | REAR SEAT CUSHION LOCK HOOK |
| *9 | REAR SEATBACK ASSEMBLY LH | *10 | REAR SEATBACK ASSEMBLY RH |
| *11 | REAR SEATBACK HINGE SUB-ASSEMBLY LH | *12 | REAR SEATBACK HINGE SUB-ASSEMBLY RH |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | • | Non-reusable part |
Fig 3: Roof Headlining Replacement Components With Torque Specifications [02/2019 - 01/2020] (3 Of 15)
| Callout | Description | Callout | Description |
| *A | for Gasoline Model | *B | for HV Model |
| *1 | CENTER PILLAR GARNISH LH | *2 | COWL SIDE TRIM BOARD LH |
| *3 | FRONT DOOR OPENING TRIM WEATHERSTRIP LH | *4 | FRONT DOOR SCUFF PLATE LH |
| *5 | FRONT PILLAR GARNISH LH | *6 | FRONT SEAT OUTER BELT ASSEMBLY LH |
| *7 | LOWER CENTER PILLAR GARNISH LH | *8 | OUTER LAP BELT ANCHOR COVER |
| *9 | REAR DOOR OPENING TRIM WEATHERSTRIP LH | *10 | REAR DOOR SCUFF PLATE LH |
| *11 | FRONT PILLAR GARNISH CLIP | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | • | Non-reusable part |
Fig 4: Roof Headlining Replacement Components With Torque Specifications [02/2019 - 01/2020] (4 Of 15)
| Callout | Description | Callout | Description |
| *A | for Gasoline Model | *B | for HV Model |
| *1 | CENTER PILLAR GARNISH RH | *2 | COWL SIDE TRIM BOARD RH |
| *3 | FRONT DOOR OPENING TRIM WEATHERSTRIP RH | *4 | FRONT DOOR SCUFF PLATE RH |
| *5 | FRONT PILLAR GARNISH RH | *6 | FRONT SEAT OUTER BELT ASSEMBLY RH |
| *7 | LOWER CENTER PILLAR GARNISH RH | *8 | OUTER LAP BELT ANCHOR COVER |
| *9 | REAR DOOR OPENING TRIM WEATHERSTRIP RH | *10 | REAR DOOR SCUFF PLATE RH |
| *11 | FRONT PILLAR GARNISH CLIP | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | • | Non-reusable part |
| *A | for Gasoline Model | *B | for HV Model |
| *1 | DECK TRIM SIDE PANEL ASSEMBLY LH | *2 | INNER ROOF SIDE GARNISH ASSEMBLY LH |
| *3 | LUGGAGE HOLD BELT STRIKER ASSEMBLY | *4 | REAR SEAT SIDE GARNISH LH |
| *5 | TETHER ANCHOR BRACKET SET | - | - |
| • | Non-reusable part | - | - |
| *A | for Gasoline Model | *B | for HV Model |
| *1 | DECK TRIM SIDE PANEL ASSEMBLY RH | *2 | INNER ROOF SIDE GARNISH ASSEMBLY RH |
| *3 | LUGGAGE HOLD BELT STRIKER ASSEMBLY | *4 | REAR SEAT SIDE GARNISH RH |
| *5 | TETHER ANCHOR BRACKET SET | - | - |
| • | Non-reusable part | - | - |

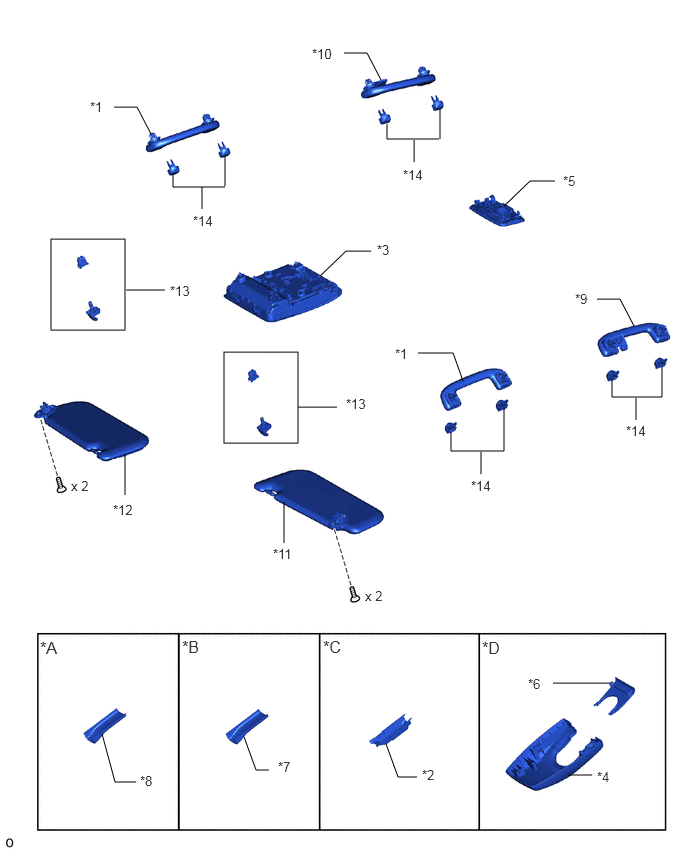

| *A | w/ Rain Sensor | *B | w/ Humidity Sensor |
| *C | w/ EC Mirror, w/o Pre-collision System | *D | w/ Pre-collision System |
| *1 | ASSIST GRIP ASSEMBLY | *2 | INNER REAR VIEW MIRROR STAY HOLDER COVER |
| *3 | MAP LIGHT ASSEMBLY | *4 | NO. 1 FORWARD RECOGNITION COVER |
| *5 | NO. 1 ROOM LIGHT ASSEMBLY | *6 | NO. 2 FORWARD RECOGNITION COVER |
| *7 | PROTECTOR | *8 | RAIN SENSOR COVER |
| *9 | REAR ASSIST GRIP ASSEMBLY LH | *10 | REAR ASSIST GRIP ASSEMBLY RH |
| *11 | VISOR ASSEMBLY LH | *12 | VISOR ASSEMBLY RH |
| *13 | VISOR HOLDER | *14 | ASSIST GRIP COVER |

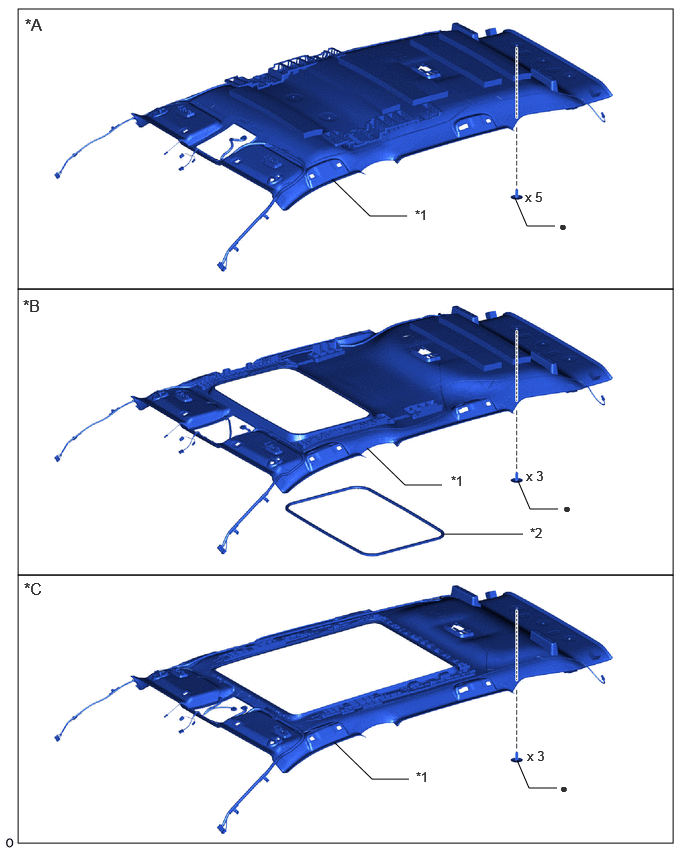

| *A | for Normal Roof | *B | for Moon Roof |
| *C | for Panoramic Moon Roof | - | - |
| *1 | ROOF HEADLINING ASSEMBLY | *2 | SUN ROOF OPENING TRIM MOULDING |
| • | Non-reusable part | - | - |

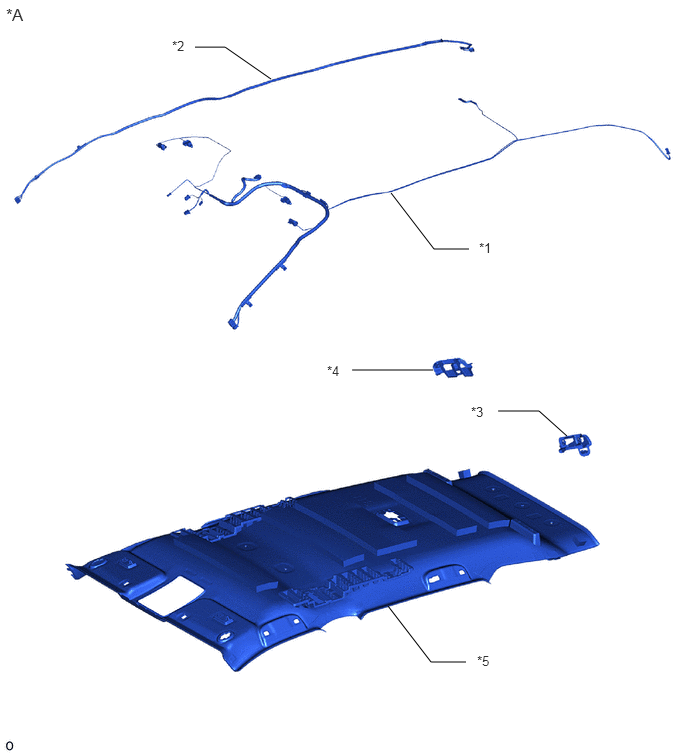

| *A | for Normal Roof | - | - |
| *1 | NO. 1 ROOF WIRE | *2 | NO. 3 ANTENNA CORD SUB-ASSEMBLY |
| *3 | REAR NO. 2 SIDE RAIL SPACER LH | *4 | REAR NO. 2 SIDE RAIL SPACER RH |
| *5 | ROOF HEADLINING | - | - |

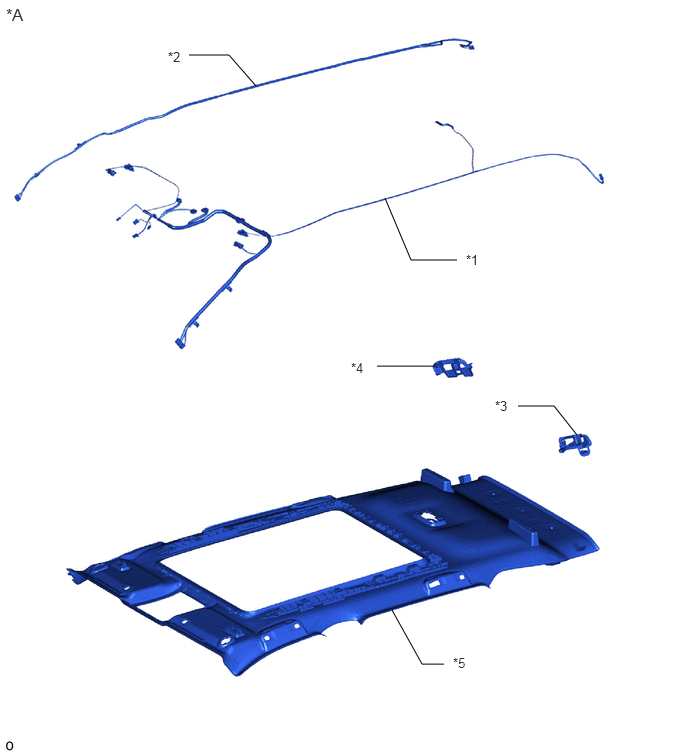

| *A | for Moon Roof | - | - |
| *1 | NO. 1 ROOF WIRE | *2 | NO. 3 ANTENNA CORD SUB-ASSEMBLY |
| *3 | REAR NO. 2 SIDE RAIL SPACER LH | *4 | REAR NO. 2 SIDE RAIL SPACER RH |
| *5 | ROOF HEADLINING | - | - |

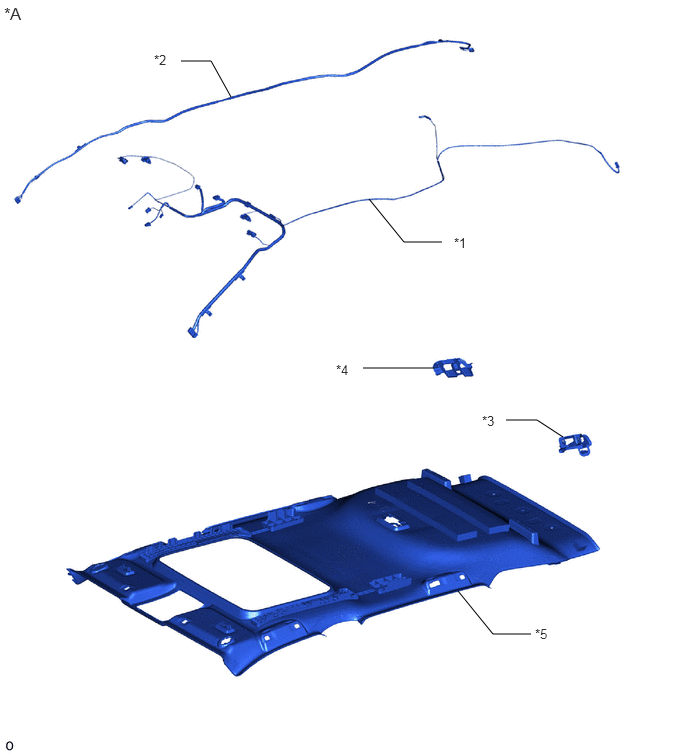

| *A | for Panoramic Moon Roof | - | - |
| *1 | NO. 1 ROOF WIRE | *2 | NO. 3 ANTENNA CORD SUB-ASSEMBLY |
| *3 | REAR NO. 2 SIDE RAIL SPACER LH | *4 | REAR NO. 2 SIDE RAIL SPACER RH |
| *5 | ROOF HEADLINING | - | - |

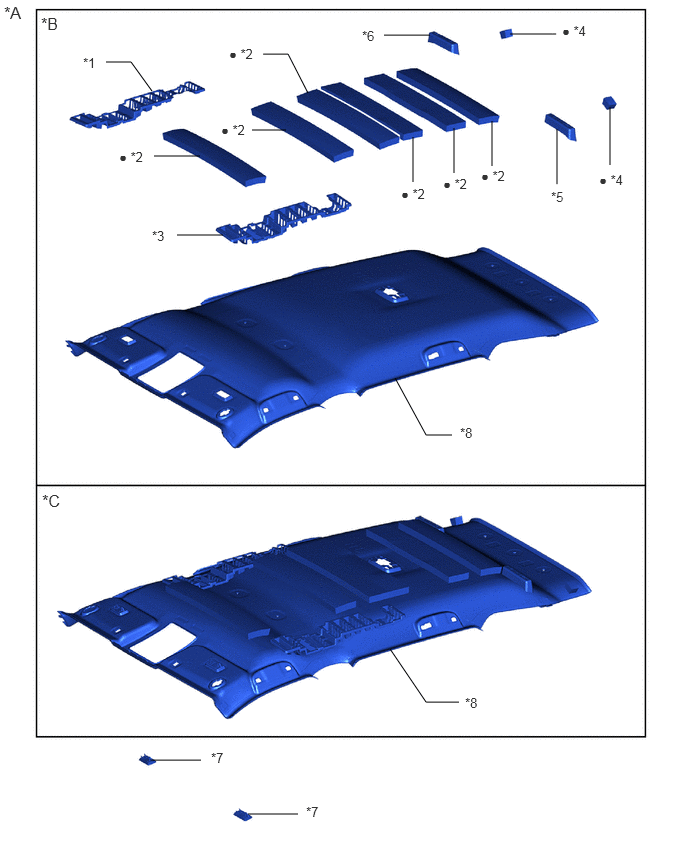

| *A | for Normal Roof | *B | for TMC Made |
| *C | for TMMC Made | - | - |
| *1 | NO. 1 ROOF HEADLINING SUPPORT | *2 | NO. 1 ROOF SILENCER PAD |
| *3 | NO. 2 ROOF HEADLINING SUPPORT | *4 | ROOF HEADLINING PAD END |
| *5 | ROOF HEADLINING PAD LH | *6 | ROOF HEADLINING PAD RH |
| *7 | VANITY LIGHT ASSEMBLY | *8 | ROOF HEADLINING |
| • | Non-reusable part | - | - |

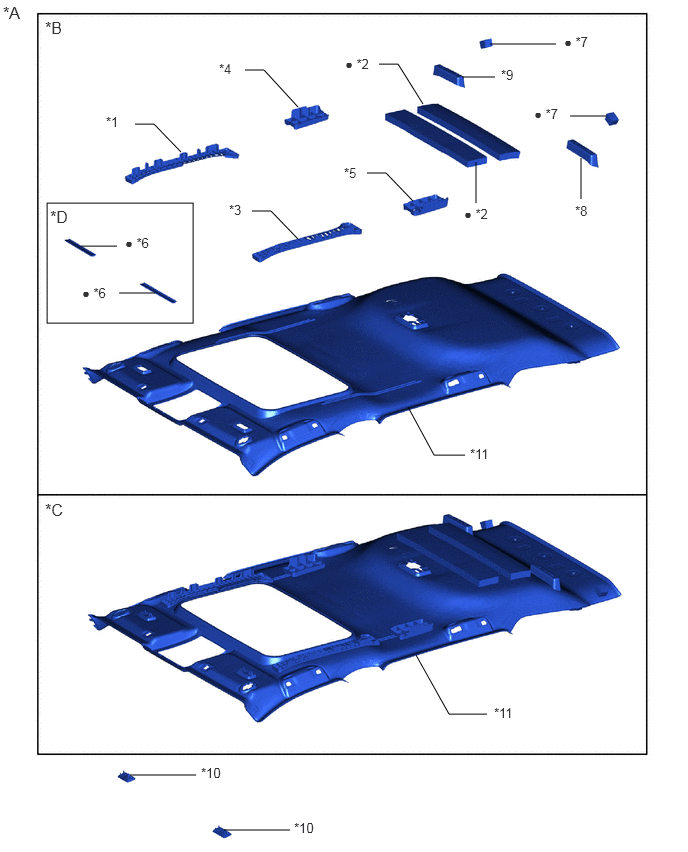

| *A | for Moon Roof | *B | for TMC Made |
| *C | for TMMC Made | *D | for Cold Area |
| *1 | NO. 1 ROOF HEADLINING SUPPORT | *2 | NO. 1 ROOF SILENCER PAD |
| *3 | NO. 2 ROOF HEADLINING SUPPORT | *4 | NO. 3 ROOF HEADLINING SUPPORT |
| *5 | NO. 4 ROOF HEADLINING SUPPORT | *6 | ROOF HEADLINING FRONT SIDE PAD |
| *7 | ROOF HEADLINING PAD END | *8 | ROOF HEADLINING PAD LH |
| *9 | ROOF HEADLINING PAD RH | *10 | VANITY LIGHT ASSEMBLY |
| *11 | ROOF HEADLINING | - | - |
| • | Non-reusable part | - | - |

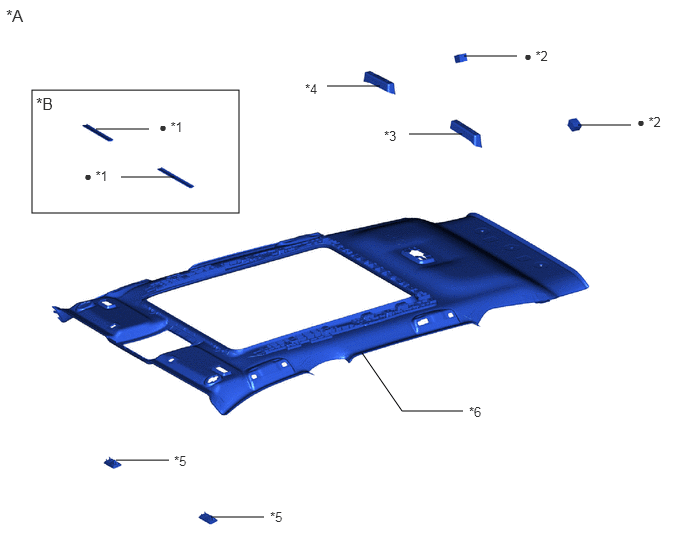

| *A | for Panoramic Moon Roof | *B | for Cold Area |
| *1 | ROOF HEADLINING FRONT SIDE PAD | *2 | ROOF HEADLINING PAD END |
| *3 | ROOF HEADLINING PAD LH | *4 | ROOF HEADLINING PAD RH |
| *5 | VANITY LIGHT ASSEMBLY | *6 | ROOF HEADLINING |
| • | Non-reusable part | - | - |
| *A | except Partition Net | *B | w/ Partition Net |
| *C | for HV Model | - | - |
| *1 | BATTERY HOLE COVER | *2 | DECK SIDE TRIM COVER RH |
| *3 | DECK TRIM POCKET COVER PLATE | *4 | ROOM PARTITION NET ASSEMBLY |
