Installation [11/2018 - 12/2021]: Procedure

INSTALL REAR DISC BRAKE ANTI-SQUEAL SHIM KIT

NOTE:

When replacing worn rear disc brake pads, the rear disc brake anti-squeal shims and rear disc brake pad wear indicator plates must be replaced together with the rear disc brake pads.
Install each rear disc brake pad wear indicator plate in the correct position and direction.
Install the rear disc brake anti-squeal shims in the correct positions and directions.
Do not apply lubricants to the lining surface of the rear disc brake pad.

Check the rear disc brake pad.

HINT:

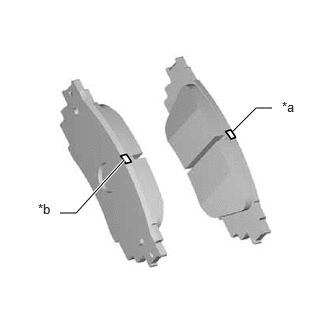

If the rear disc brake pad has an identification mark, be sure to confirm the installation location.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Inner Side (Orange)
*b	Outer Side (Yellow green)

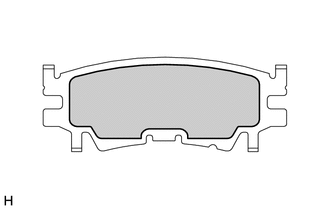

Apply brake shim grease (Part No. 08887-80409) to the inner side of the rear disc brake anti-squeal shim as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Brake Shim Grease (Part No. 08887-80409)

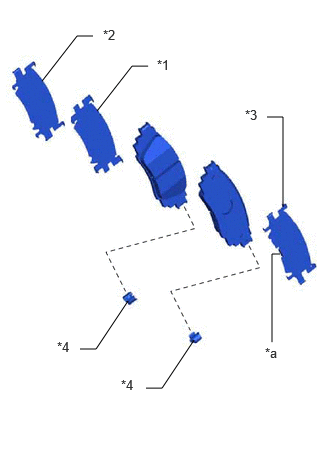

Install the rear No. 1 disc brake anti-squeal shim to the rear disc brake pad (inside and outside).

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	Rear No. 1 Disc Brake Anti-squeal Shim
*2	Rear No. 2 Disc Brake Anti-squeal Shim
*3	Rear Disc Brake Anti-squeal Shim
*4	Rear Disc Brake Pad Wear Indicator Plate
*a	claw

Install the rear No. 2 disc brake anti-squeal shim to the rear disc brake pad (inside and outside).
Install the rear disc brake anti-squeal shim to the rear disc brake pad (outside).
NOTE:
Install the rear disc brake anti-squeal shim so that its claws are toward the outside of the vehicle.
Install a new rear disc brake pad wear indicator plate to each rear disc brake pad.

INSTALL REAR DISC BRAKE PAD

WARNING:

Be careful not to get pinched by the rear disc brake cylinder assembly or other parts when installing the rear disc brake pads.
After lifting up the rear disc brake cylinder assembly, secure it in place before performing any work on it.
The rear disc brake cylinder assembly could fall, pinching hands or fingers and causing injury.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Push in the rear disc brake piston.
NOTE:
- Make sure the brake fluid does not overflow from the reservoir.
- Do not forcibly push in the rear disc brake piston.

Install the 2 rear disc brake pads to the rear disc brake cylinder mounting.

NOTE:

Keep the friction surfaces of the rear disc brake pads and rear disc free from oil and grease.
Install the rear disc brake pad so that the rear disc brake pad wear indicator plate is mounted on the lower side of the vehicle.

HINT:

If the rear disc brake pad has an identification mark, be sure to confirm the installation location.

*a	Inner Side (Orange)
*b	Outer Side (Yellow green)

Hold the rear No. 1 disc brake cylinder slide pin and install the rear disc brake cylinder assembly to the rear disc brake cylinder mounting with a new bolt.
Torque: 34.3 N.m (350 kgf/cm, 25 ft.lbf)
Depress the brake pedal several times. (w/ vacuum brake booster)

CONNECT NO. 2 PARKING BRAKE WIRE ASSEMBLY
Refer to PROCEDURE - Step 2
CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL (w/o Vacuum Brake Booster)
Refer to PROCEDURE - Step 12
INSPECT BRAKE FLUID LEVEL IN RESERVOIR
- w/ Vacuum Brake Booster:
  Refer to ON-VEHICLE INSPECTION [11/2018 - ]
- w/o Vacuum Brake Booster:
  Refer to ON-VEHICLE INSPECTION [11/2018 - 12/2021]
INSTALL REAR WHEEL
Refer to INSTALLATION [11/2018 - ]
NORMAL CONDITION RECOVERY
- w/ Vacuum Brake Booster:
  Refer to TEST MODE PROCEDURE [11/2018 - ]
- w/o Vacuum Brake Booster:
  Refer to TEST MODE PROCEDURE [11/2018 - 02/2019] , or refer to TEST MODE PROCEDURE [02/2019 - 12/2021]
