DTC B1508-19: Turn Signal/Hazard Flasher Circuit Current Above Threshold [02/2019 - 12/2021]: Wiring Diagram

  1. w/ Headlight ECU:

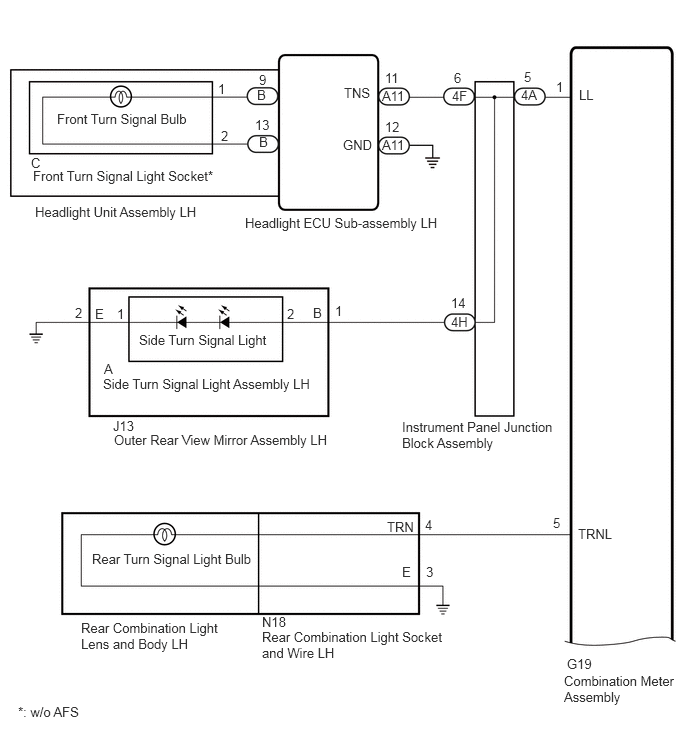

    GTY839824Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

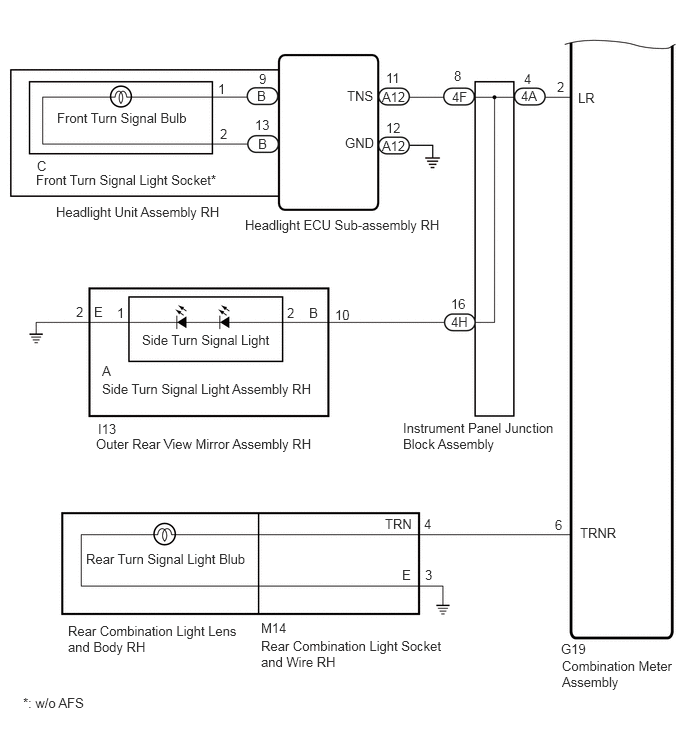

    GTY856703Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. w/o Headlight ECU:

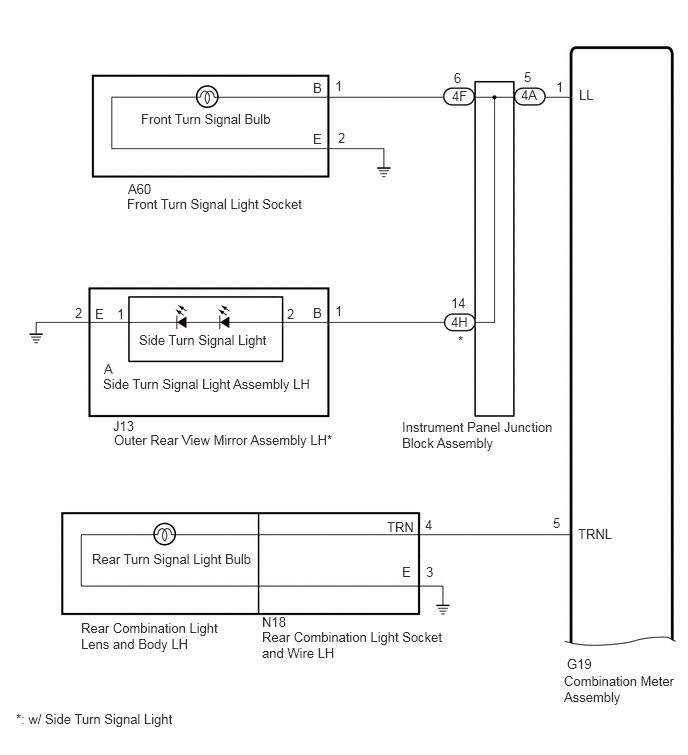

    GTY874188Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

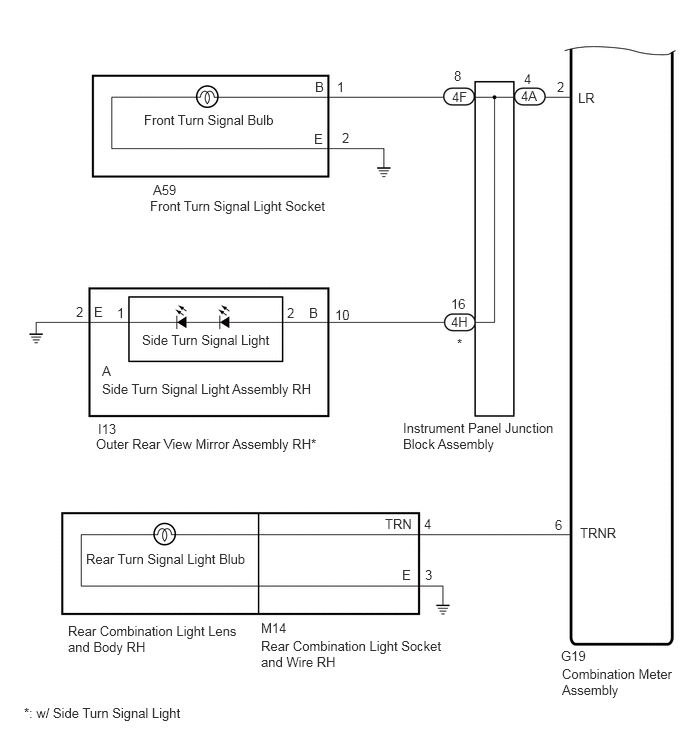

    GTY896323Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
