Parts Location [02/2019 - 08/2020]: Illustration

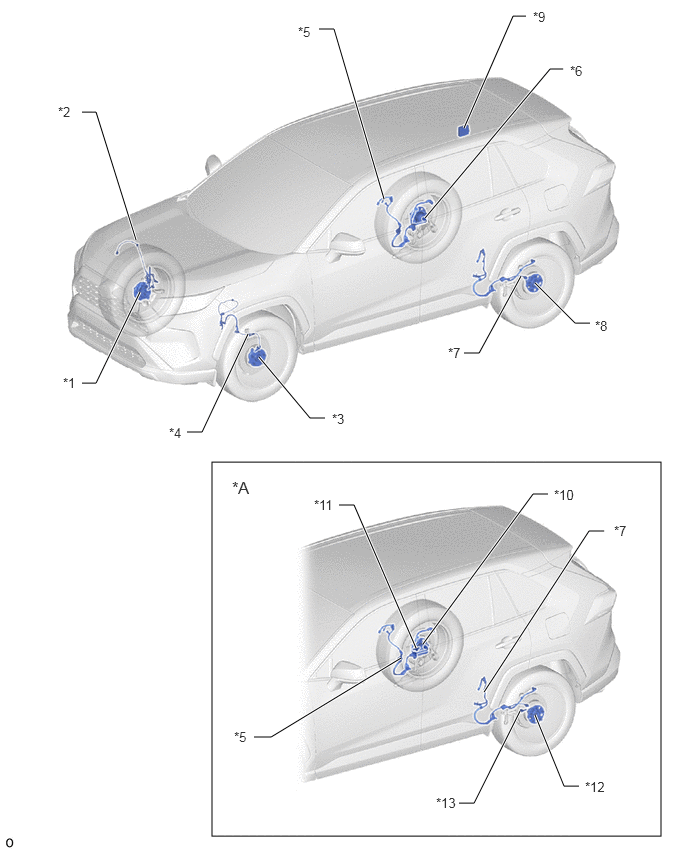

Fig 1: Electronically Controlled Brake System (W/O Vacuum Brake Booster) Replacement Components (1 Of 3) [02/2019 - 08/2020]
| *A | for AWD | - | - |
| *1 | FRONT AXLE HUB SUB-ASSEMBLY RH - FRONT SPEED SENSOR ROTOR RH |
*2 | FRONT SPEED SENSOR RH |
| *3 | FRONT AXLE HUB SUB-ASSEMBLY LH - FRONT SPEED SENSOR ROTOR LH |
*4 | FRONT SPEED SENSOR LH |
| *5 | NO. 1 PARKING BRAKE WIRE ASSEMBLY - SKID CONTROL SENSOR WIRE RH |
*6 | REAR AXLE HUB AND BEARING ASSEMBLY RH - REAR SPEED SENSOR RH - REAR SPEED SENSOR ROTOR RH |
| *7 | NO. 2 PARKING BRAKE WIRE ASSEMBLY - SKID CONTROL SENSOR WIRE LH |
*8 | REAR AXLE HUB AND BEARING ASSEMBLY LH - REAR SPEED SENSOR LH - REAR SPEED SENSOR ROTOR LH |
| *9 | PARKING BRAKE ECU ASSEMBLY | *10 | REAR AXLE HUB AND BEARING ASSEMBLY RH - REAR SPEED SENSOR ROTOR RH |
| *11 | REAR SPEED SENSOR RH | *12 | REAR AXLE HUB AND BEARING ASSEMBLY LH - REAR SPEED SENSOR ROTOR LH |
| *13 | REAR SPEED SENSOR LH | - | - |
Fig 1: Electronically Controlled Brake System (W/O Vacuum Brake Booster) Replacement Components (2 Of 3) [02/2019 - 08/2020]
| *1 | BRAKE BOOSTER PUMP ASSEMBLY | *2 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY LH |
| *3 | BRAKE MASTER CYLINDER RESERVOIR ASSEMBLY - BRAKE FLUID LEVEL WARNING SWITCH |
*4 | BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY - BRAKE ACTUATOR - SKID CONTROL ECU |
| *5 | NO. 1 ENGINE ROOM RELAY BLOCK - ABS NO. 1 FUSE - ABS NO. 2 FUSE - ABS MTR NO. 1 FUSE - ABS MTR NO. 2 FUSE |
- | - |
Fig 1: Electronically Controlled Brake System (W/O Vacuum Brake Booster) Replacement Components (3 Of 3) [02/2019 - 08/2020]
| *1 | INTEGRATION CONTROL AND PANEL ASSEMBLY - BRAKE HOLD SWITCH |
*2 | STOP LIGHT SWITCH ASSEMBLY |
| *3 | VSC OFF SWITCH | *4 | STEERING SENSOR |
| *5 | HYBRID VEHICLE CONTROL ECU ASSEMBLY | *6 | AIRBAG ECU ASSEMBLY - YAW RATE AND ACCELERATION SENSOR |
| *7 | BRAKE PEDAL STROKE SENSOR ASSEMBLY | *8 | DLC3 |
| *9 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *10 | COMBINATION METER ASSEMBLY - ABS WARNING LIGHT - BRAKE WARNING LIGHT / RED (MALFUNCTION) - BRAKE WARNING LIGHT / YELLOW (MINOR MALFUNCTION) - SLIP INDICATOR LIGHT - VSC OFF INDICATOR LIGHT - MULTI-INFORMATION DISPLAY (TRC (TRAC) OFF MESSAGE) - BRAKE HOLD STANDBY INDICATOR LIGHT - BRAKE HOLD OPERATED INDICATOR LIGHT - METER BUZZER |
| *11 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - STOP FUSE - A/BAG-IG2 FUSE - ECU-IG1 NO. 2 FUSE - ECU-IG2 NO. 3 FUSE - ECU-DCC NO. 1 FUSE |
- | - |
