Removal [11/2018 - ]: Procedure

  1. REMOVE VACUUM WARNING SWITCH ASSEMBLY

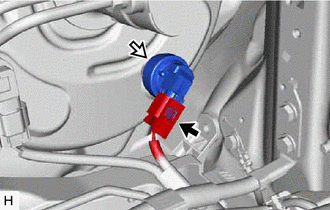

    1. Disconnect the connector from the vacuum warning switch assembly.
      GTY881107Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the vacuum warning switch assembly from the brake booster assembly.
  2. REMOVE CHECK VALVE GROMMET
    1. Remove the check valve grommet from the brake booster assembly.
