Installation [11/2018 - ]: Procedure

  1. INSTALL CHECK VALVE GROMMET
    1. Install a new check valve grommet to the brake booster assembly.
  2. INSTALL VACUUM WARNING SWITCH ASSEMBLY

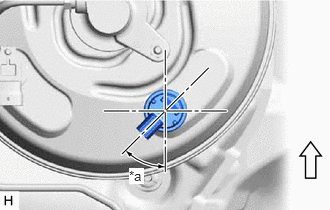

    1. Install the vacuum warning switch assembly to the brake booster assembly as shown in the illustration.
      GTY901226Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a 45°
      Up
    2. Connect the connector to the vacuum warning switch assembly.
