VACUUM WARNING SWITCH (w/ Vacuum Brake Booster)
>>
Components [11/2018 - ]
Components [11/2018 - ]

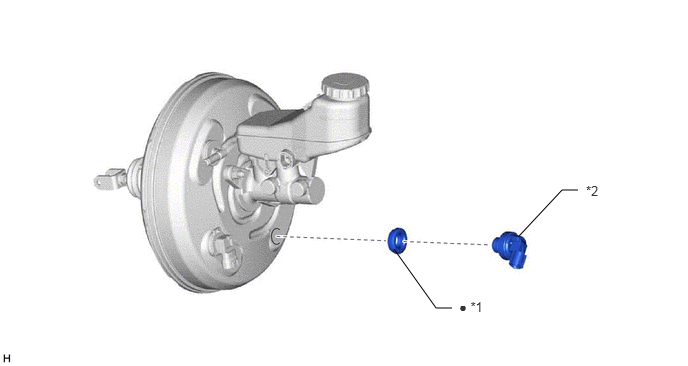

Fig 1: Vacuum Warning Switch (W/ Vacuum Brake Booster) Replacement Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
CHECK VALVE GROMMET
*2
VACUUM WARNING SWITCH ASSEMBLY
•
Non-reusable part
-
-
