Disassembly [11/2018 - ]: Procedure

REMOVE END COVER

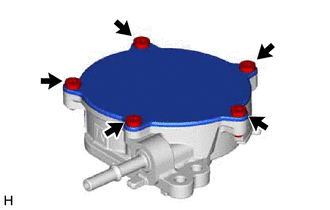

Using a T30 "TORX" socket wrench, remove the 5 screws and end cover.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:

Hold the pump so that the pump installation surface and fitting parts will not be damaged.
As the housing deforms when force is applied, do not secure the housing with a tool such as a vise.
Securely fit the T30 "TORX" socket wrench to the screws.
Do not drop the end cover.
Do not damage the end cover.

Using a screwdriver with its tip wrapped with protective tape, remove the vacuum pump cover O-ring.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Protective Tape

NOTE:

Do not damage the groove.

REMOVE VACUUM PUMP VANE

Remove the vacuum pump vane together with the 2 vacuum pump vane caps.

Remove the 2 vacuum pump vane caps from the vacuum pump vane.

*1	Vacuum Pump Vane Cap
*2	Vacuum Pump Vane
