Installation [11/2018 - 12/2021]: Procedure

  1. INSTALL BRAKE BOOSTER PUMP ASSEMBLY
    1. Install the 2 brake booster pump collars and 2 brake booster pump bushings to the brake booster pump assembly as shown in the illustration.

      HINT:

      Perform this procedure only when replacement of the brake booster pump collars or brake booster pump bushings is necessary.

      GTY756816Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Brake Booster Pump Collar
      *2 Brake Booster Pump Bushing
    2. Connect the brake booster pump assembly, brake booster pump bushing and No. 2 brake actuator case collar to the brake actuator bracket assembly as shown in the illustration.

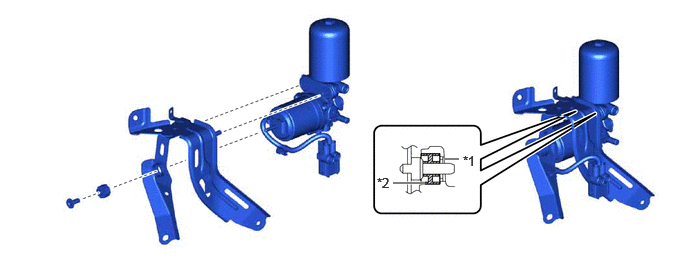

      GTY890576Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Brake Booster Pump Collar *2 Brake Booster Pump Bushing
      NOTE:
      • Be careful not to allow brake fluid to enter the connector.
      • When installing the brake booster pump assembly to the brake actuator bracket assembly, confirm that the 2 brake booster pump bushings and 2 brake booster pump collars are installed to the brake booster pump assembly.
      • Do not drop the brake booster pump assembly when carrying it.
      • Do not install a brake booster pump assembly that has been dropped.
      • Do not remove the hole plugs of a new brake booster pump assembly before connecting the brake lines because the brake booster pump assembly is filled with brake fluid.
      • Do not carry the brake booster pump assembly by the parts shown in the illustration.

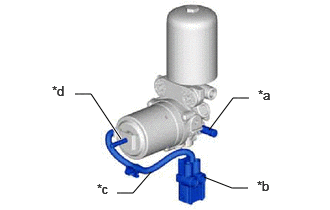

        GTY860160Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Union
        *b Connector
        *c Wire Harness
        *d Stud
    3. Install the nut.

      Torque: 6.5 N.m (66 kgf/cm, 58 in.lbf)

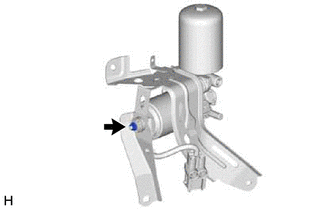

      GTY935330Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

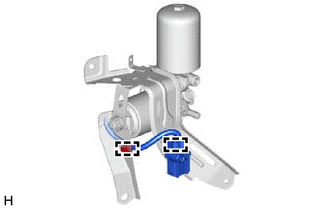

    4. Engage the 2 clamps to connect the wire harness to the brake actuator bracket assembly.
      GTY935331Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL NO. 2 BRAKE ACTUATOR HOSE
    1. Install the No. 2 brake actuator hose to the brake booster pump assembly and slide the clip to secure it.

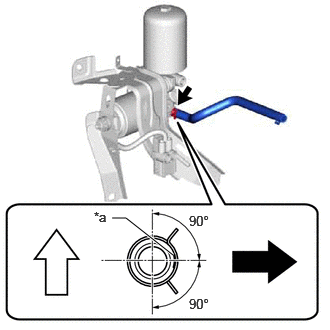

      GTY924640Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Identification Mark
      Rear of the vehicle
      Up
      NOTE:
      • Make sure to connect the No. 2 brake actuator hose with its identification mark facing the rear of the vehicle.
      • Install the clip within the range shown in the illustration.
  3. INSTALL BRAKE BOOSTER PUMP ASSEMBLY WITH BRACKET
    1. Temporarily install the brake booster pump assembly with bracket to the vehicle body with the 2 bolts and nut.
      NOTE:
      • Do not apply excessive force to the brake lines.
      • Do not carry the brake booster pump assembly by the parts shown in the illustration.
      • Do not drop the brake booster pump assembly when carrying it.
      • Be careful not to allow brake fluid to enter the connector.
      • Do not remove the hole plugs of a new brake booster pump assembly before connecting the brake lines because the brake booster pump assembly is filled with brake fluid.

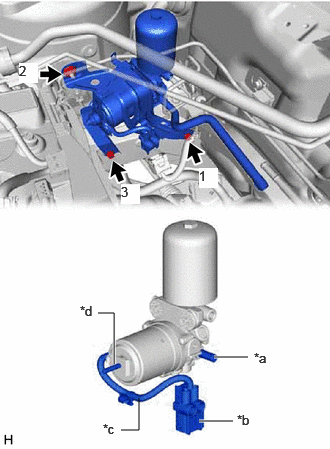

      GTY943582Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Union
      *b Connector
      *c Wire Harness
      *d Stud

      HINT:

      Install the 2 bolts from the bottom of the vehicle.

    2. Tighten the 2 bolts and nut in the order shown in the illustration.

      Torque: 19 N.m (194 kgf/cm, 14 ft.lbf)

    3. Connect the connector to the brake booster pump assembly and lock the lock lever as shown in the illustration.

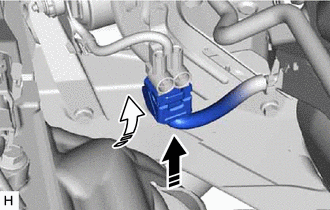

      GTY896350Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Connect the connector
      Lock the lock lever
      NOTE:
      • Make sure that the connector is locked securely.
      • Make sure that the connector can be connected smoothly.
      • Do not allow water, oil or dirt to enter the connector.
  4. CONNECT ACCUMULATOR TO BRAKE MASTER CYLINDER TUBE
    1. Using a union nut wrench, connect the accumulator to brake master cylinder tube to the brake booster pump assembly.

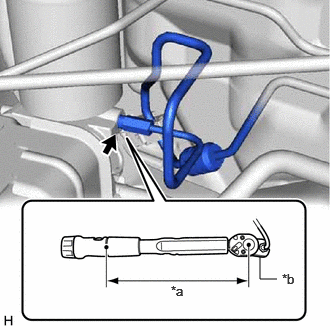

      GTY902043Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Torque Wrench Fulcrum Length
      *b Union Nut Wrench

      Specified tightening torque

      Torque: 15.2 N.m (155 kgf/cm, 11 ft.lbf)

      NOTE:
      • Do not kink or damage the accumulator to brake master cylinder tube.
      • Do not allow the accumulator to brake master cylinder tube to twist or interfere with other parts or the vehicle body during tightening.
      • Do not allow any foreign matter such as dirt or dust to enter the accumulator to brake master cylinder tube from the connecting parts.

      HINT:

      • Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.

        Refer to PRECAUTION [11/2018 - ]

      • When using a union nut wrench (fulcrum length of 22 mm (0.866 in.)) + torque wrench (fulcrum length of 162 mm (6.38 in.)):

        13.4 N.m (137 kgf/cm, 10 ft.lbf)

  5. CONNECT NO. 2 BRAKE ACTUATOR HOSE
    1. Connect the No. 2 brake actuator hose to the No. 1 brake actuator tube and slide the clip to secure it.

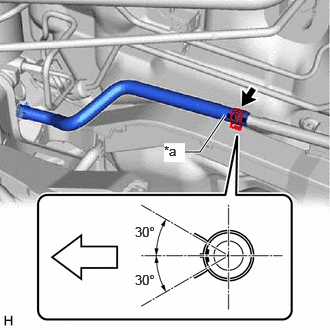

      GTY941232Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Identification Mark
      Front of the vehicle
      NOTE:
      • When connecting the No. 2 brake actuator hose, face the identification mark toward the front of the vehicle.
      • Install the clip within the range shown in the illustration.
  6. SEPARATE BRAKE MASTER CYLINDER RESERVOIR ASSEMBLY

    See step  13 [11/2018 - 02/2019], or see step  13 [02/2019 - 10/2019], or see step  13 [10/2019 - 08/2020], or see step  13 [08/2020 - 12/2021]

  7. BLEED NO. 1 BRAKE ACTUATOR TUBE

    See step  10

  8. INSTALL BRAKE MASTER CYLINDER RESERVOIR ASSEMBLY

    See step  11

  9. FILL RESERVOIR WITH BRAKE FLUID
  10. CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL

    Refer to PROCEDURE - Step 12

    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [11/2018 - 02/2019] , or refer to INITIALIZATION [02/2019 - 10/2019] , or refer to INITIALIZATION [10/2019 - 06/2020] , or refer to INITIALIZATION [06/2020 - 08/2020] , or refer to INITIALIZATION [08/2020 - 12/2021]

  11. BLEED BRAKE SYSTEM

    Refer to BLEEDING [11/2018 - 12/2021]

  12. INSTALL COWL VENTILATOR PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 46 [11/2018 - 02/2019] , or refer to PROCEDURE - Step 54 [02/2019 - 08/2020] , or refer to PROCEDURE - Step 54 [08/2020 - 12/2021]

  13. INSTALL WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY

    Refer to INSTALLATION [11/2018 - ]
