Components [12/2021 - ]

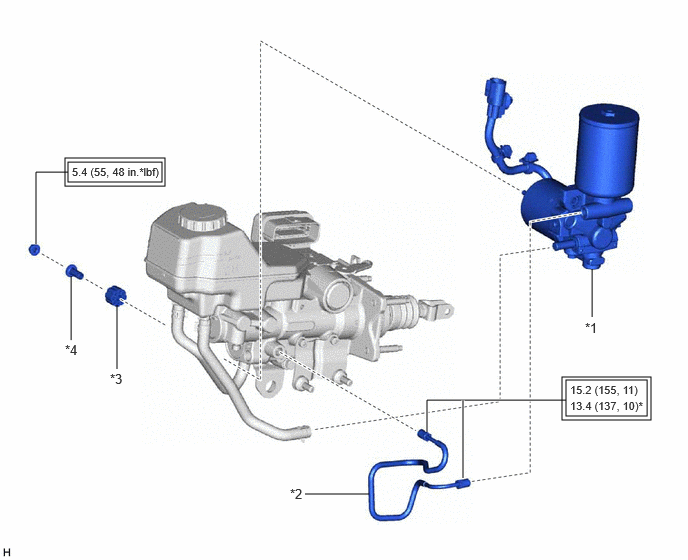

Fig 1: Brake Booster Pump (w/o Vacuum Brake Booster) Replacement Components With Torque Specifications [12/2021 - ] (1 Of 2)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | BRAKE BOOSTER WITH ACCUMULATOR PUMP ASSEMBLY | *2 | BRAKE ACTUATOR TUBE |
| *3 | BRAKE BOOSTER PUMP BUSHING | *4 | BRAKE ACTUATOR CASE COLLAR |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | * | For use with a union nut wrench |

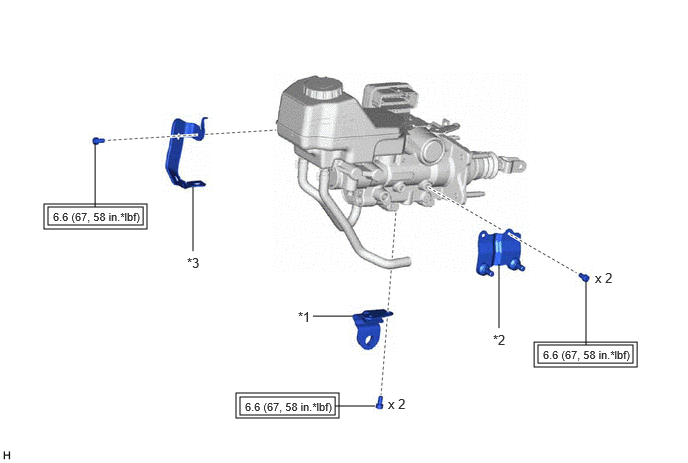

Fig 2: Brake Booster Pump (w/o Vacuum Brake Booster) Replacement Components With Torque Specifications [12/2021 - ] (2 Of 2)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | NO. 1 BRAKE POWER SUPPLY BRACKET | *2 | NO. 2 BRAKE POWER SUPPLY BRACKET |
| *3 | NO. 2 WIRE CLAMP BRACKET | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | - | - |
