Components [11/2018 - 12/2021]

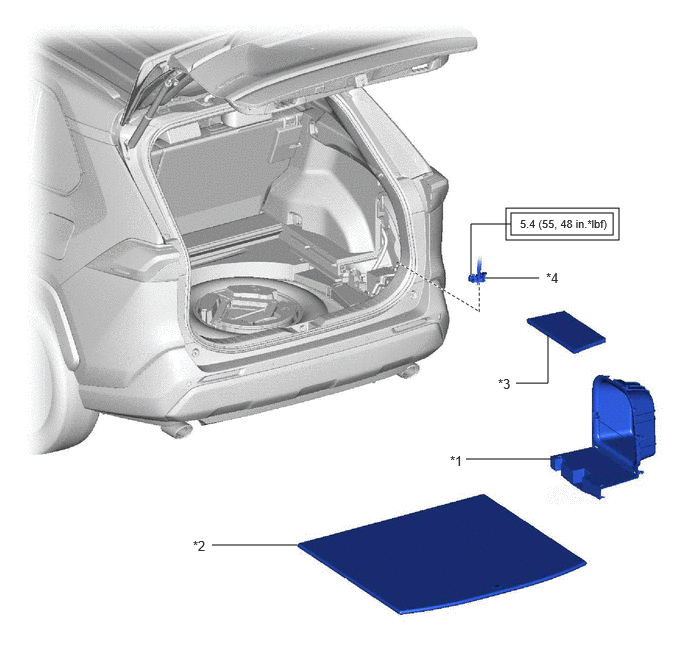

Fig 1: Brake Booster Pump (w/o Vacuum Brake Booster) Replacement Components With Torque Specifications [11/2018 - 12/2021] (1 Of 3)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | BATTERY HOLE COVER | *2 | DECK BOARD ASSEMBLY |
| *3 | REAR NO. 2 FLOOR BOARD | *4 | NEGATIVE AUXILIARY BATTERY TERMINAL |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | - | - |

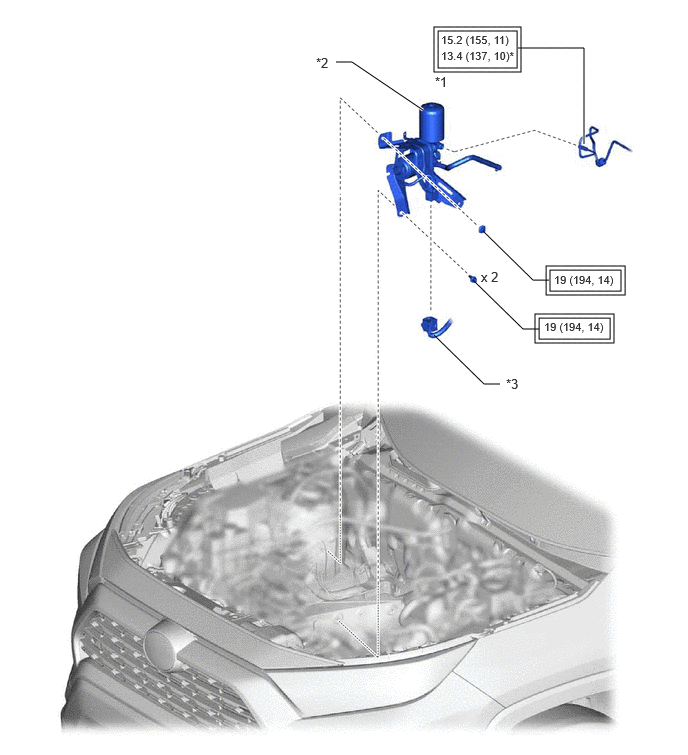

Fig 2: Brake Booster Pump (w/o Vacuum Brake Booster) Replacement Components With Torque Specifications [11/2018 - 12/2021] (2 Of 3)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | ACCUMULATOR TO BRAKE MASTER CYLINDER TUBE | *2 | BRAKE BOOSTER PUMP ASSEMBLY WITH BRACKET |
| *3 | CONNECTOR | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | * | For use with a union nut wrench |

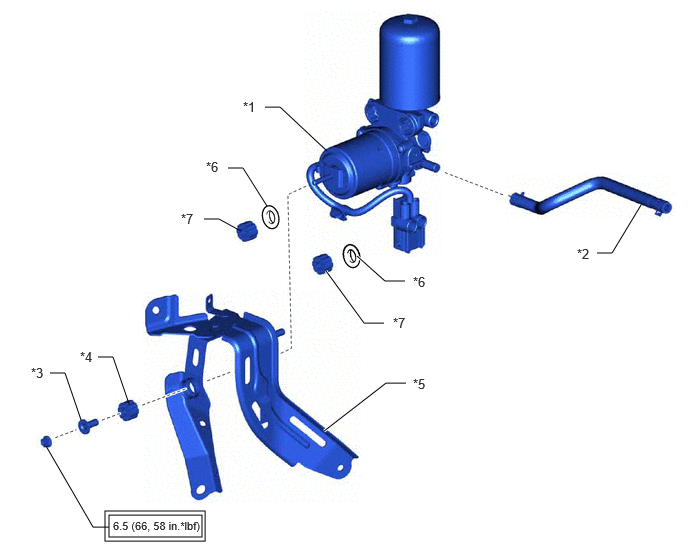

Fig 3: Brake Booster Pump (w/o Vacuum Brake Booster) Replacement Components With Torque Specifications [11/2018 - 12/2021] (3 Of 3)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | BRAKE BOOSTER PUMP ASSEMBLY | *2 | NO. 2 BRAKE ACTUATOR HOSE |
| *3 | NO. 2 BRAKE ACTUATOR CASE COLLAR | *4 | BRAKE BOOSTER PUMP BUSHING |
| *5 | BRAKE ACTUATOR BRACKET ASSEMBLY | *6 | BRAKE BOOSTER PUMP COLLAR |
| *7 | BRAKE BOOSTER PUMP BUSHING | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | - | - |
