Caution / Notice / Hint
NOTE:

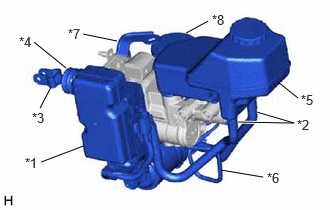

| *1 | No. 1 Skid Control ECU |
| *2 | Reservoir Hose |
| *3 | Master Cylinder Push Rod Clevis |
| *4 | Boot |
| *5 | Reservoir |
| *6 | Brake Actuator Tube |
| *7 | No. 1 Wire Clamp Bracket |
| *8 | Brake Booster with Accumulator Pump Assembly |
Do not carry the brake booster with master cylinder assembly by the parts shown in the illustration.
