Components [12/2021 - ]

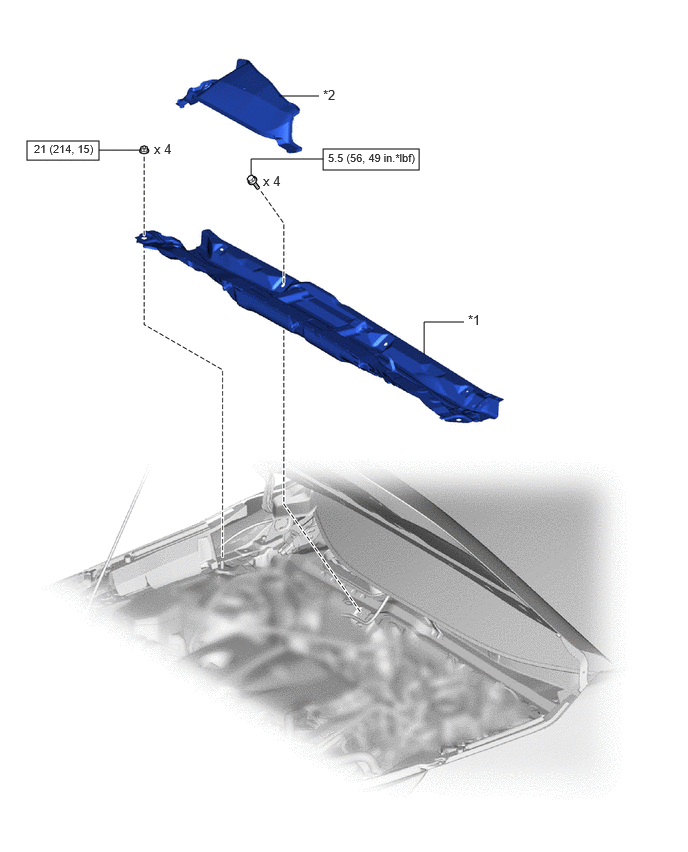

Fig 1: Brake Booster (w/o Vacuum Brake Booster) Replacement Components With Torque Specifications [12/2021 - ] (1 Of 5)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | COWL VENTILATOR PANEL SUB-ASSEMBLY | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |

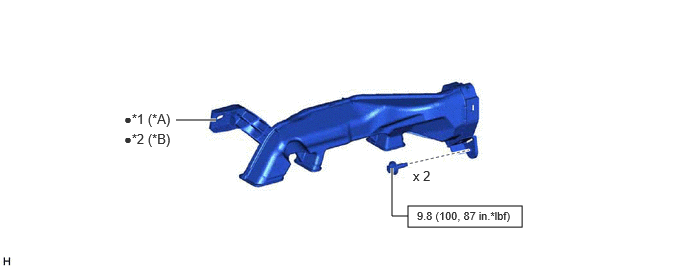

Fig 2: Brake Booster (w/o Vacuum Brake Booster) Replacement Components With Torque Specifications [12/2021 - ] (2 Of 5)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for TMC Made | *B | for TMMC Made |
| *1 | NO. 1 AIR DUCT | *2 | NO. 2 AIR DUCT SUB-ASSEMBLY |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |

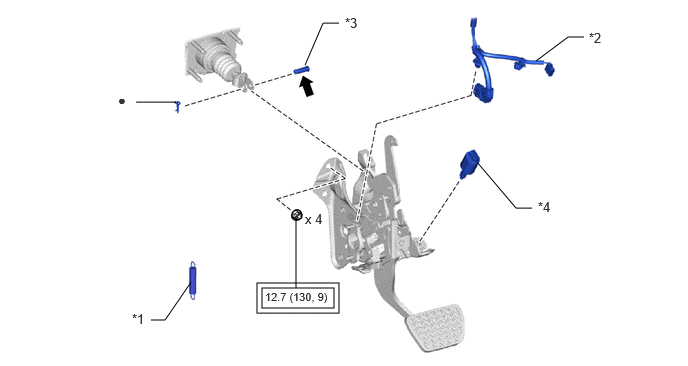

Fig 3: Brake Booster (w/o Vacuum Brake Booster) Replacement Components With Torque Specifications [12/2021 - ] (3 Of 5)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | BRAKE PEDAL RETURN SPRING | *2 | ENGINE ROOM MAIN WIRE |
| *3 | PUSH ROD PIN | *4 | STOP LIGHT SWITCH ASSEMBLY |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | • | Non-reusable part | |
| Lithium soap base glycol grease | - | - |

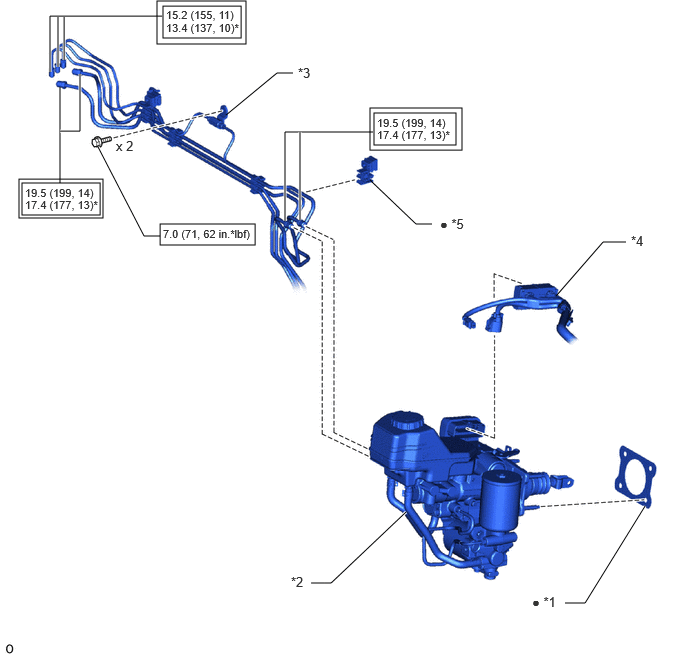

Fig 4: Brake Booster (w/o Vacuum Brake Booster) Replacement Components With Torque Specifications [12/2021 - ] (4 Of 5)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | BRAKE BOOSTER GASKET | *2 | BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY |
| *3 | BRAKE LINE | *4 | ENGINE ROOM MAIN WIRE |
| *5 | NO. 2 BRAKE TUBE CLAMP | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | N.m (kgf/cm, ft.lbf): Specified torque | ||
| * | For use with a union nut wrench | • | Non-reusable part |

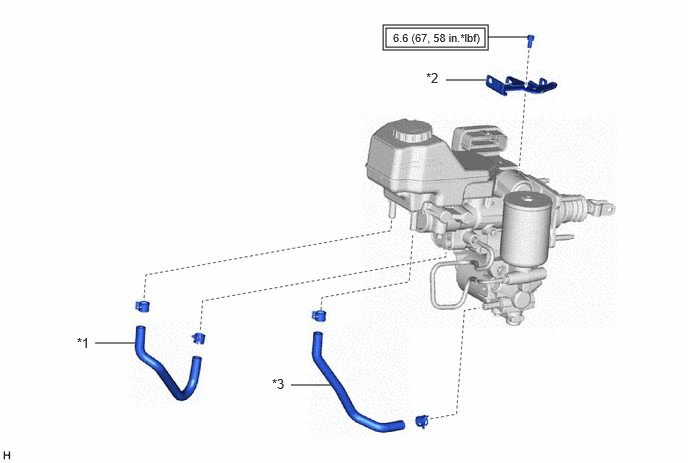

Fig 5: Brake Booster (w/o Vacuum Brake Booster) Replacement Components With Torque Specifications [12/2021 - ] (5 Of 5)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | NO. 1 RESERVOIR HOSE | *2 | NO. 1 WIRE CLAMP BRACKET |
| *3 | NO. 2 RESERVOIR HOSE | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | - | - |
