Components [11/2018 - 12/2021]

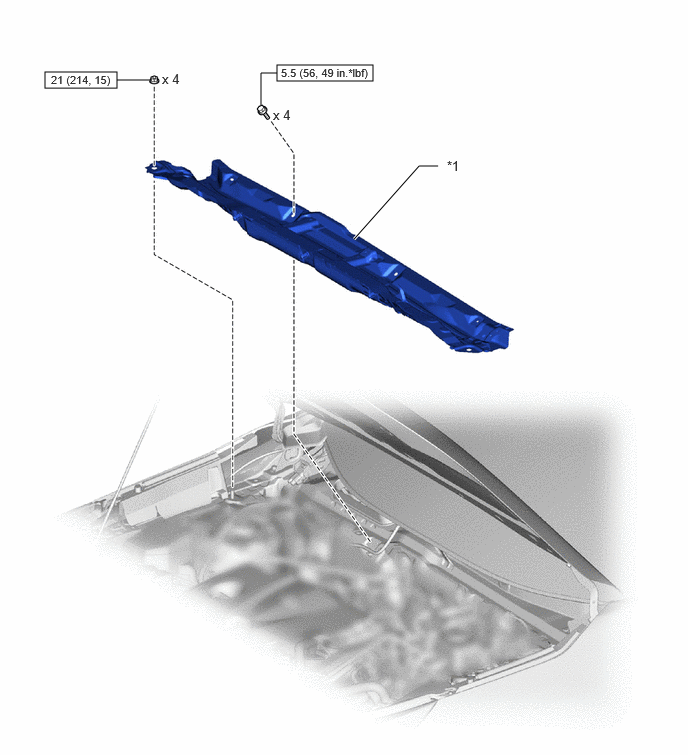

Fig 1: Brake Booster (w/o Vacuum Brake Booster) Replacement Components With Torque Specifications [11/2018 - 12/2021] (1 Of 4)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | COWL VENTILATOR PANEL SUB-ASSEMBLY | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |

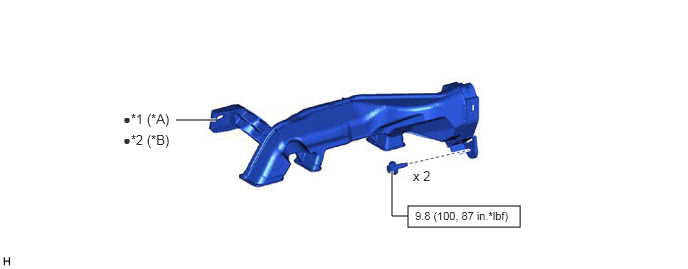

Fig 2: Brake Booster (w/o Vacuum Brake Booster) Replacement Components With Torque Specifications [11/2018 - 12/2021] (2 Of 4)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for TMC Made | *B | for TMMC Made |
| *1 | NO. 1 AIR DUCT | *2 | NO. 2 AIR DUCT SUB-ASSEMBLY |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |

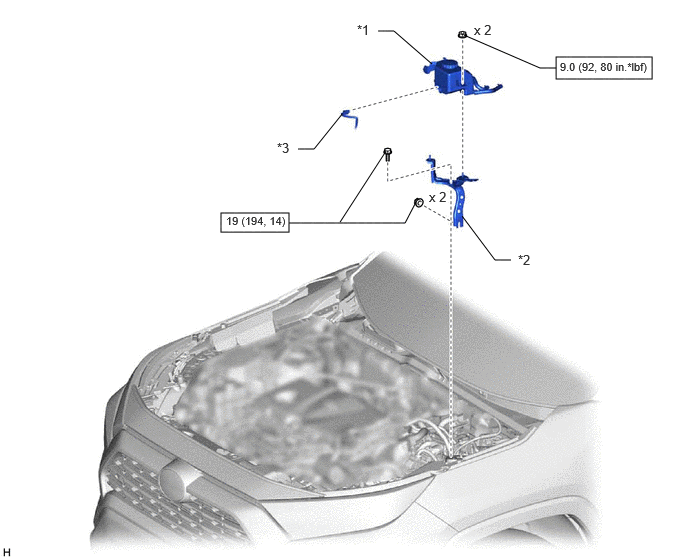

Fig 3: Brake Booster (w/o Vacuum Brake Booster) Replacement Components With Torque Specifications [11/2018 - 12/2021] (3 Of 4)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | BRAKE MASTER CYLINDER RESERVOIR WITH RESERVOIR HOSE | *2 | RESERVOIR BRACKET |
| *3 | CONNECTOR | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |

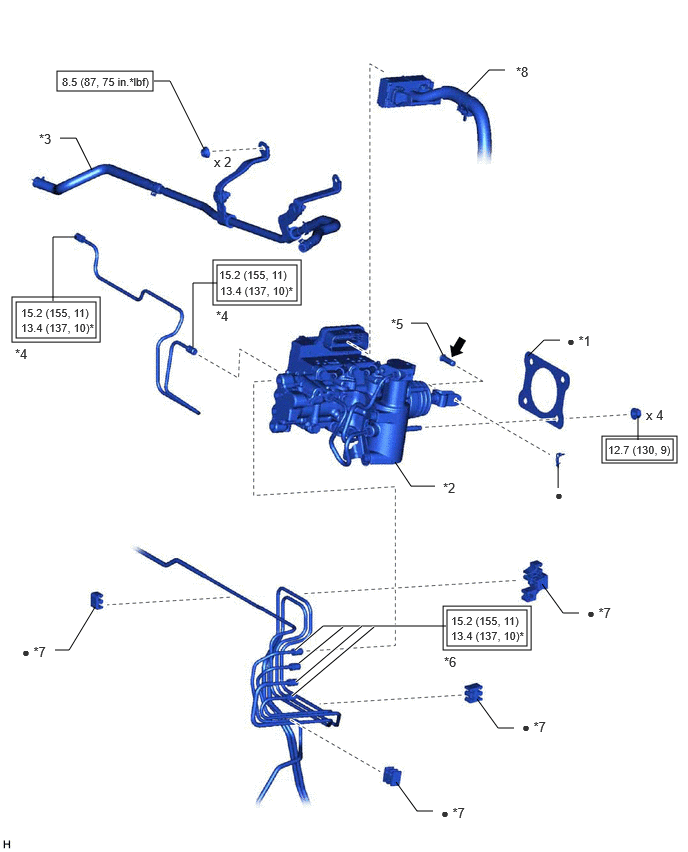

Fig 4: Brake Booster (w/o Vacuum Brake Booster) Replacement Components With Torque Specifications [11/2018 - 12/2021] (4 Of 4)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | BRAKE BOOSTER GASKET | *2 | BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY |
| *3 | NO. 1 BRAKE ACTUATOR TUBE | *4 | NO. 4 FRONT BRAKE TUBE |
| *5 | PUSH ROD PIN | *6 | BRAKE LINE |
| *7 | BRAKE TUBE CLAMP | *8 | WIRE HARNESS |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | N.m (kgf/cm, ft.lbf): Specified torque | ||
| * | For use with a union nut wrench | • | Non-reusable part |
| Lithium soap base glycol grease | - | - |
