Reassembly [11/2018 - ]: Procedure

  1. INSTALL VACUUM SENSOR ASSEMBLY (w/ Stop And Start System)

    Refer to INSTALLATION [11/2018 - ]

  2. INSTALL VACUUM WARNING SWITCH ASSEMBLY
    1. Install a new vacuum warning switch grommet to the brake booster assembly.
    2. Install the vacuum warning switch assembly to the brake booster assembly as shown in the illustration.

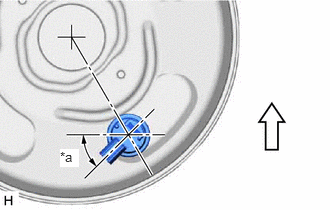

      GTY850772Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a 45°
      Up
  3. INSTALL BRAKE VACUUM CHECK VALVE ASSEMBLY
    1. Install a new check valve grommet to the brake booster assembly.
    2. Install the brake vacuum check valve assembly to the brake booster assembly.

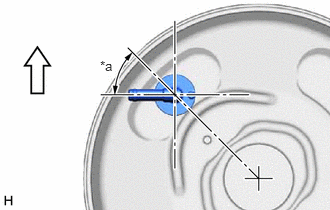

      GTY862643Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a 45°
      Up
