Components [11/2018 - ]

Fig 1: Roof Drip Side Finish Moulding Replacement Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	w/ Roof Rack	-	-
*1	REAR ROOF DRIP SIDE FINISH MOULDING LH	*2	ROOF DRIP SIDE FINISH MOULDING CLIP
•	Non-reusable part	-	-

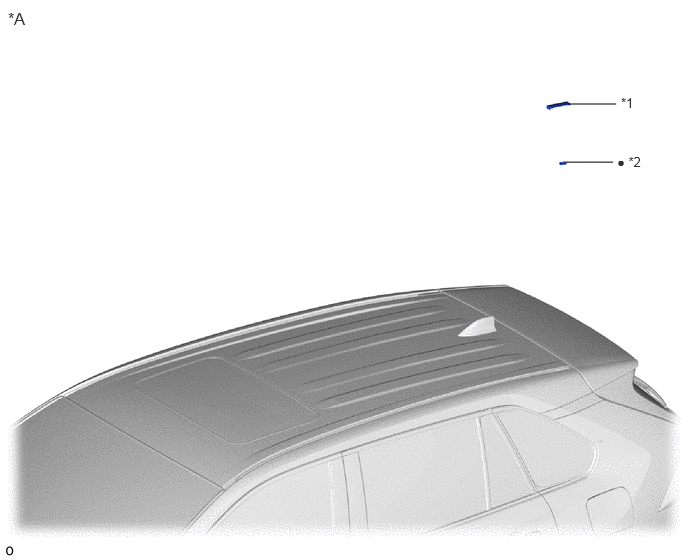

Fig 2: Roof Drip Side Finish Moulding Replacement Components (2 Of 2)

*A	w/o Roof Rack	-	-
*1	ROOF DRIP SIDE FINISH MOULDING CLIP	*2	ROOF DRIP SIDE FINISH MOULDING LH
•	Non-reusable part	-	-
