Components [11/2018 - ]

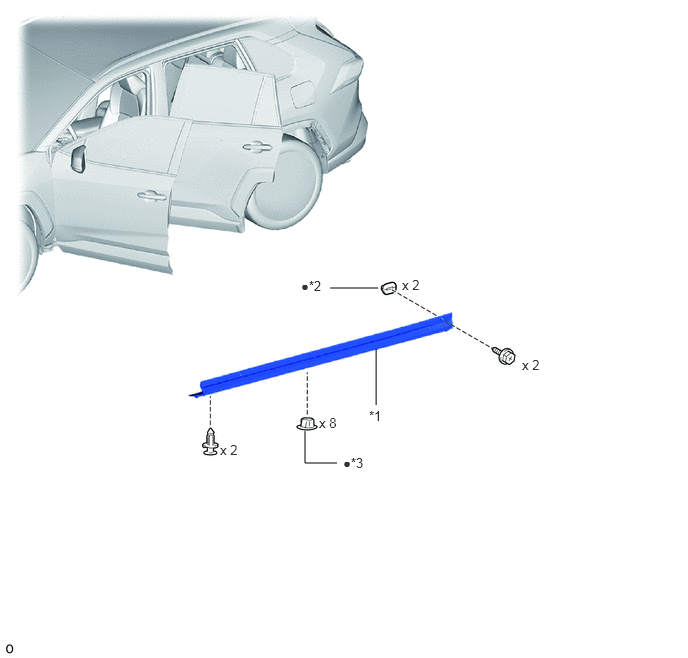

Fig 1: Rocker Panel Moulding Replacement Components
GTY897361Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 BODY ROCKER PANEL MOULDING ASSEMBLY LH *2 GROMMET
*3 CLIP - -
• Non-reusable part - -
