Components [11/2018 - 12/2021]

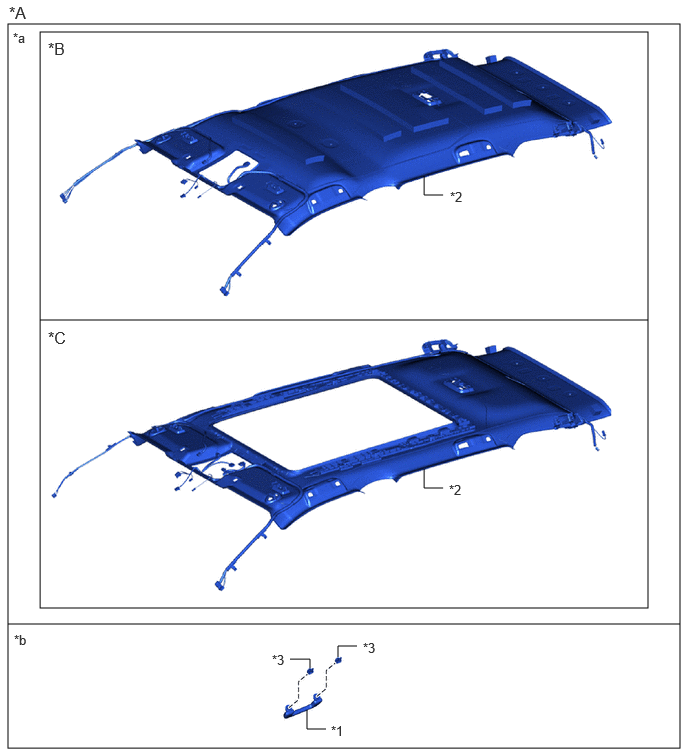

Fig 1: Roof Rack Replacement Components [11/2018 - 12/2021] (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	except Off Road Package	*B	except Panoramic Moon Roof
*C	for Panoramic Moon Roof	-	-
*1	ASSIST GRIP ASSEMBLY	*2	ROOF HEADLINING ASSEMBLY
*3	ASSIST GRIP COVER	-	-
*a	When removing together with the roof rack leg.	*b	When the roof rack leg is left on the vehicle side.

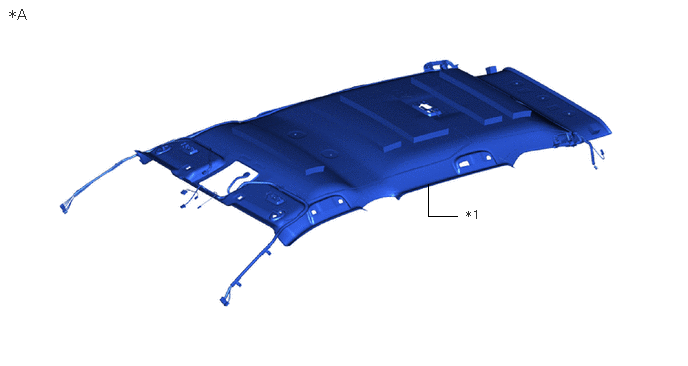

Fig 2: Roof Rack Replacement Components [11/2018 - 12/2021] (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	for Off Road Package	-	-
*1	ROOF HEADLINING ASSEMBLY	-	-

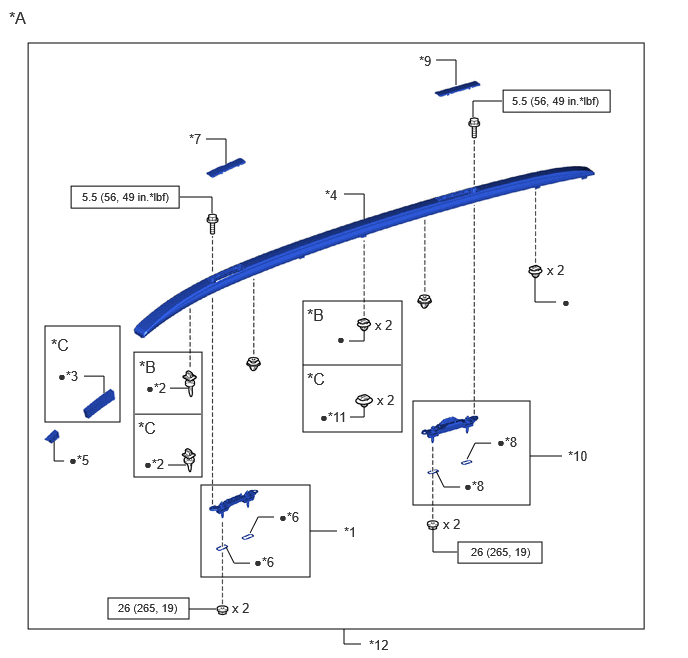

Fig 3: Roof Rack Replacement Components With Torque Specifications [11/2018 - 12/2021] (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	except Off Road Package	*B	except Panoramic Moon Roof
*C	for Panoramic Moon Roof	-	-
*1	FRONT ROOF RACK LEG LH	*2	FRONT ROOF RACK RETAINER LH
*3	FRONT ROOF SIDE GARNISH PROTECTOR LH	*4	FRONT ROOF SIDE GARNISH SUB-ASSEMBLY LH
*5	FRONT ROOF SIDE RAIL PAD LH	*6	NO. 1 ROOF CARRIER SEAL LH
*7	NO. 1 ROOF SIDE GARNISH LID LH	*8	NO. 2 ROOF CARRIER SEAL LH
*9	NO. 2 ROOF SIDE GARNISH LID LH	*10	REAR ROOF RACK LEG LH
*11	REAR ROOF RACK RETAINER LH	*12	ROOF SIDE RAIL GARNISH SUB-ASSEMBLY LH
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part

Fig 4: Roof Rack Replacement Components With Torque Specifications [11/2018 - 12/2021] (4 Of 5)

Callout	Description	Callout	Description
*A	except Off Road Package	-	-
*1	NO. 3 ROOF CARRIER SEAL LH	*2	NO. 4 ROOF CARRIER SEAL LH
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part

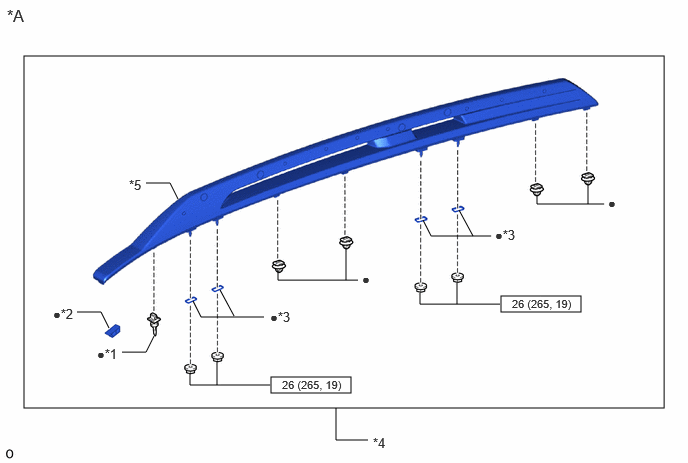

Fig 5: Roof Rack Replacement Components With Torque Specifications [11/2018 - 12/2021] (5 Of 5)

Callout	Description	Callout	Description
*A	for Off Road Package	-	-
*1	FRONT ROOF RACK RETAINER LH	*2	FRONT ROOF SIDE RAIL PAD LH
*3	NO. 2 ROOF CARRIER SEAL LH	*4	ROOF SIDE RAIL GARNISH SUB-ASSEMBLY LH
*5	ROOF SIDE RAIL GARNISH ASSEMBLY LH	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
