Components [11/2018 - ]

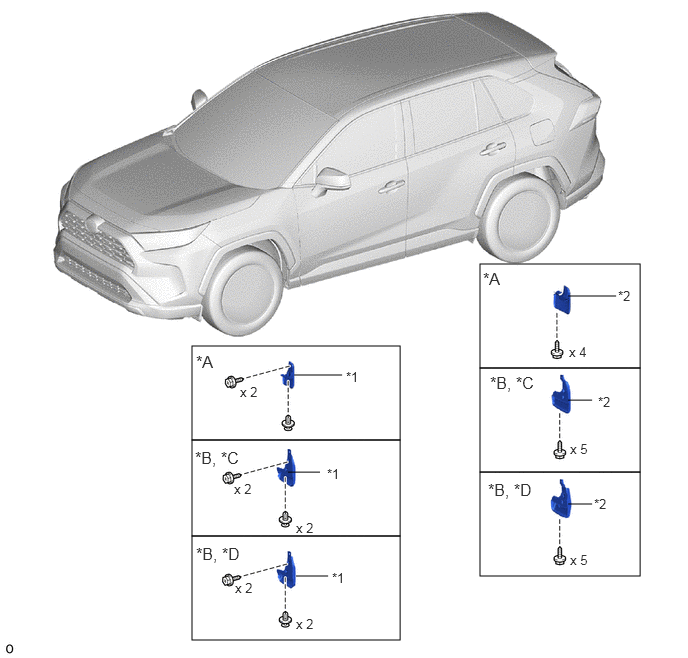

Fig 1: Mudguard Replacement Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	for Short Type	*B	for Long Type
*C	except Off Road Package	*D	for Off Road Package
*1	FRONT FENDER MUDGUARD LH	*2	REAR QUARTER PANEL MUDGUARD LH
