Speed Signal Circuit [08/2020 - 12/2021]: Wiring Diagram

For HV Model:

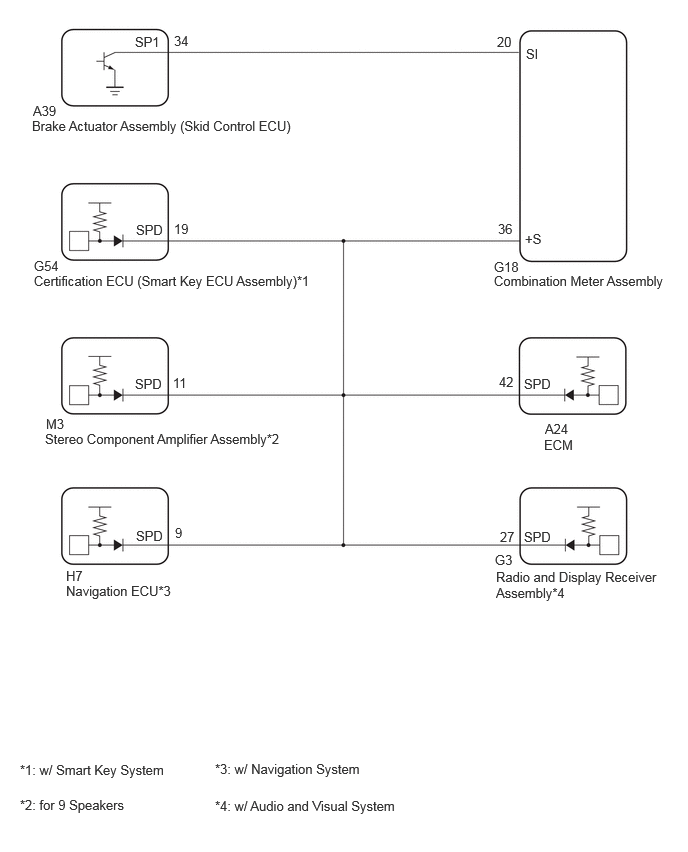

Fig 1: For HV Model: [08/2020 - 12/2021]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

For Gasoline Model:

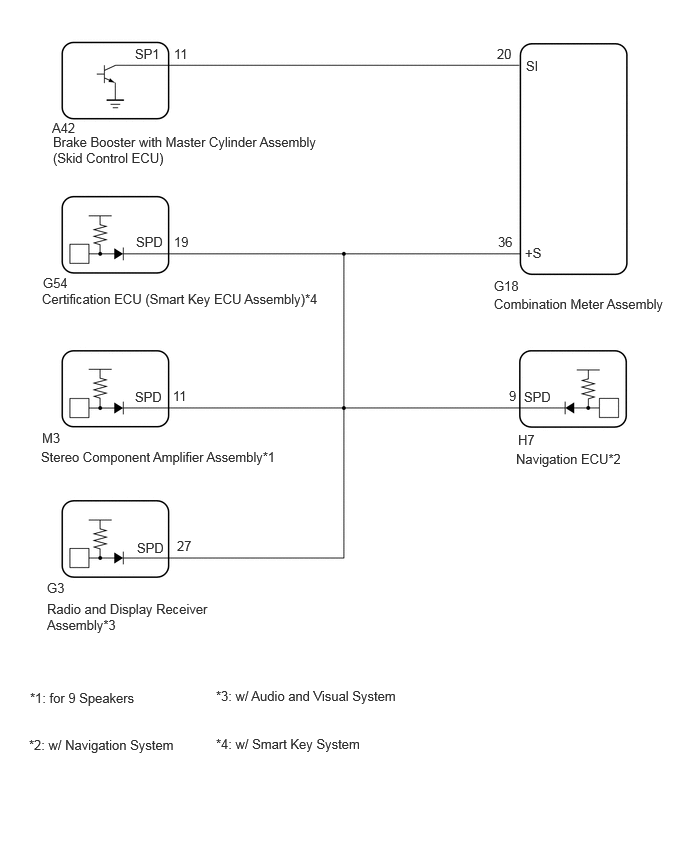

Fig 2: For Gasoline Model: [08/2020 - 12/2021]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
