Operating Light Control Rheostat does not Change Light Brightness [10/2022 - ]: Wiring Diagram

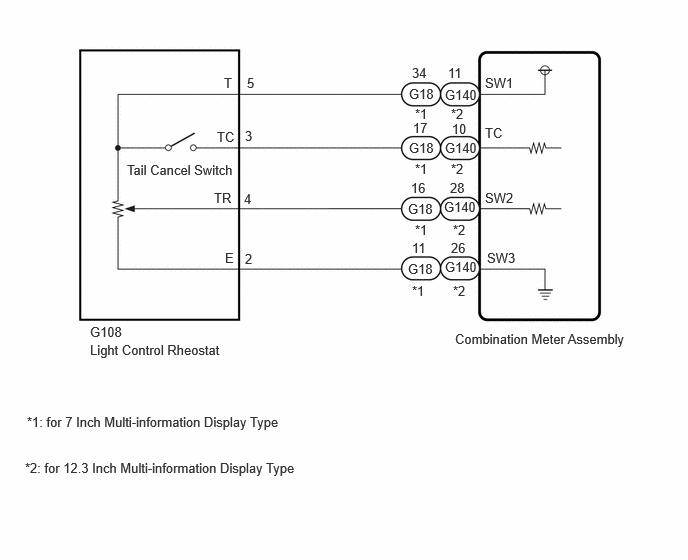

Fig 1: Operating Light Control Rheostat Does Not Change Light Brightness [10/2022 - ]
GTY1110339Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
