Installation [06/2020 - 10/2022]: Procedure

  1. INSTALL STEERING PAD SWITCH ASSEMBLY

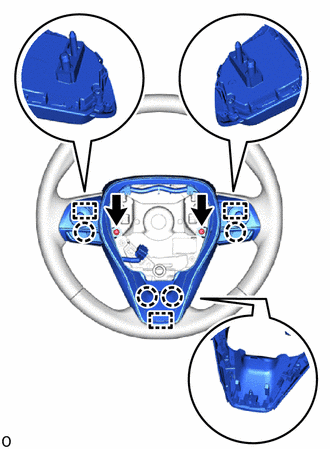

    1. Engage the 4 claws and 3 guide pins to install the steering pad switch assembly.
      GTY976389Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the 2 screws.
    3. Connect the connectors to the spiral cable sub-assembly.
  2. INSTALL STEERING WHEEL PAD ASSEMBLY

    Refer to INSTALLATION [06/2020 - 10/2022]

  3. CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL

    Refer to INSTALLATION [06/2020 - 10/2022]

  4. INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL

    Refer to WORK PROCEDURE [06/2020 - 10/2022]

    HINT:

    When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.

    Refer to AUTOMATIC LEARNING CHART [06/2020 - 12/2021] , or refer to AUTOMATIC LEARNING CHART [12/2021 - ]

  5. CHECK SRS WARNING LIGHT

    Refer to OPERATION CHECK [06/2020 - ]
