Removal [12/2021 - 10/2022]: Procedure

  1. PRECAUTION
    WARNING:

    Be sure to read precaution thoroughly before servicing.

    Refer to PRECAUTION [06/2020 - 10/2022]

    GTY824211Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [06/2020 - 10/2022]

  2. PLACE FRONT WHEELS FACING STRAIGHT AHEAD
  3. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

    Refer to REMOVAL [12/2021 - 10/2022]

    WARNING:
    • Wait at least 60 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.
      GTY684647Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    • If the airbag deploys for any reason, it may cause a serious accident.
  4. REMOVE FRONT DOOR SCUFF PLATE LH

    Refer to PROCEDURE - Step 23

  5. REMOVE COWL SIDE TRIM BOARD LH

    Refer to PROCEDURE - Step 14

  6. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 15

  7. REMOVE INSTRUMENT CLUSTER FINISH PANEL GARNISH

    Refer to PROCEDURE - Step 8

  8. REMOVE INSTRUMENT SIDE PANEL LH

    Refer to PROCEDURE - Step 17

  9. REMOVE FUSE BOX OPENING COVER

    Refer to PROCEDURE - Step 19

  10. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY

    Refer to PROCEDURE - Step 20

  11. REMOVE LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY

    Refer to REMOVAL [12/2021 - 10/2022]

  12. REMOVE STEERING WHEEL ASSEMBLY

    Refer to REMOVAL [12/2021 - 10/2022]

  13. REMOVE INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY

    Refer to PROCEDURE - Step 9

  14. REMOVE LOWER STEERING COLUMN COVER
    1. Remove the 3 screws.
      GTY874945Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. GTY929201Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hands Here
      Remove in this Direction

      While pressing the push area shown in the illustration to detach the 2 claws, slightly lower the lower steering column cover.

  15. REMOVE UPPER STEERING COLUMN COVER
    GTY931303Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    Remove in this Direction
    1. Detach the claw and separate the upper steering column cover.
    2. Detach the 2 claws and 4 clips to remove the upper steering column cover.
      GTY874933Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE COMBINATION SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY
    NOTE:
    • Do not replace the spiral cable with sensor sub-assembly with the battery connected and the ignition switch to ON.
    • Do not rotate the spiral cable with sensor sub-assembly without the steering wheel assembly installed, with the battery connected and the ignition switch to ON.
    • Ensure that the steering wheel assembly is installed and aligned straight when inspecting the steering sensor.
    1. Disconnect each connector from the turn signal switch assembly with spiral cable sub-assembly.
    2. Using pliers, support the band clamp while loosened.
      GTY874931Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Detach the claw to remove the turn signal switch assembly with spiral cable sub-assembly from the steering column assembly.
      GTY874934Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. REMOVE NO. 2 AIR DUCT SUB-ASSEMBLY

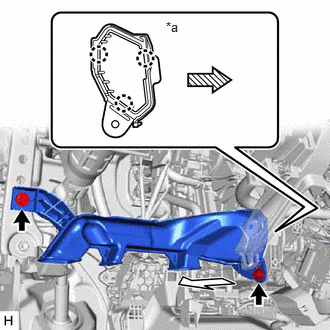

    1. Remove the 2 bolts.
      GTY977370Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a View A
      Front
    2. Detach the 3 claws to remove the No. 2 air duct sub-assembly.
      NOTE:

      Be careful not to deform or damage the lower heater case of the air conditioner unit assembly when removing the No. 2 air duct sub-assembly.

  18. REMOVE FRONT WHEEL LH

    Refer to REMOVAL [06/2020 - ]

  19. DISCONNECT STEERING INTERMEDIATE SHAFT ASSEMBLY

    Refer to PROCEDURE - Step 5

  20. REMOVE STEERING COLUMN HOLE COVER
    1. Turn back the floor carpet.
    2. Remove the clip.
      GTY874927Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Detach the 2 clips to remove the steering column hole cover.
  21. REMOVE STEERING INTERMEDIATE SHAFT ASSEMBLY
    1. Using a screwdriver, loosen the clamp as shown in the illustration.
      GTY874874Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and slide the steering intermediate shaft assembly.
      NOTE:

      Do not remove the steering intermediate shaft assembly from the steering column assembly.

      GTY868519Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Matchmark
    3. Put matchmarks on the steering intermediate shaft assembly and steering column assembly.
    4. Remove the steering intermediate shaft assembly from the steering column assembly.
  22. REMOVE STEERING COLUMN ASSEMBLY
    1. Disconnect each connector and disengage each wire harness clamp from the steering column assembly.

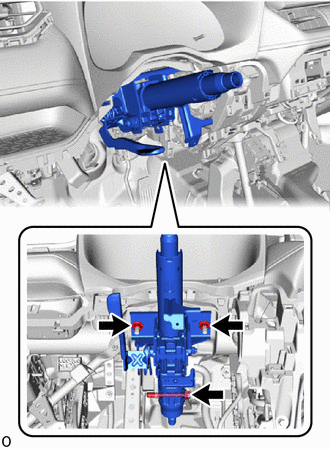

    2. Remove the bolt, 2 nuts and steering column assembly.
      GTY1115872Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
