Components [06/2020 - ]

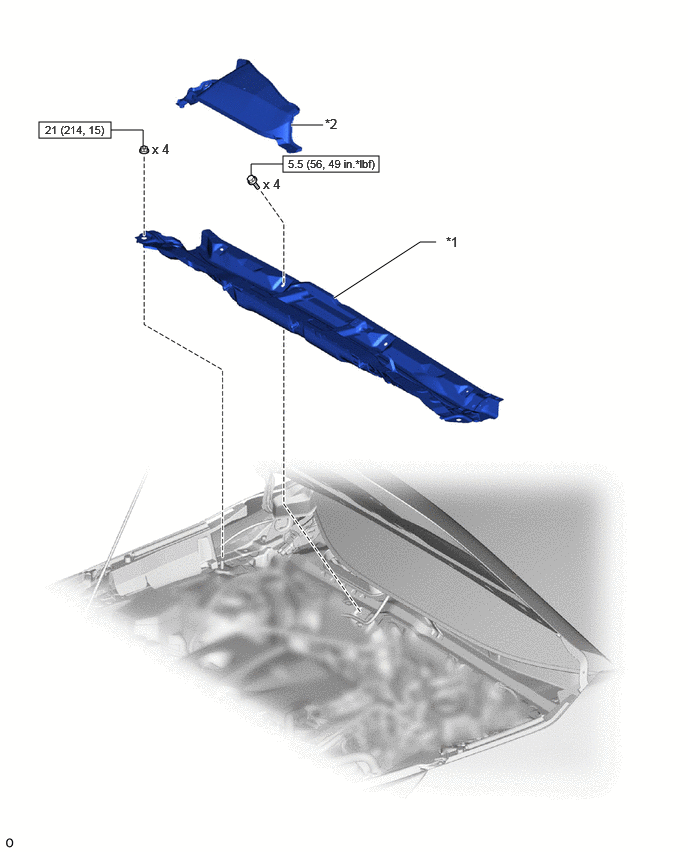

Fig 1: Brake Pedal Replacement Components With Torque Specifications (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	COWL VENTILATOR PANEL SUB-ASSEMBLY	*2	COWL VENTILATOR SPLASH SHIELD
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

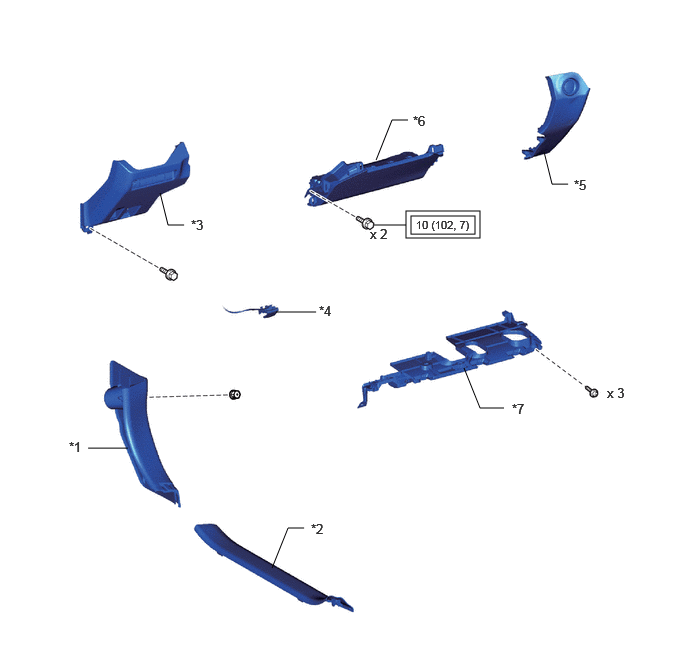

Fig 2: Brake Pedal Replacement Components With Torque Specifications (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	COWL SIDE TRIM BOARD LH	*2	FRONT DOOR SCUFF PLATE LH
*3	FUSE BOX OPENING COVER	*4	HOOD LOCK CONTROL LEVER SUB-ASSEMBLY
*5	LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY	*6	LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY
*7	NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)	-	-

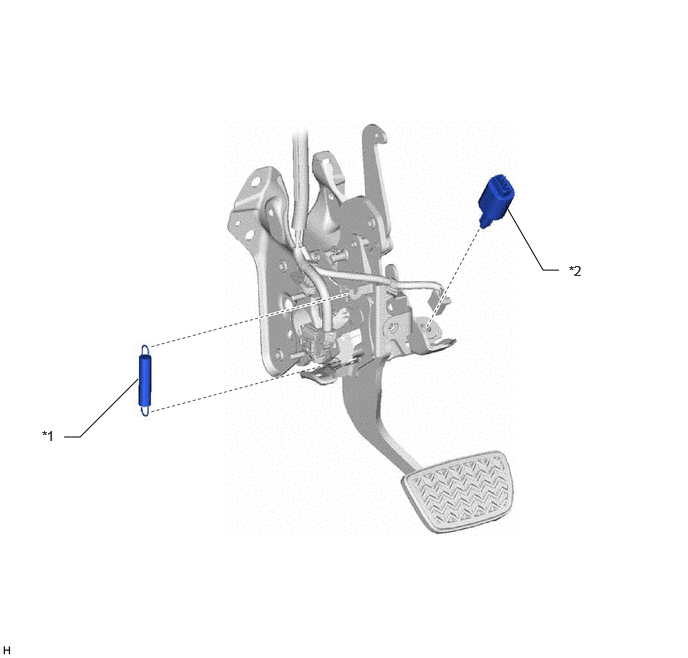

Fig 3: Brake Pedal Replacement Components (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

BRAKE PEDAL RETURN SPRING

STOP LIGHT SWITCH ASSEMBLY

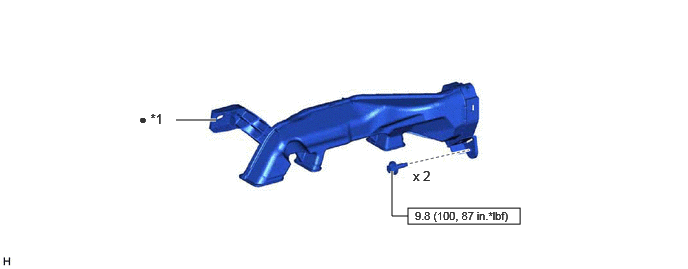

Fig 4: Brake Pedal Replacement Components With Torque Specifications (4 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	NO. 3 AIR DUCT SUB-ASSEMBLY	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part

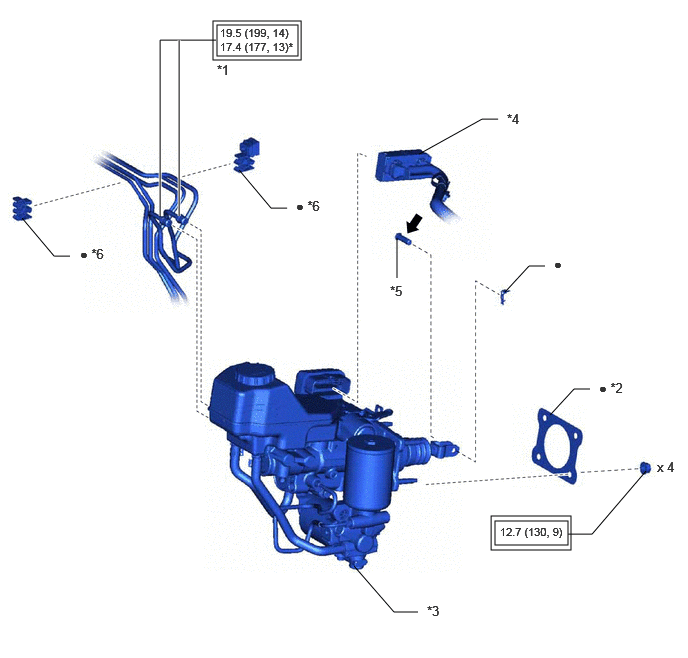

Fig 5: Brake Pedal Replacement Components With Torque Specifications (5 Of 6)

Callout	Description	Callout	Description
*1	BRAKE LINE	*2	BRAKE MASTER CYLINDER GASKET
*3	BRAKE MASTER CYLINDER WITH PUMP ASSEMBLY	*4	ENGINE ROOM MAIN WIRE
*5	PUSH ROD PIN	*6	BRAKE TUBE CLAMP
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)	*	For use with a union nut wrench
•	Non-reusable part		Lithium soap base glycol grease

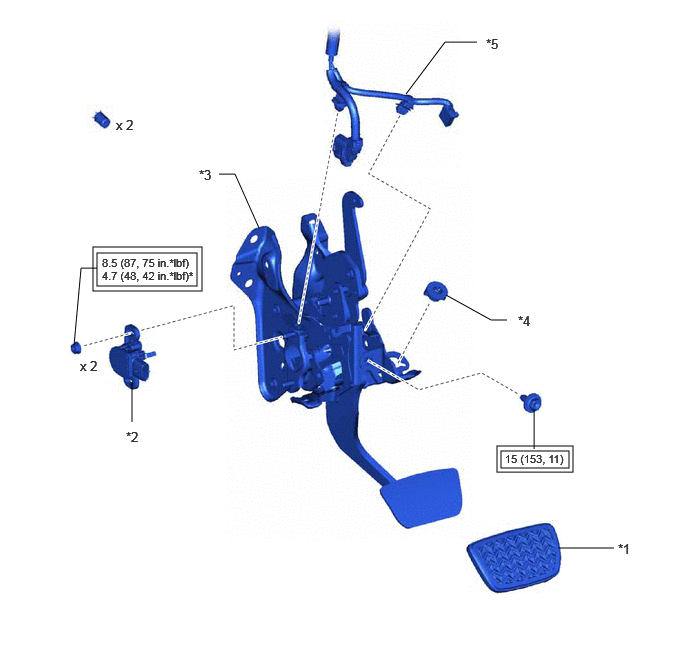

Fig 6: Brake Pedal Replacement Components With Torque Specifications (6 Of 6)

Callout	Description	Callout	Description
*1	BRAKE PEDAL PAD	*2	BRAKE PEDAL STROKE SENSOR ASSEMBLY
*3	BRAKE PEDAL SUPPORT ASSEMBLY	*4	STOP LIGHT SWITCH MOUNTING ADJUSTER
*5	WIRE HARNESS	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)	*	For use with SST
