Components [06/2020 - ]

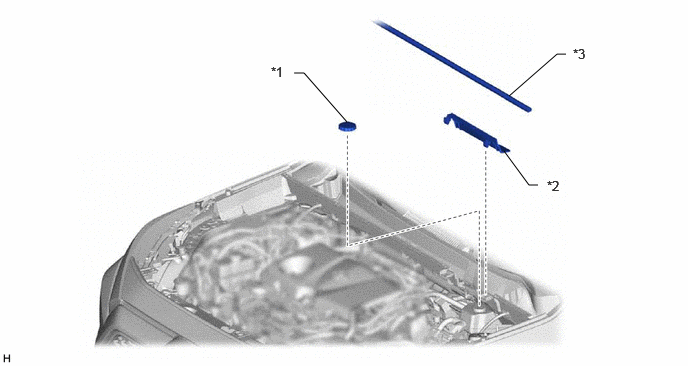

Fig 1: Brake Fluid Replacement Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	BRAKE MASTER CYLINDER RESERVOIR FILLER CAP ASSEMBLY	*2	CENTER COWL TOP VENTILATOR LOUVER
*3	FOOD TO COWL TOP SEAL	-	-

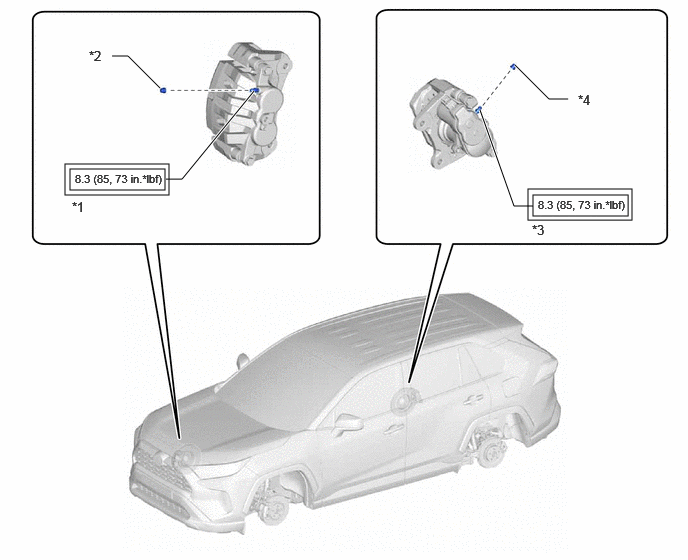

Fig 2: Brake Fluid Replacement Components With Torque Specifications (2 Of 2)

Callout	Description	Callout	Description
*1	FRONT DISC BRAKE BLEEDER PLUG	*2	FRONT DISC BRAKE BLEEDER PLUG CAP
*3	REAR DISC BRAKE BLEEDER PLUG	*4	REAR DISC BRAKE BLEEDER PLUG CAP
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)	-	-
