Components [06/2020 - ]

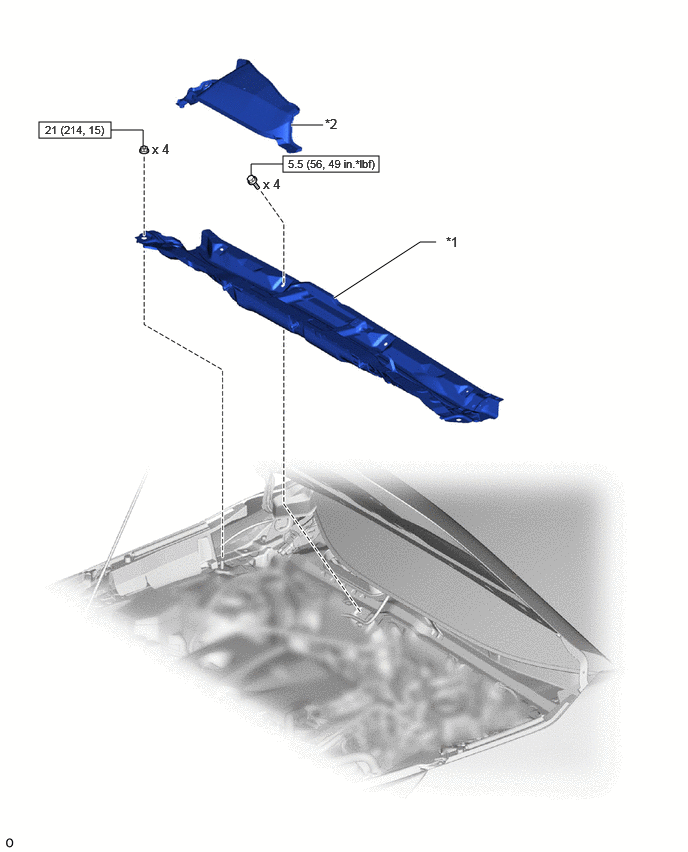

Fig 1: Brake Booster Replacement Components With Torque Specifications (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	COWL VENTILATOR PANEL SUB-ASSEMBLY	*2	COWL VENTILATOR SPLASH SHIELD
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

Fig 2: Brake Pedal Replacement Components (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

BRAKE PEDAL RETURN SPRING

STOP LIGHT SWITCH ASSEMBLY

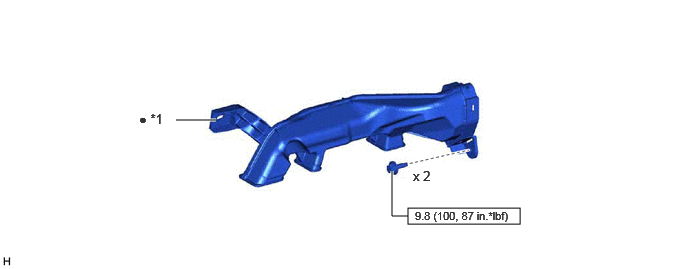

Fig 3: Brake Booster Replacement Components With Torque Specifications (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	NO. 2 AIR DUCT SUB-ASSEMBLY	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part

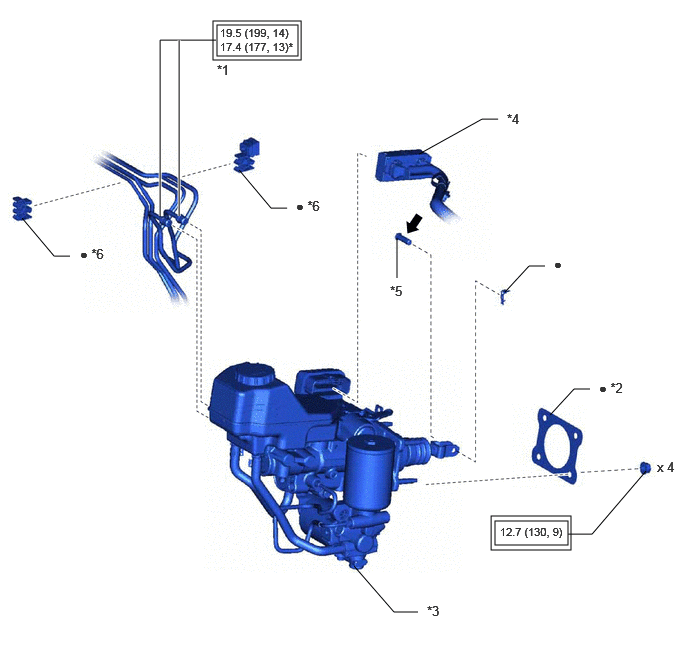

Fig 4: Brake Booster Replacement Components With Torque Specifications (4 Of 5)

Callout	Description	Callout	Description
*1	BRAKE LINE	*2	BRAKE MASTER CYLINDER GASKET
*3	BRAKE MASTER CYLINDER WITH PUMP ASSEMBLY	*4	ENGINE ROOM MAIN WIRE
*5	PUSH ROD PIN	*6	BRAKE TUBE CLAMP
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)	*	For use with a union nut wrench
•	Non-reusable part		Lithium soap base glycol grease

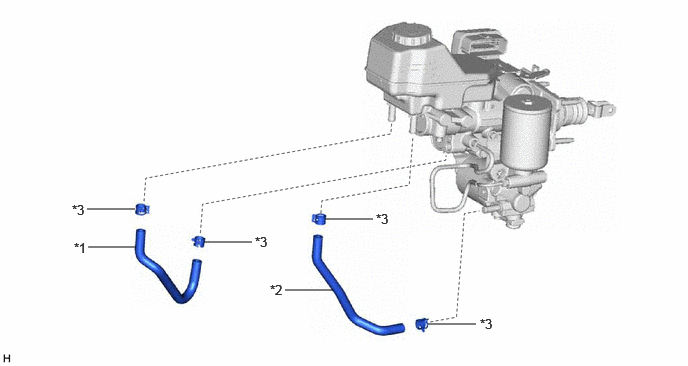

Fig 5: Brake Booster Replacement Components (5 Of 5)

*1	NO. 1 RESERVOIR HOSE	*2	NO. 2 RESERVOIR HOSE
*3	CLIP	-	-
