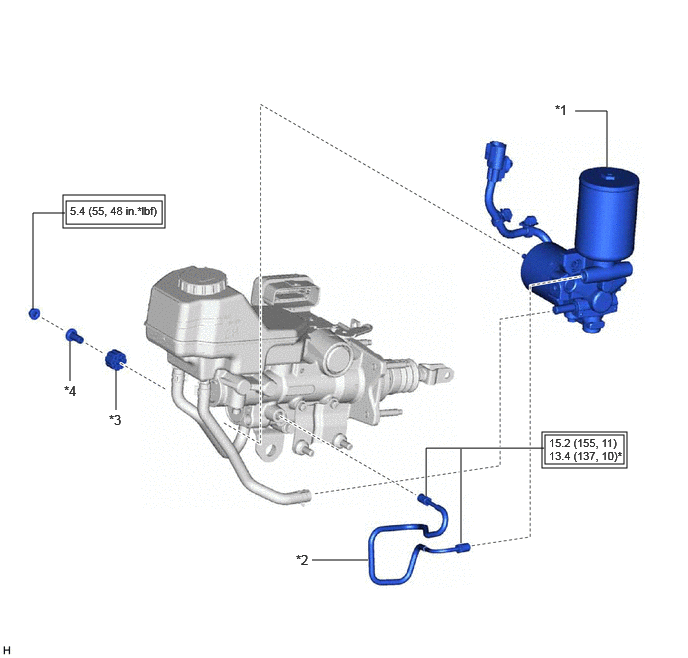

Components [06/2020 - ]
| Callout | Description | Callout | Description |
| *1 | BRAKE BOOSTER PUMP ASSEMBLY | *2 | BRAKE ACTUATOR TUBE |
| *3 | BRAKE BOOSTER PUMP BUSHING | *4 | NO. 1 BRAKE ACTUATOR CASE COLLAR |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | * | For use with a union nut wrench |
