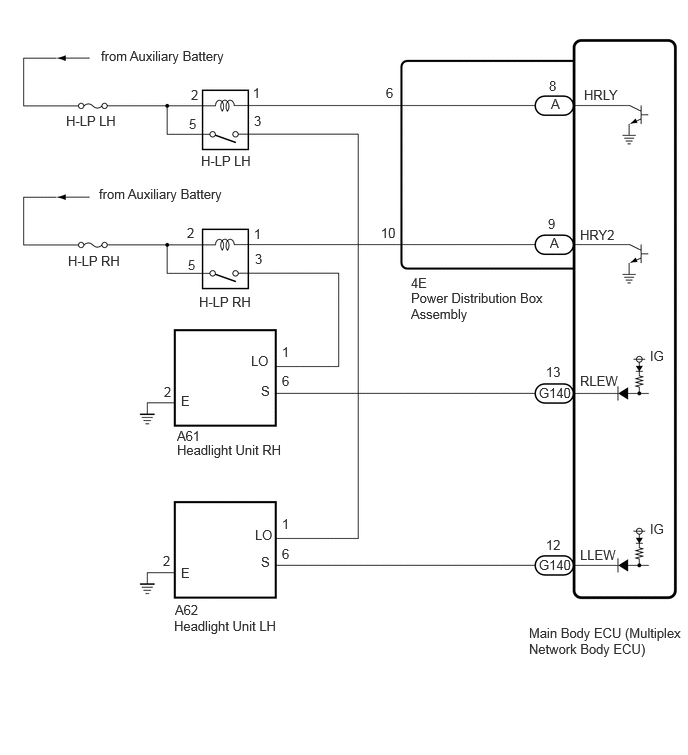

DTC B2439-49: Headlight LH Circuit Internal Electronic Failure; DTC B243A-49: Headlight RH Circuit Internal Electronic Failure [06/2020 - 12/2021]: Wiring Diagram

GTY989944Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
