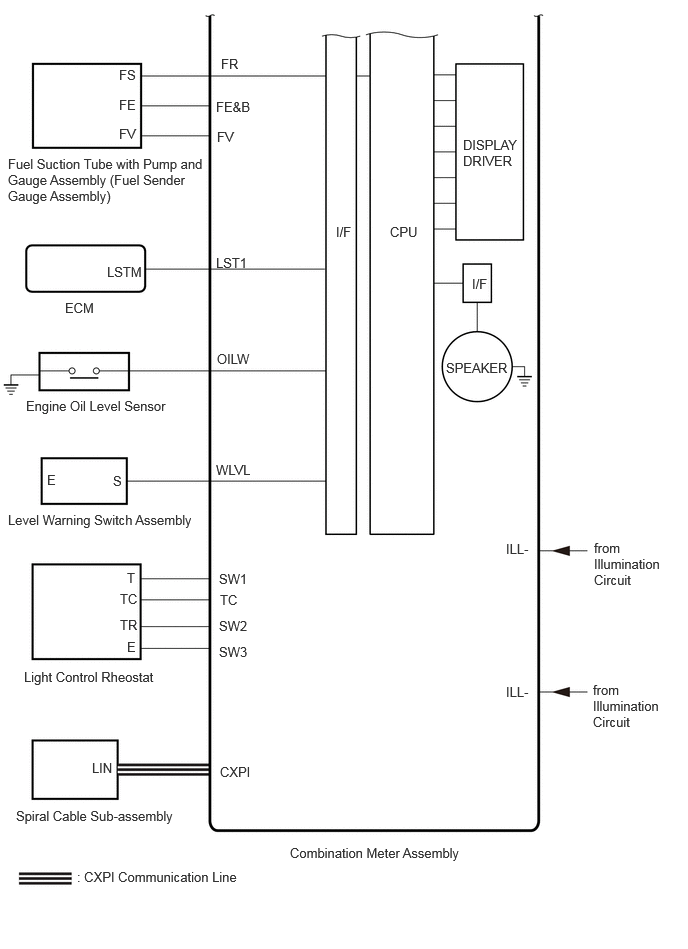

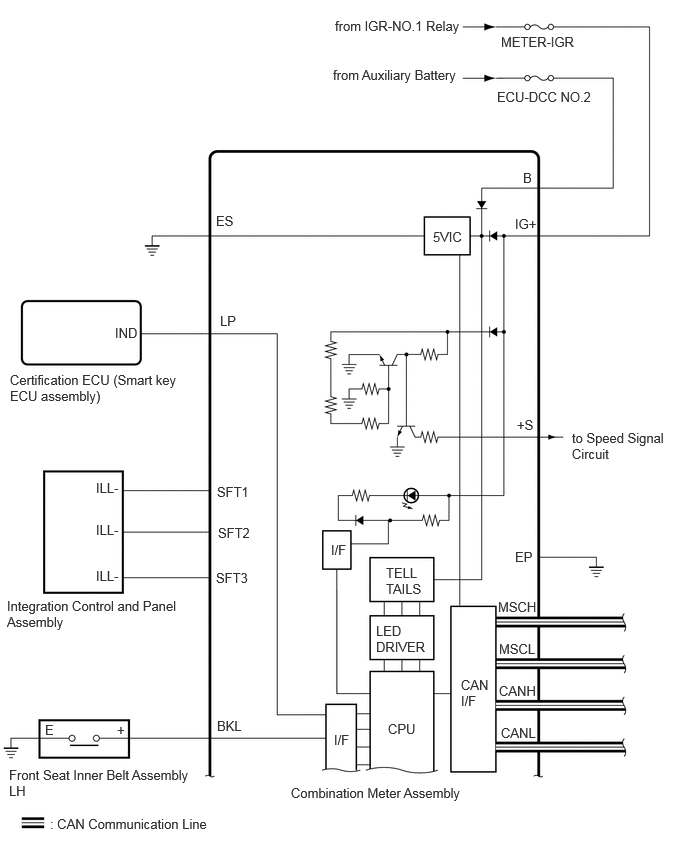

System Diagram [12/2021 - 10/2022]

HINT:

Inspect the communication function by CAN communication system.

Refer to SYSTEM DIAGRAM [12/2021 - 10/2022]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

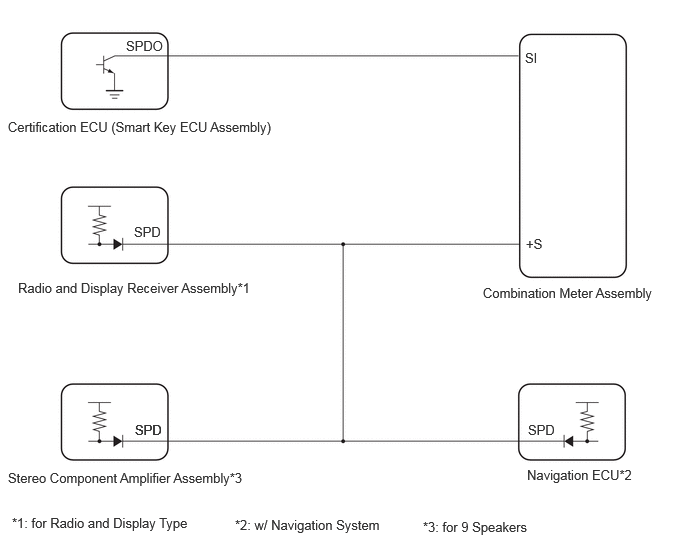

1. Speed Signal Circuit

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

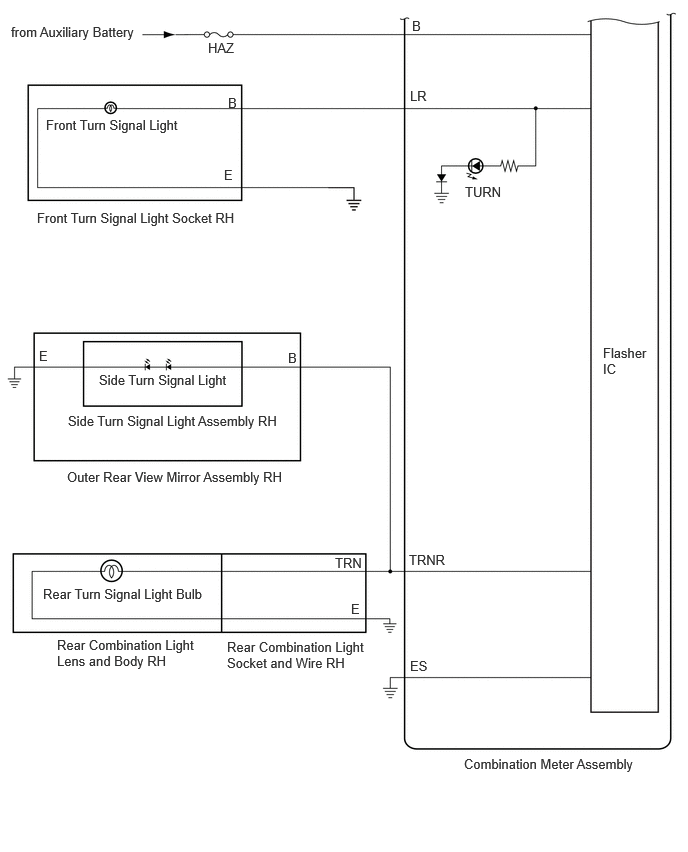

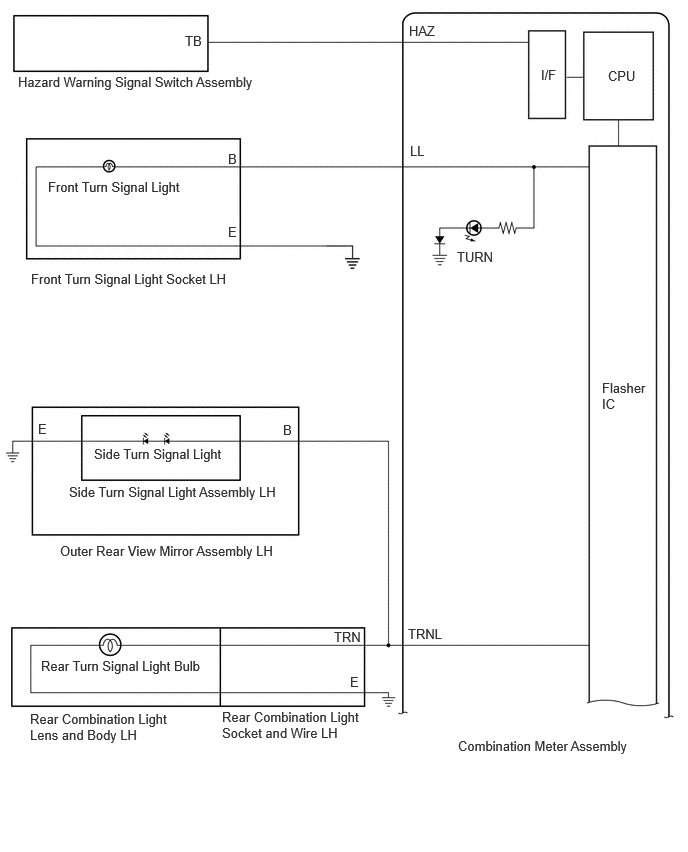

2. Turn Signal Light Circuit

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
