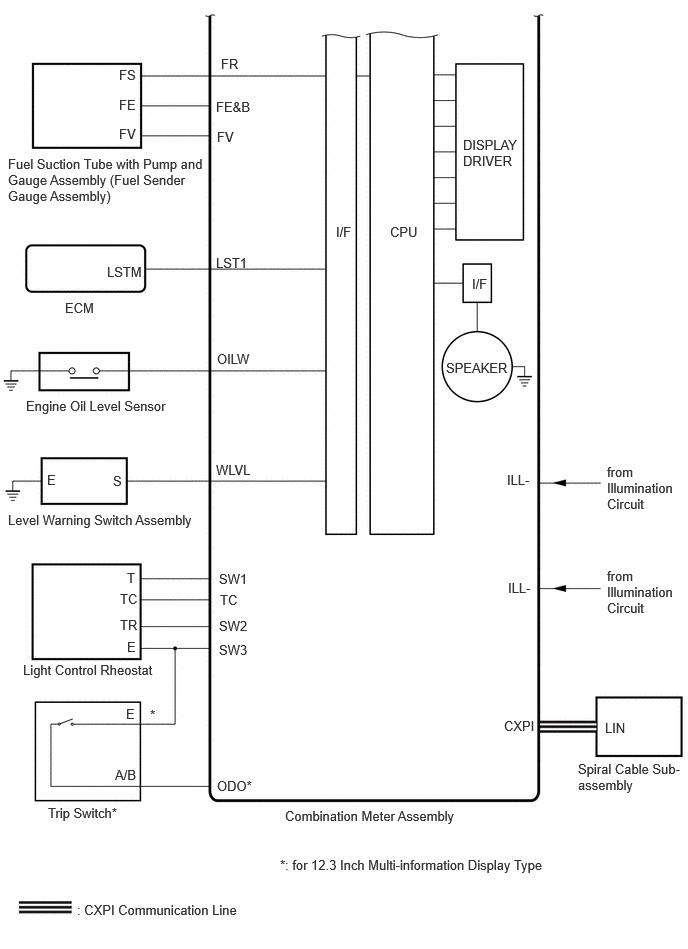

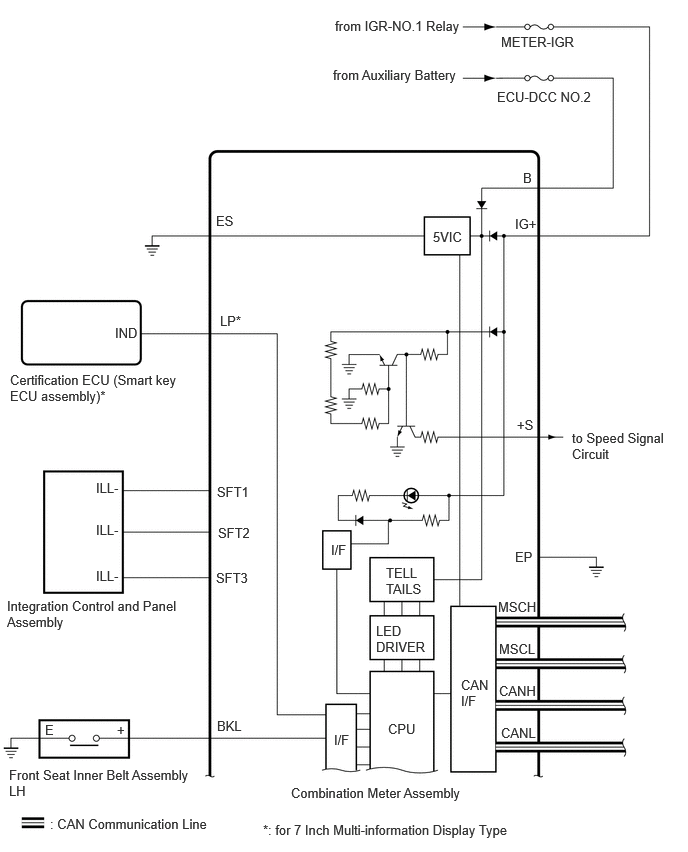

System Diagram [10/2022 - ]

HINT:

Inspect the communication function by CAN communication system.

Refer to SYSTEM DIAGRAM [10/2022 - ]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Speed Signal Circuit

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Turn Signal Light Circuit

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
