Parts Location [06/2020 - 12/2021]: Illustration

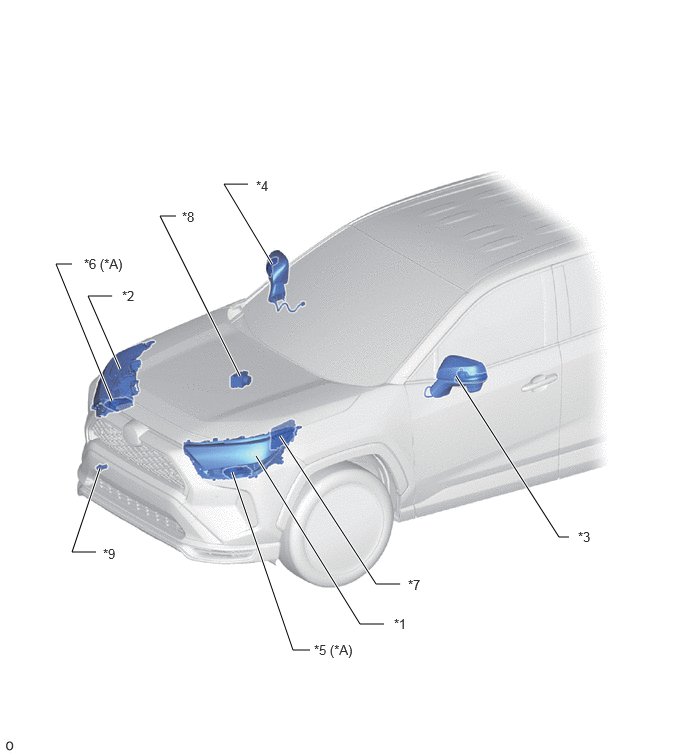

| *A | w/ Headlight ECU | - | - |
| *1 | HEADLIGHT ASSEMBLY LH - HEADLIGHT UNIT ASSEMBLY LH (w/ Headlight ECU) - FRONT TURN SIGNAL LIGHT SOCKET - FRONT TURN SIGNAL LIGHT BULB |
*2 | HEADLIGHT ASSEMBLY RH - HEADLIGHT UNIT ASSEMBLY RH (w/ Headlight ECU) - FRONT TURN SIGNAL LIGHT SOCKET - FRONT TURN SIGNAL LIGHT BULB |
| *3 | OUTER REAR VIEW MIRROR ASSEMBLY LH - SIDE TURN SIGNAL LIGHT ASSEMBLY LH |
*4 | OUTER REAR VIEW MIRROR ASSEMBLY RH - SIDE TURN SIGNAL LIGHT ASSEMBLY RH |
| *5 | NO. 1 HEADLIGHT ECU SUB-ASSEMBLY LH | *6 | NO. 1 HEADLIGHT ECU SUB-ASSEMBLY RH |
| *7 | ECM | *8 | BRAKE ACTUATOR ASSEMBLY (NO. 2 SKID CONTROL ECU) |
| *9 | LEVEL WARNING SWITCH ASSEMBLY | - | - |

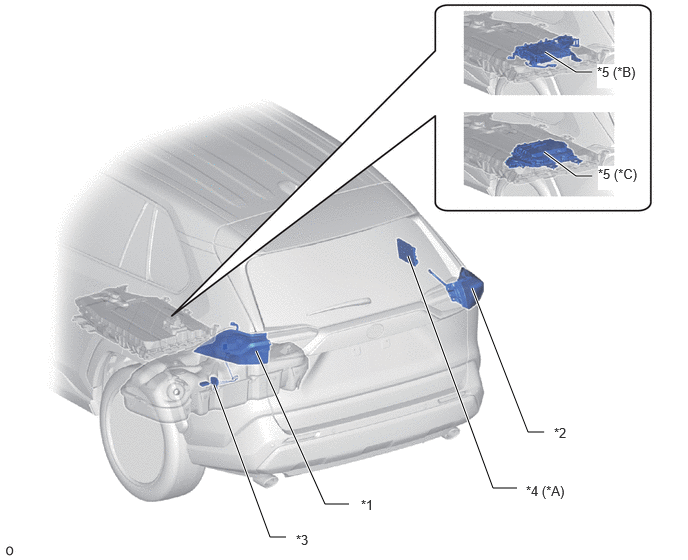

| *A | for 9 Speakers | *B | for 3.3 kW Type |
| *C | for 6.6 kW Type | - | - |
| *1 | REAR COMBINATION LIGHT ASSEMBLY LH - REAR COMBINATION LIGHT SOCKET AND WIRE LH - REAR TURN SIGNAL LIGHT BULB |
*2 | REAR COMBINATION LIGHT ASSEMBLY RH - REAR COMBINATION LIGHT SOCKET AND WIRE RH - REAR TURN SIGNAL LIGHT BULB |
| *3 | FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY - FUEL SENDER GAUGE ASSEMBLY |
*4 | STEREO COMPONENT AMPLIFIER ASSEMBLY |
| *5 | ELECTRIC VEHICLE CHARGER ASSEMBLY | - | - |

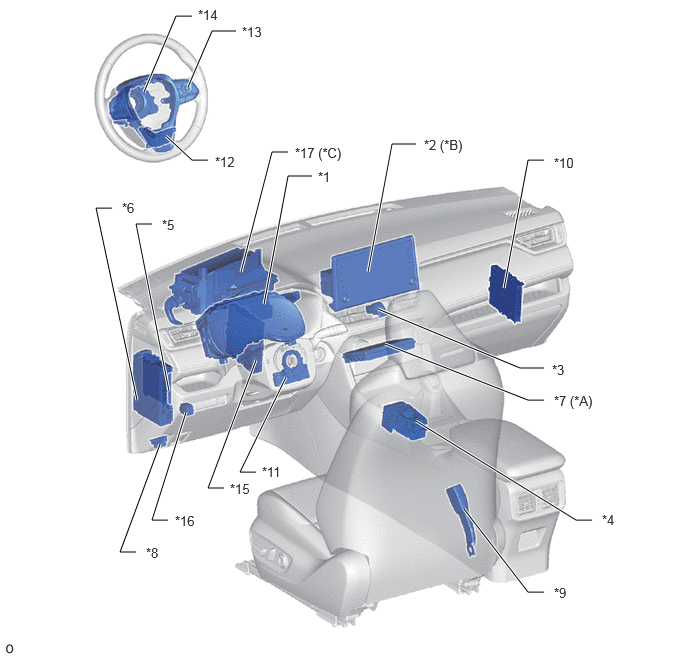

| *A | w/ Navigation System | *B | for Radio and Display Type |
| *C | w/ Headup Display System | - | - |
| *1 | COMBINATION METER ASSEMBLY | *2 | RADIO AND DISPLAY RECEIVER ASSEMBLY |
| *3 | HAZARD WARNING SIGNAL SWITCH ASSEMBLY | *4 | INTEGRATION CONTROL AND PANEL ASSEMBLY |
| *5 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *6 | POWER DISTRIBUTION BOX ASSEMBLY - HAZ FUSE - METER-IGR FUSE - ECU-DCC NO. 2 FUSE |
| *7 | NAVIGATION ECU | *8 | DLC3 |
| *9 | FRONT SEAT INNER BELT ASSEMBLY LH | *10 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) |
| *11 | STEERING SENSOR | *12 | STEERING VIBRATION ECU |
| *13 | STEERING PAD SWITCH ASSEMBLY | *14 | SPIRAL CABLE SUB-ASSEMBLY |
| *15 | HYBRID VEHICLE CONTROL ECU | *16 | LIGHT CONTROL RHEOSTAT |
| *17 | METER MIRROR SUB-ASSEMBLY | - | - |
