Installation [02/2019 - 12/2021]: Procedure

  1. INSTALL REAR TRAILING ARM ASSEMBLY
    1. Using a transmission jack and a wooden block, support the rear No. 2 suspension arm assembly.
      NOTE:
      • When jacking up the rear No. 2 suspension arm assembly, be sure to jack it up slowly.
      • Make sure to perform this operation with the vehicle kept as low as possible.
    2. Install the rear trailing arm assembly to the vehicle with the 2 bolts.

      Torque: 90 N.m (918 kgf/cm, 66 ft.lbf)

    3. Install the rear trailing arm assembly to the rear axle carrier sub-assembly with the 3 bolts and nut.

      Bolt A

      Torque: 135 N.m (1377 kgf/cm, 100 ft.lbf)

      Bolt B

      Torque: 75 N.m (765 kgf/cm, 55 ft.lbf)

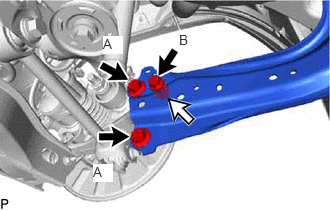

      GTY910401Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL NO. 2 PARKING BRAKE WIRE ASSEMBLY
    1. Install the No. 2 parking brake wire assembly to the rear trailing arm assembly with the nut.

      Torque: 15.5 N.m (158 kgf/cm, 11 ft.lbf)

    2. Engage the 2 clamps.
  3. INSTALL LOWER NO. 2 CONTROL ARM COVER (w/ Cover)

    See step  9

  4. INSTALL NO. 2 FLOOR UNDER COVER (for Gasoline Model LH Side)

    w/ Floor Under Cover:

    Refer to PROCEDURE - Step 12

  5. INSTALL NO. 1 FLOOR UNDER COVER (for Gasoline Model RH Side)

    w/ Floor Under Cover:

    Refer to PROCEDURE - Step 10

  6. INSTALL FRONT FLOOR COVER LH (for Gasoline Model LH Side)

    w/ Floor Under Cover:

    Refer to PROCEDURE - Step 13

  7. INSTALL FRONT FLOOR COVER RH (for Gasoline Model RH Side)

    w/ Floor Under Cover:

    Refer to PROCEDURE - Step 11

  8. INSTALL NO. 2 ENGINE UNDER COVER ASSEMBLY (for Gasoline Model)

    Refer to PROCEDURE - Step 99 [11/2018 - 08/2020] , or refer to PROCEDURE - Step 99 [08/2020 - 12/2021]

  9. INSTALL NO. 1 ENGINE UNDER COVER (for Gasoline Model)

    Refer to PROCEDURE - Step 100 [11/2018 - 08/2020] , or refer to PROCEDURE - Step 100 [08/2020 - 12/2021]

  10. INSTALL FRONT FENDER FRONT SPLASH SHIELD LH (for Gasoline Model)

    Refer to PROCEDURE - Step 101 [11/2018 - 08/2020] , or refer to PROCEDURE - Step 101 [08/2020 - 12/2021]

  11. INSTALL FRONT FENDER FRONT SPLASH SHIELD RH (for Gasoline Model)

    Refer to PROCEDURE - Step 102 [11/2018 - 08/2020] , or refer to PROCEDURE - Step 102 [08/2020 - 12/2021]

  12. INSTALL REAR WHEEL

    Refer to INSTALLATION [11/2018 - ]

  13. INSPECT AND ADJUST REAR WHEEL ALIGNMENT

    Refer to ADJUSTMENT [11/2018 - 08/2020] , or refer to ADJUSTMENT [08/2020 - 12/2021]

  14. PERFORM INITIALIZATION

    Refer to INITIALIZATION [02/2019 - 10/2019] , or refer to INITIALIZATION [10/2019 - 06/2020] , or refer to INITIALIZATION [06/2020 - 08/2020] , or refer to INITIALIZATION [08/2020 - 12/2021]
