Removal [02/2019 - 12/2021]: Procedure

  1. REMOVE REAR WHEEL

    Refer to REMOVAL [11/2018 - ]

  2. REMOVE LOWER NO. 2 CONTROL ARM COVER (w/ Cover)
    1. Remove the bolt.
      GTY858302Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the clip.
    3. Disengage the 2 claws and guide to remove the lower No. 2 control arm cover from the rear No. 2 suspension arm assembly.
  3. REMOVE REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY LH (w/ Height Control Sensor)
    1. for LH Side:

      Refer to REMOVAL [02/2019 - 12/2021]

  4. REMOVE REAR STABILIZER LINK ASSEMBLY

    See step  14 [02/2019 - 08/2020], or see step  14 [08/2020 - ]

  5. REMOVE REAR COIL SPRING

    See step  5

  6. REMOVE REAR LOWER COIL SPRING INSULATOR

    See step  7

  7. REMOVE REAR NO. 2 SUSPENSION ARM ASSEMBLY

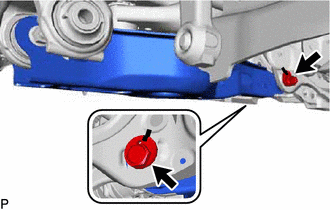

    1. Remove the nut, No. 2 camber adjust cam, rear suspension toe adjust cam sub-assembly and rear No. 2 suspension arm assembly.
      NOTE:

      Hold the rear suspension toe adjust cam sub-assembly while rotating the nut.

      GTY858330Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE REAR NO. 1 SUSPENSION ARM ASSEMBLY

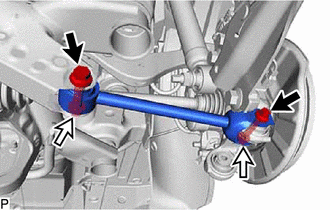

    1. Remove the 2 bolts, 2 nuts and rear No. 1 suspension arm assembly from the rear axle carrier sub-assembly and rear suspension member sub-assembly.
      NOTE:

      Because the nut has its own stopper, do not turn the nut. Loosen the bolt with the nut secured.

      GTY858292Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
