ECM Communication Stop Mode [11/2018 - 12/2021]: Procedure

  1. CHECK FOR OPEN IN CAN BUS WIRE (ECM MAIN WIRE)
    1. Disconnect the cable from the negative (-) battery terminal.
    2. Disconnect the ECM connector.

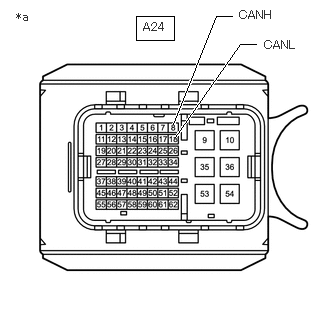

      GTY839405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to ECM)
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A24-8 (CANH) - A24-18 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN WIRE OR CONNECTOR

    Result:

    OK

    See step  2

  2. CHECK HARNESS AND CONNECTOR (POWER SOURCE CIRCUIT)
    1. Measure the resistance according to the value(s) in the table below.

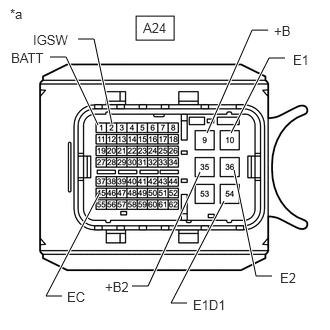

      GTY839387Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to ECM)

      Standard Resistance

      Tester Connection Condition Specified Condition
      A24-45 (EC) - Body ground Cable disconnected from negative (-) battery terminal Below 1 Ω
      A24-10 (E1) - Body ground Cable disconnected from negative (-) battery terminal Below 1 Ω
      A24-36 (E2) - Body ground Cable disconnected from negative (-) battery terminal Below 1 Ω
      A24-54 (E1D1) - Body ground Cable disconnected from negative (-) battery terminal Below 1 Ω
    2. Reconnect the cable to the negative (-) battery terminal.
      NOTE:

      When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

      Refer to INITIALIZATION [11/2018 - 02/2019] , or refer to INITIALIZATION [02/2019 - 10/2019] , or refer to INITIALIZATION [10/2019 - 06/2020] , or refer to INITIALIZATION [06/2020 - 08/2020] , or refer to INITIALIZATION [08/2020 - 12/2021]

    3. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Condition Specified Condition
      A24-1 (BATT) - Body ground Always 11 to 14 V
      A24-9 (+B) - Body ground Terminal A24-15 (MREL) connected to body ground 11 to 14 V
      A24-35 (+B2) - Body ground Terminal A24-15 (MREL) connected to body ground 11 to 14 V
      A24-2 (IGSW) - Body ground Ignition switch ON 11 to 14 V
      Ignition switch off Below 1 V

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE ECM

    Refer to REMOVAL [11/2018 - 08/2020] , or refer to REMOVAL [08/2020 - 10/2022]

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR
