Components [11/2018 - 12/2021]

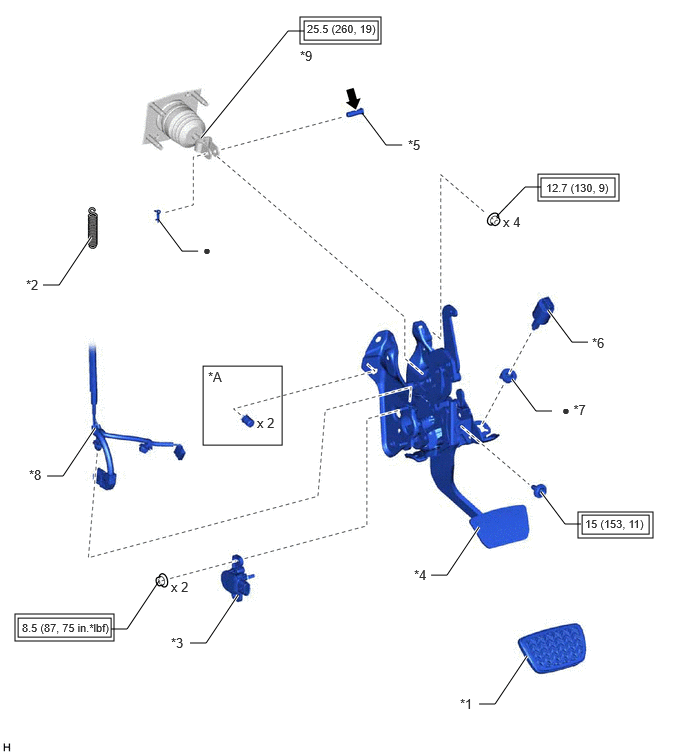

Fig 1: Brake Pedal (W/o Vacuum Brake Booster) Replacement Components With Torque Specifications [11/2018 - 12/2021]
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | w/ clip | - | - |
| *1 | BRAKE PEDAL PAD | *2 | BRAKE PEDAL RETURN SPRING |
| *3 | BRAKE PEDAL STROKE SENSOR ASSEMBLY | *4 | BRAKE PEDAL SUPPORT ASSEMBLY |
| *5 | PUSH ROD PIN | *6 | STOP LIGHT SWITCH ASSEMBLY |
| *7 | STOP LIGHT SWITCH MOUNTING ADJUSTER | *8 | WIRE HARNESS |
| *9 | LOCK NUT | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | • | Non-reusable part | |
| Lithium soap base glycol grease | - | - |
