Components [11/2018 - ]

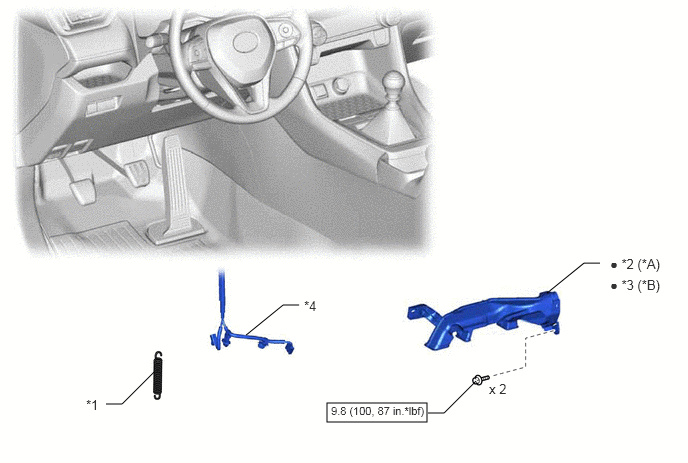

Fig 1: Brake Booster (W/ Vacuum Brake Booster) Replacement Components With Torque Specifications (1 Of 4)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for TMC Made | *B | for TMMC Made |
| *1 | BRAKE PEDAL RETURN SPRING | *2 | NO. 1 AIR DUCT |
| *3 | NO. 2 AIR DUCT SUB-ASSEMBLY | *4 | WIRE HARNESS |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |
Fig 2: Brake Booster (W/ Vacuum Brake Booster) Replacement Components With Torque Specifications (2 Of 4)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | BATTERY CLAMP SUB-ASSEMBLY | *2 | ENGINE ROOM MAIN WIRE |
| *3 | NO. 2 ENGINE WIRE | *4 | NO. 2 BATTERY CLAMP |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |

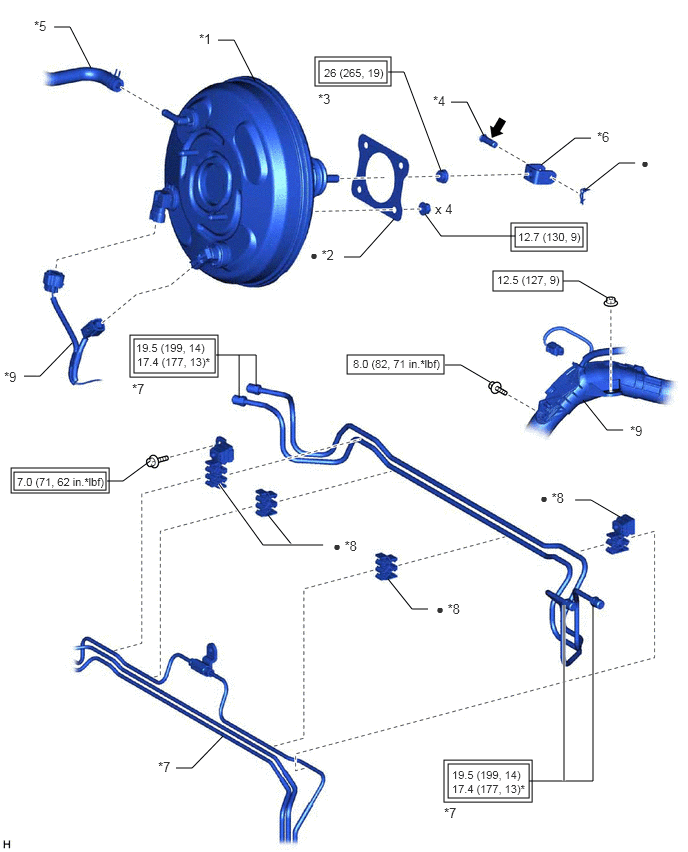

Fig 3: Brake Booster (W/ Vacuum Brake Booster) Replacement Components With Torque Specifications (3 Of 4)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | BRAKE BOOSTER ASSEMBLY | *2 | BRAKE BOOSTER GASKET |
| *3 | CHECK VALVE TO CONNECTOR TUBE HOSE | *4 | LOCK NUT |
| *5 | PUSH ROD PIN | *6 | BRAKE MASTER CYLINDER PUSH ROD CLEVIS |
| *7 | BRAKE LINE | *8 | BRAKE TUBE CLAMP |
| *9 | WIRE HARNESS | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | N.m (kgf/cm, ft.lbf): Specified torque | ||
| * | For use with a union nut wrench | • | Non-reusable part |
| Lithium soap base glycol grease | - | - |

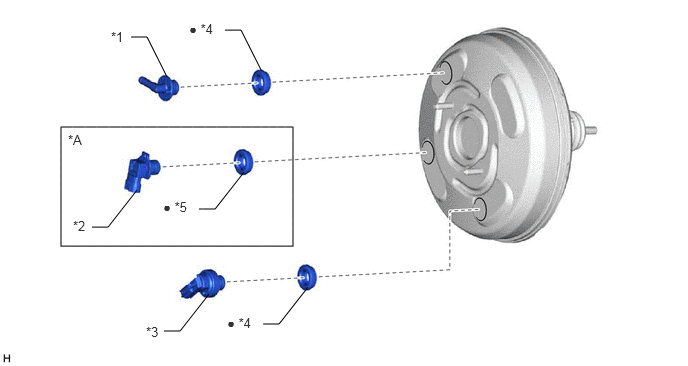

| *A | w/ Stop and Start System | - | - |
| *1 | BRAKE VACUUM CHECK VALVE ASSEMBLY | *2 | VACUUM SENSOR ASSEMBLY |
| *3 | VACUUM WARNING SWITCH ASSEMBLY | *4 | CHECK VALVE GROMMET |
| *5 | VACUUM SENSOR GROMMET | - | - |
| • | Non-reusable part | - | - |
